Industrial USB Hub

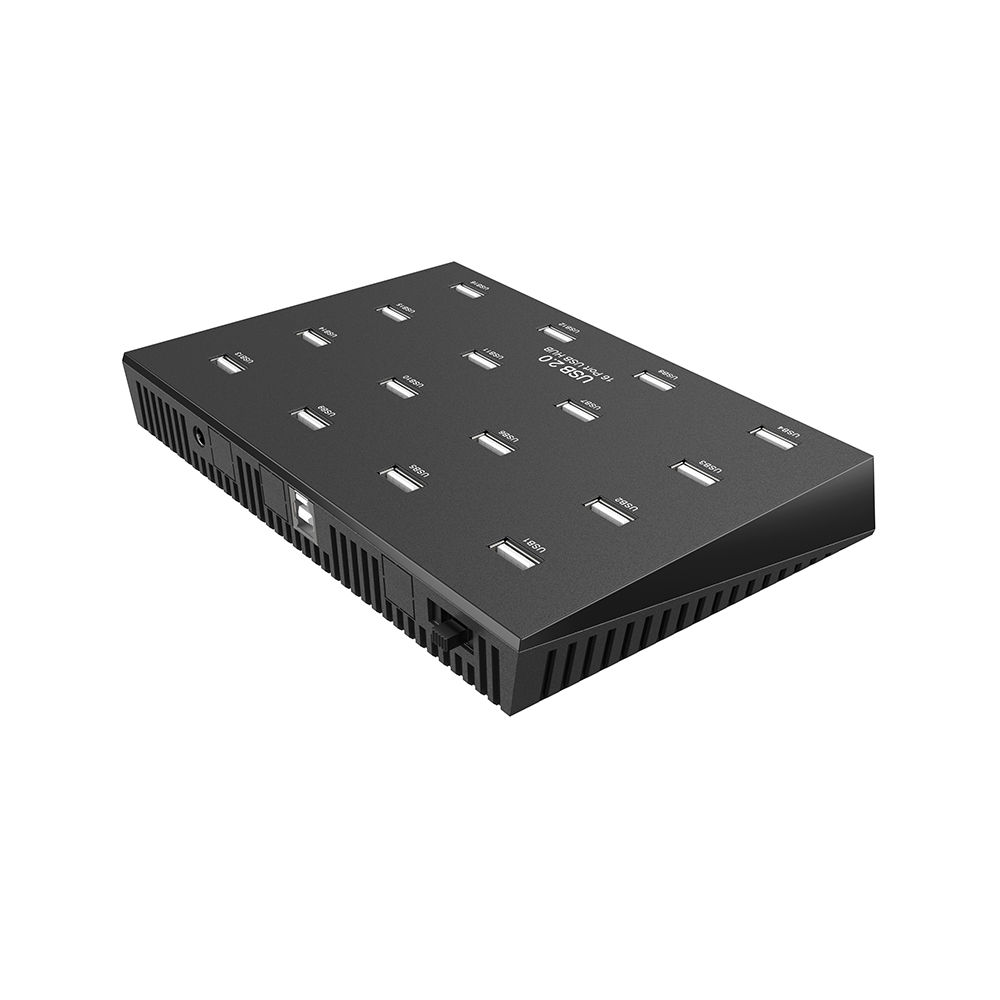

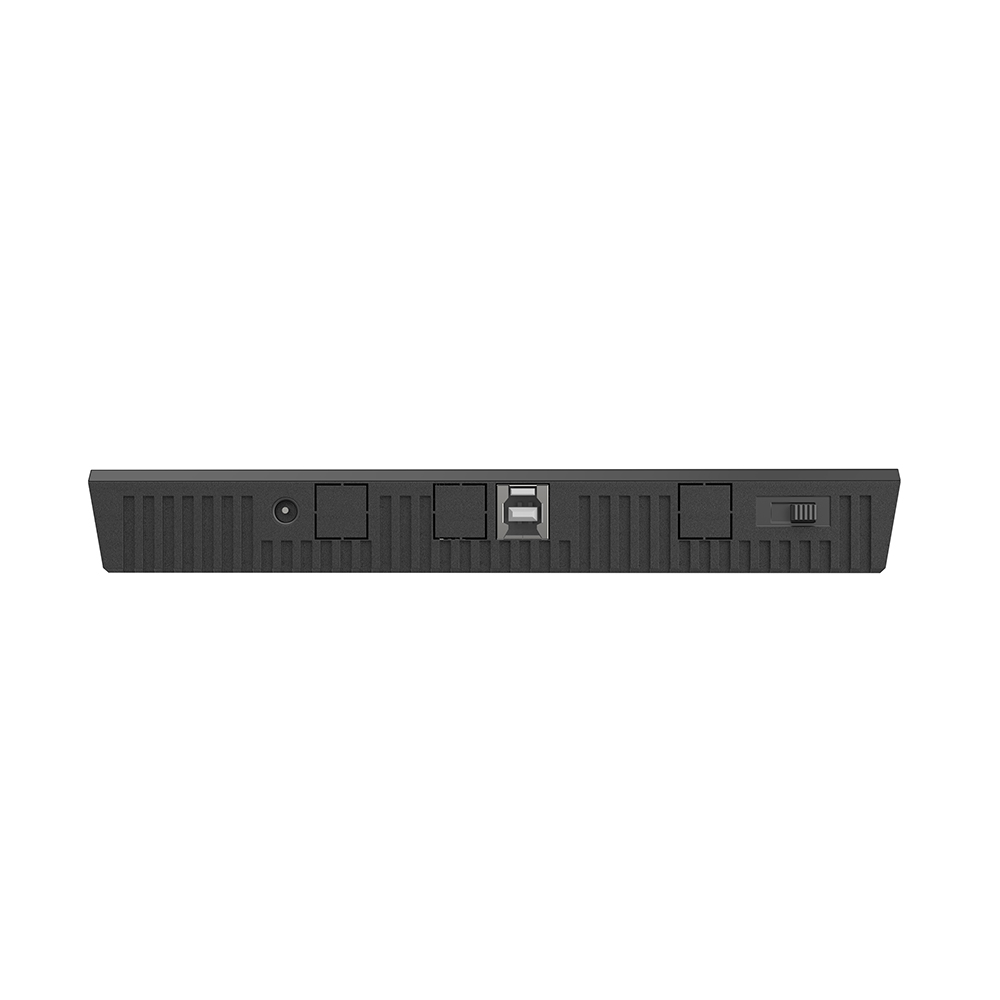

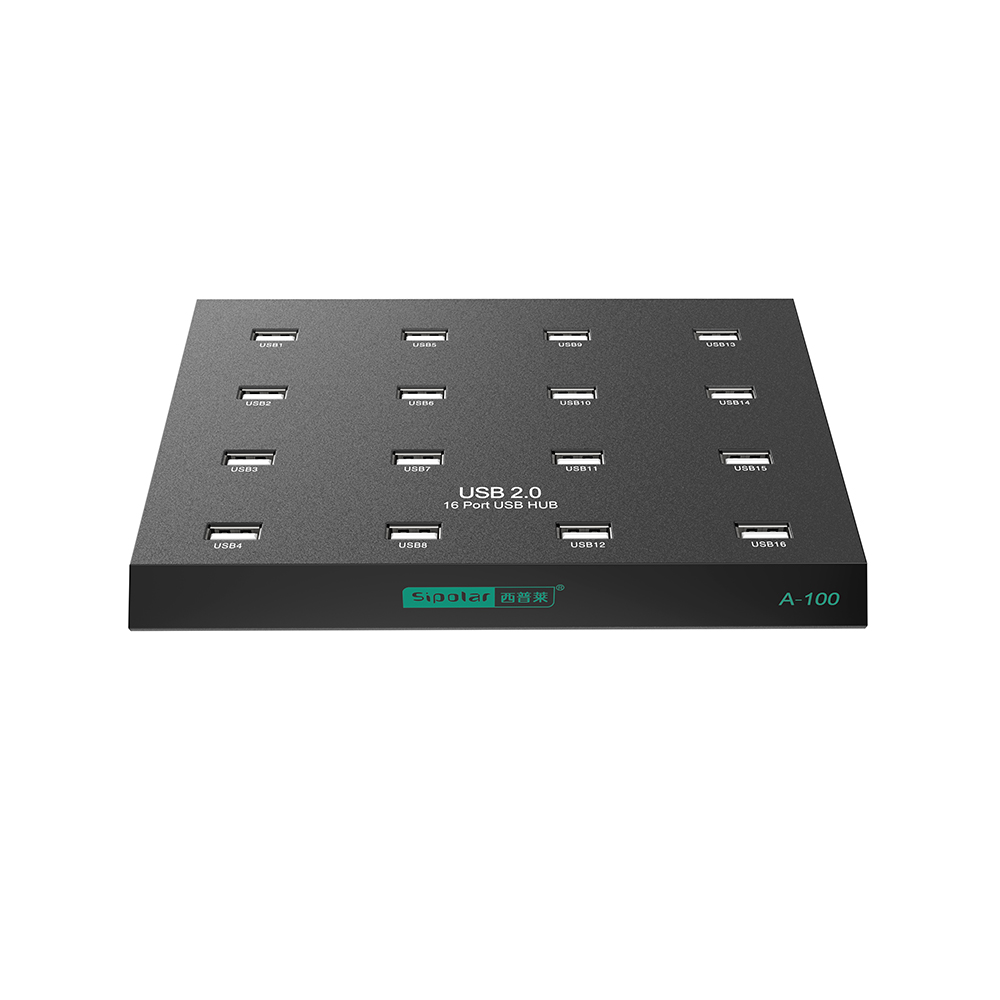

A-100 16-Port USB 2.0 Hub
Model: Sipolar A-100
A-100 16-Port USB 2.0 Hub | 16x USB-A 2.0 | Up to 480Mbps | DC 5V/3A
- 16 x USB-A 2.0 for connected devices
- 1 x USB-B 2.0 host connection
- Up to 480Mbps data transfer performance
- Default power adapter: DC 5V/3A
- Output details: per-port rated voltage:5.0V+/-5% per-port maximum output current:300mA
- Construction and mounting: ABS+PC housing; Desktop installation with anti-slip pads
Product Description
The Sipolar A-100 is a 16-port USB 2.0 hub for equipment integration and test benches. It provides 16 x USB-A 2.0 device connections and a 1 x USB-B 2.0 host connection. The specified USB data rate is up to 480 Mbps.
DC 5V/3A power details and ABS+PC housing; Desktop installation with anti-slip pads. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-100 |
| Product Type | Industrial USB Hub |
| Product Name | A-100 16-Port USB 2.0 Hub |
| USB Specification | USB 2.0 |
| Downstream Port Count | 16 |
| Downstream Port Type | 16 x USB-A 2.0 |
| Upstream Port | 1 x USB-B 2.0 |
| Transfer Rate | Up to 480Mbps |
| LED Indicators | data connection indicator(green)/power indicator(red) |
Power & Electrical
| Power Interface | DC 5.5 x 2..1mm |
| Default Power Adapter | DC 5V/3A |
| Output Electrical Characteristics | per-port rated voltage:5.0V+/-5% per-port maximum output current:300mA |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :188.8 x 127.6 x 27.3mm |
| Mechanical Structure | Housing: ABS+PC; Mounting: desktop; anti-slip pads |
| Net Weight | 260 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
| Driver Required | Windows installs the required USB hub driver automatically, as described in the user manual. |
Package Contents
- A-100 product unit - 1
- 5 V / 3 A power adapter and power cord - 1 each
- USB 2.0 cable - 1
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the A-100 designed for?
The A-100 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
