Desktop USB Hub

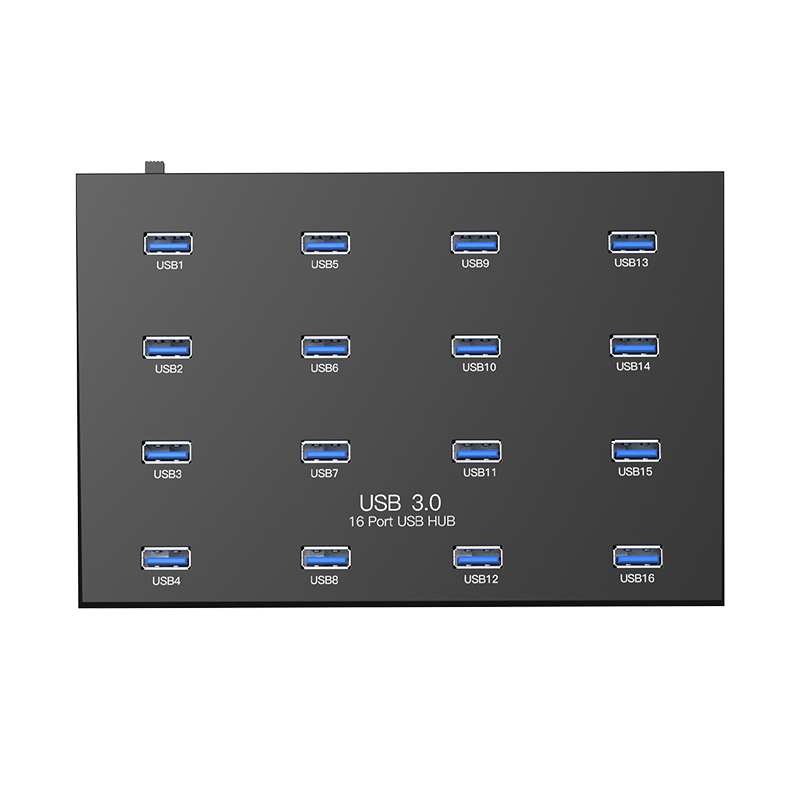

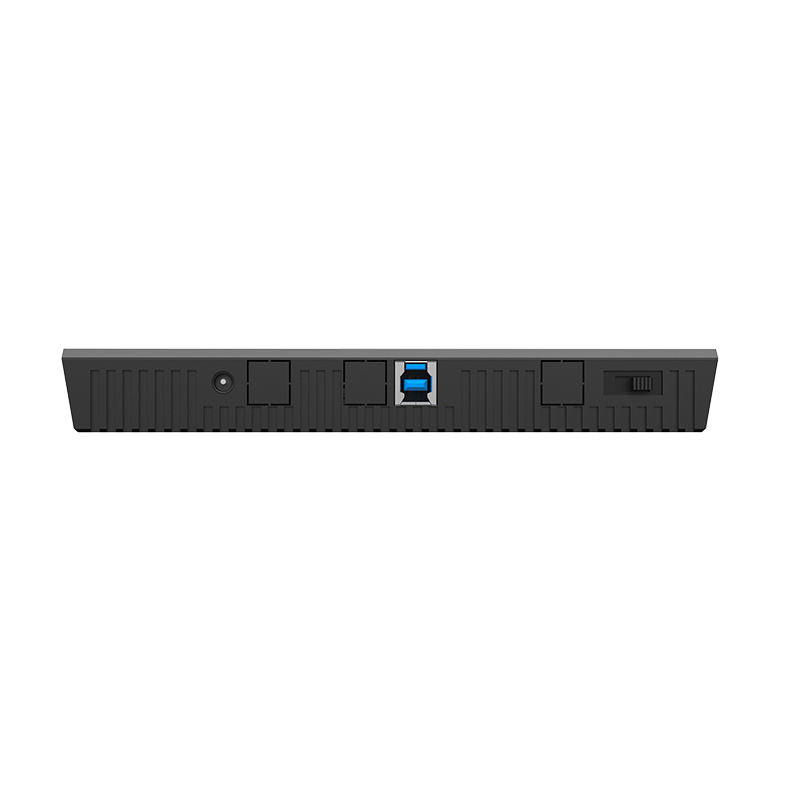

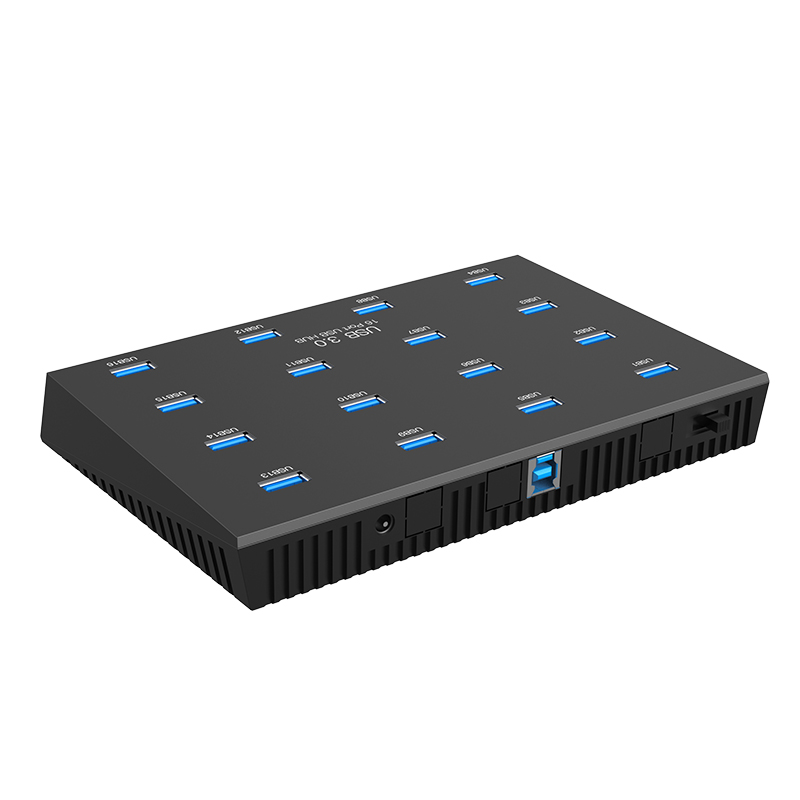

A-163 16-Port USB 3.0 Hub
Model: Sipolar A-163
16-Port USB 3.0 Expansion Hub | USB-B Upstream | 5Gbps | ABS+PC Desktop Housing | 5V 5A Power
- 16 USB 3.0 downstream Type-A ports with up to 5Gbps transfer rate
- USB-B 3.0 upstream connection for host systems
- Default DC 5V 5A power configuration
- ABS+PC desktop housing with anti-slip pads
- BC1.2, Apple and Samsung charging protocol support listed in the specification
- Output over-current and short-circuit protection
Product Description
The Sipolar A-163 is a 16-port USB 3.0 hub for equipment integration and test benches. It provides 16 x USB-A 3.0 device connections and a 1 x USB-B 3.0 host connection. The specified USB data rate is up to 5 Gbps. Check host compatibility and peripheral power needs for your complete setup.
Its ABS+PC desktop enclosure, status indicators and 5V 5A default power configuration make it a practical option when teams need a high-port-count hub without rack or panel installation.
Technical Specifications
Product Information
| Model | Sipolar A-163 |
| Product Type | Desktop USB Hub |
| USB Specification | USB 3.0 |
| Downstream Port Count | 16 |
| Downstream Port Type | 16 x USB-A 3.0 |
| Upstream Port | 1 x USB-B 3.0 |
| Transfer Rate | Up to 5Gbps |
| LED Indicators | Green data connection indicator / red power indicator |
Power & Electrical
| Power Interface | DC 5.5 x 2.1mm |
| Default Power Adapter | DC 5V / 5A |
| Per-Port Output | 5V / 500mA max |
| Charging Protocol | BC1.2, Apple, Samsung |
| Protection | Output over-current protection; output short-circuit protection |
Physical
| Dimensions (L x W x H) | 188.8 x 127.6 x 27.3 mm |
| Housing Material | ABS+PC |
| Mounting Style | Desktop; anti-slip pads on bottom |
| Color | Black |
| Net Weight | 260 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | Below 2 km |
Compatibility
| Supported OS | Windows 7/8/10/11, macOS 10.12 or later, Linux / Ubuntu 16.04 or later |
| Driver Required | Windows installs the required USB hub driver automatically, as described in the user manual. |
Package Contents
- A-163 USB 3.0 Hub - 1
- 5 V / 5 A power adapter and power cord - 1 each
- USB 3.0 cable - 1
- User manual - 1
Frequently Asked Questions
What is the main use case for the A-163?
The A-163 is intended for desktop or bench installations that require sixteen USB 3.0 downstream ports for data devices, peripherals or test equipment.
Does it support USB charging protocols?
The specification lists BC1.2, Apple and Samsung charging protocol support.
What material is the enclosure?
The specification lists an ABS+PC housing with anti-slip pads for desktop placement.
Is the input voltage range confirmed?
The current parameter sheet confirms a DC 5V 5A default power configuration, but the full input voltage range should be reviewed before final publication.
Warranty
3-year limited warranty
