Industrial USB Hub

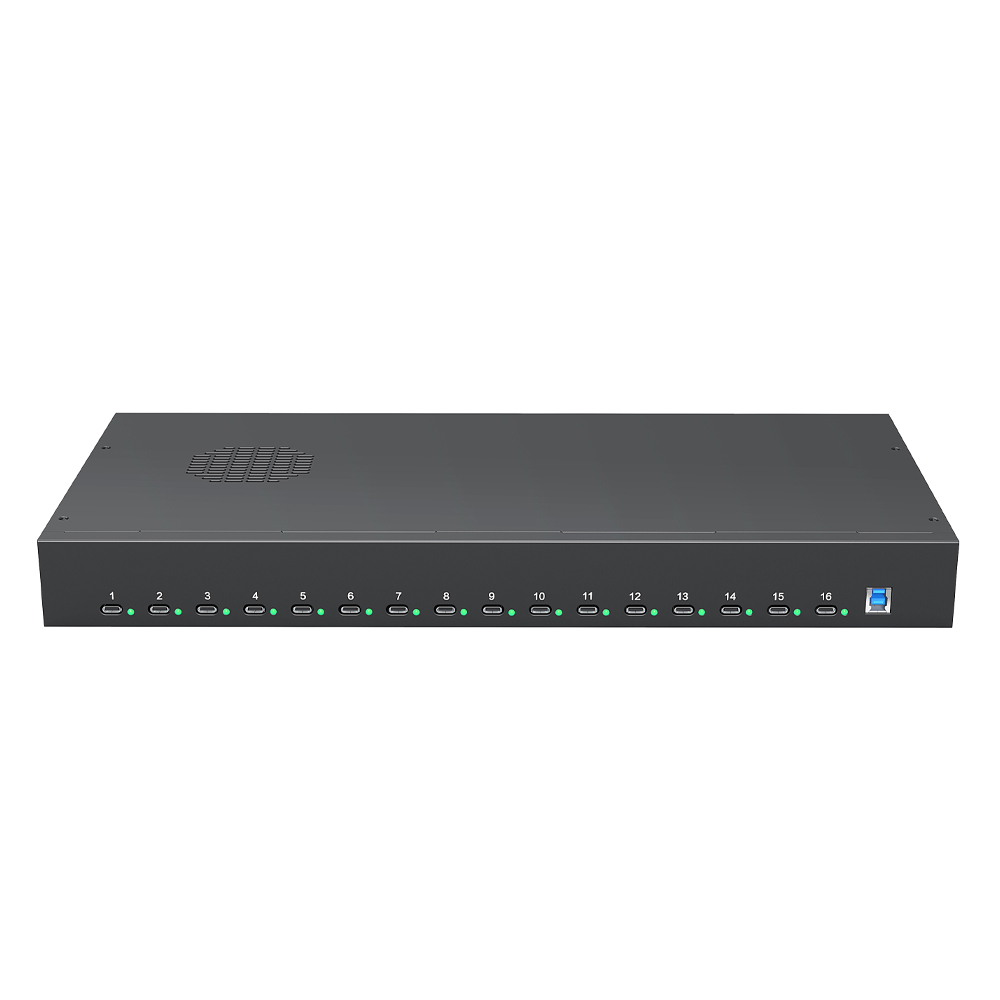

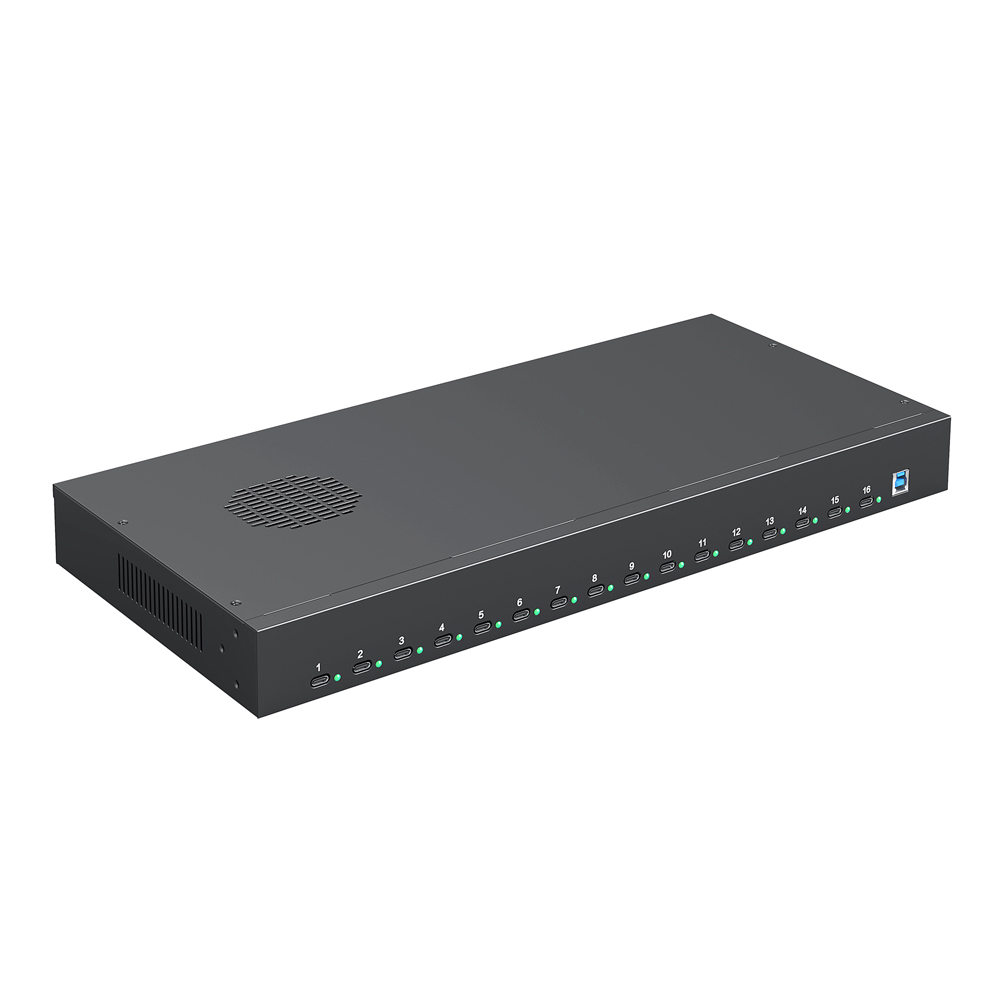

A-165CP 16-Port 30W USB-C PD Charging Hub
Model: Sipolar A-165CP
A-165CP 16-Port 30W USB-C PD Charging Hub | Up to 5Gbps | DC 24V/25A | Contact us for configuration details
- Up to 5Gbps data transfer performance
- DC 24V/25A input power details
- over-current protection; short-circuit protection
- Configuration details should be confirmed before final procurement
Product Description
The Sipolar A-165CP is a 16-port 30W USB-C PD charging hub for equipment integration and test benches. The specified USB data rate is up to 5 Gbps. Check host compatibility and peripheral power needs for your complete setup.
DC 24V/25A power details and Cold-rolled steel housing; Mounting flanges. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-165CP |
| Product Type | Industrial USB Hub |
| Product Name | A-165CP 16-Port 30W USB-C PD Charging Hub |
| USB Specification | USB 3.0 |
| Downstream Port Count | 16 |
| Transfer Rate | Up to 5Gbps |
| LED Indicators | USB port indicator: green when powered, red while charging, green when fully charged |
Power & Electrical
| AC Input | Input voltage:110VAC/220VACselectable by switch Frequency:50/60Hz Input current:100-120VAC/12A,200-240VAC/7.5A |
| Input Electrical Characteristics | DC 24V/25A |
| Output Interface | upstream USB-B 3.0 downstream USB-C 3.1 x 16 |
| USB-C Output Electrical Characteristics | 1. PD3.0 5V/3A,9V/3A,12V/2.5A(30W) 2. BC1.2 DCP(5V/1.5A) |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :440 x 204 x 45 mm |
| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount |

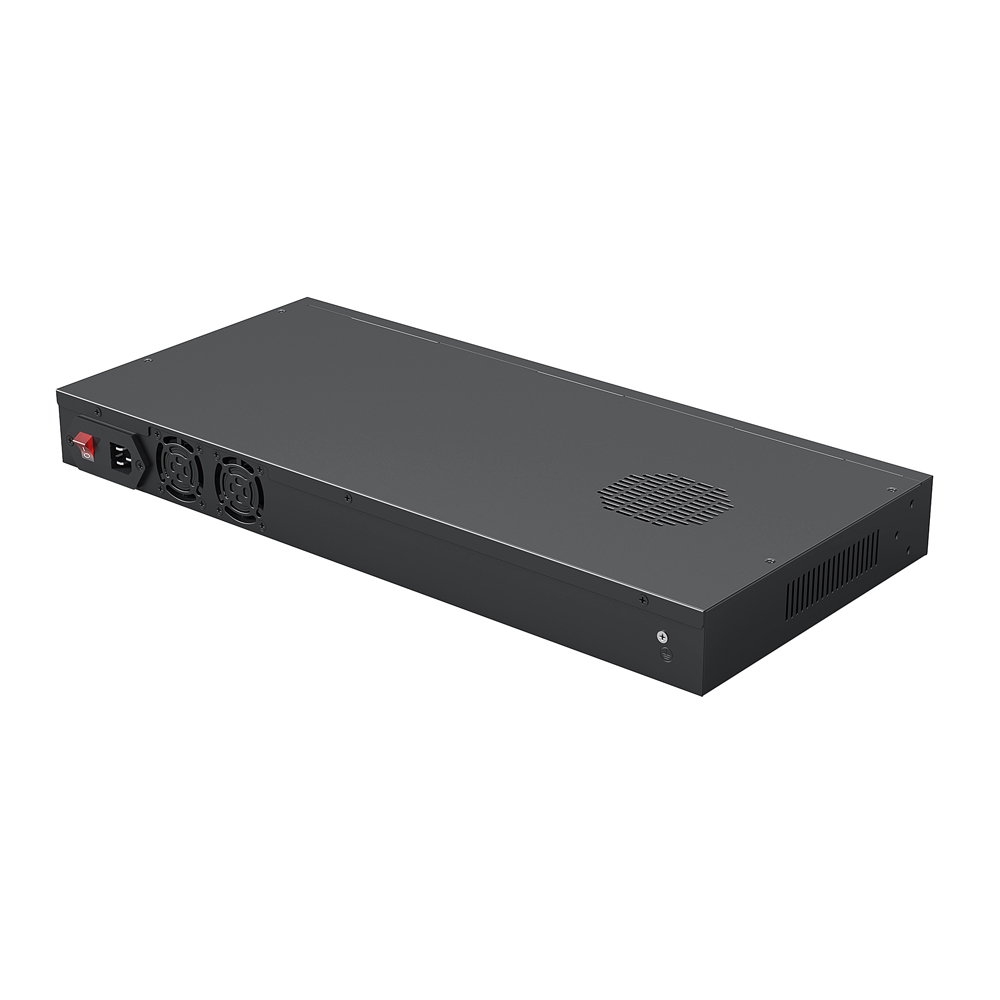

| Cooling Method | cooling fan+ventilation openings |
| Net Weight | 2747 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 20% to RH 90% |
| Storage Temperature | -30°C to 80°C |
| Storage Humidity | R10% - RH95% |
Compatibility
| Supported OS | USB-enabled operating systems, as stated in the user manual. |
Additional Specifications
| Type-C | 1. PD3.0 5V/3A,9V/3A,12V/2.5A(30W) 2. BC1.2 DCP(5V/1.5A) |
Package Contents
- A-165CP product unit - 1
- Power cord - 1 (power supply built into the hub)
- USB 3.0 cable - 1
- Mounting brackets - 1 pair
- User manual - 1
Frequently Asked Questions
What type of project is the A-165CP designed for?
The A-165CP is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Are all accessories confirmed?
Confirmed accessories and quantities are listed under Package Contents. Optional items are marked separately.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
