Industrial USB Hub

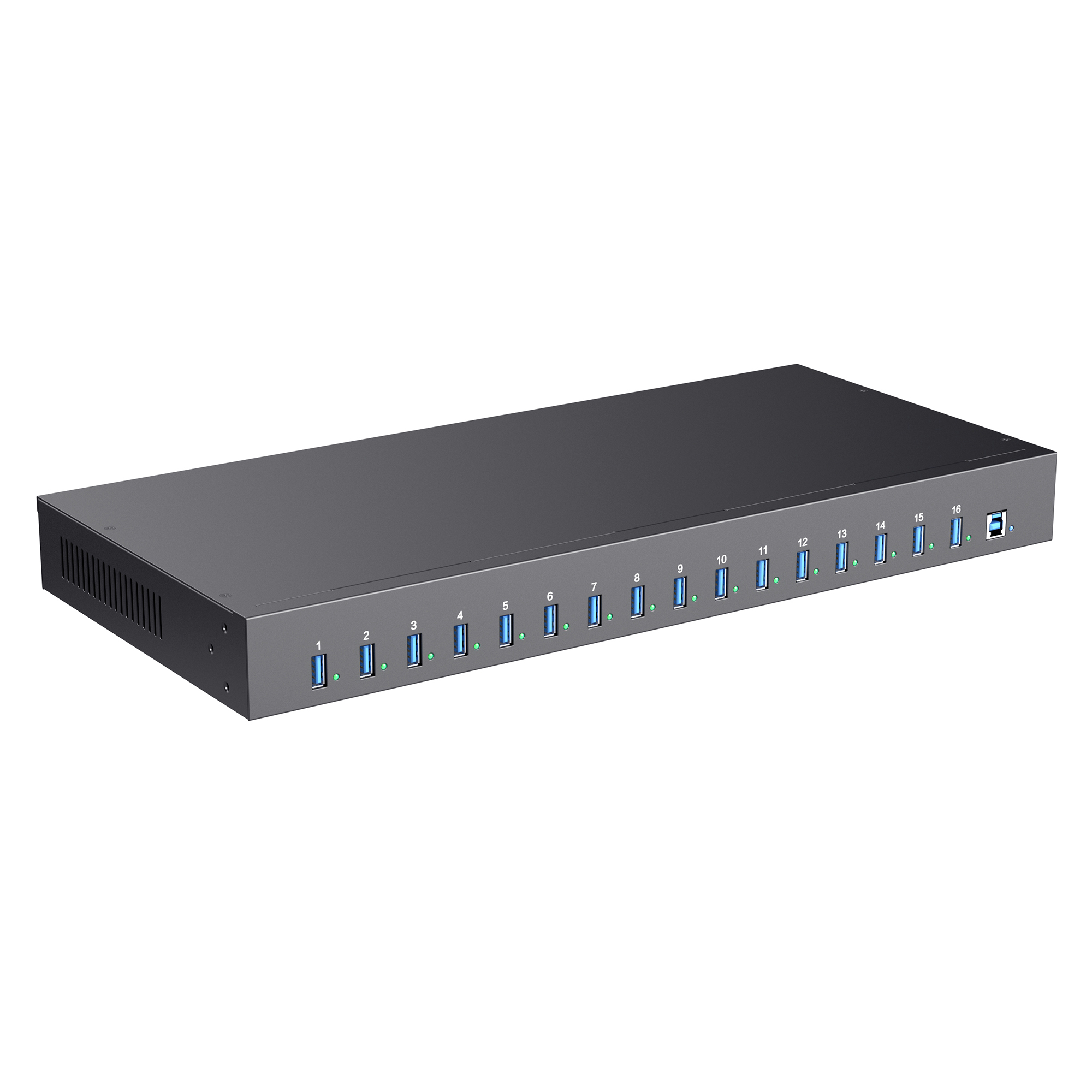

A-168 16-Port USB 3.0 Charging Hub
Model: Sipolar A-168
Confirm the operating temperature range and supplied USB cable before ordering. Contact Sipolar.
A-168 16-Port USB 3.0 Charging Hub | Up to 5.0Gbps | DC 5V/40A | Contact us for configuration details
- Up to 5.0Gbps data transfer performance
- DC 5V/40A input power details
- Output details: 5.0 V +/- 5%; rated current 2.1 A per port; total output below 200 W
- over-current protection; short-circuit protection; backfeed prevention
Product Description
The Sipolar A-168 is a 16-port USB 3.0 charging hub for equipment integration and test benches. The specified USB data rate is up to 5.0 Gbps. Check host compatibility and peripheral power needs for your complete setup.

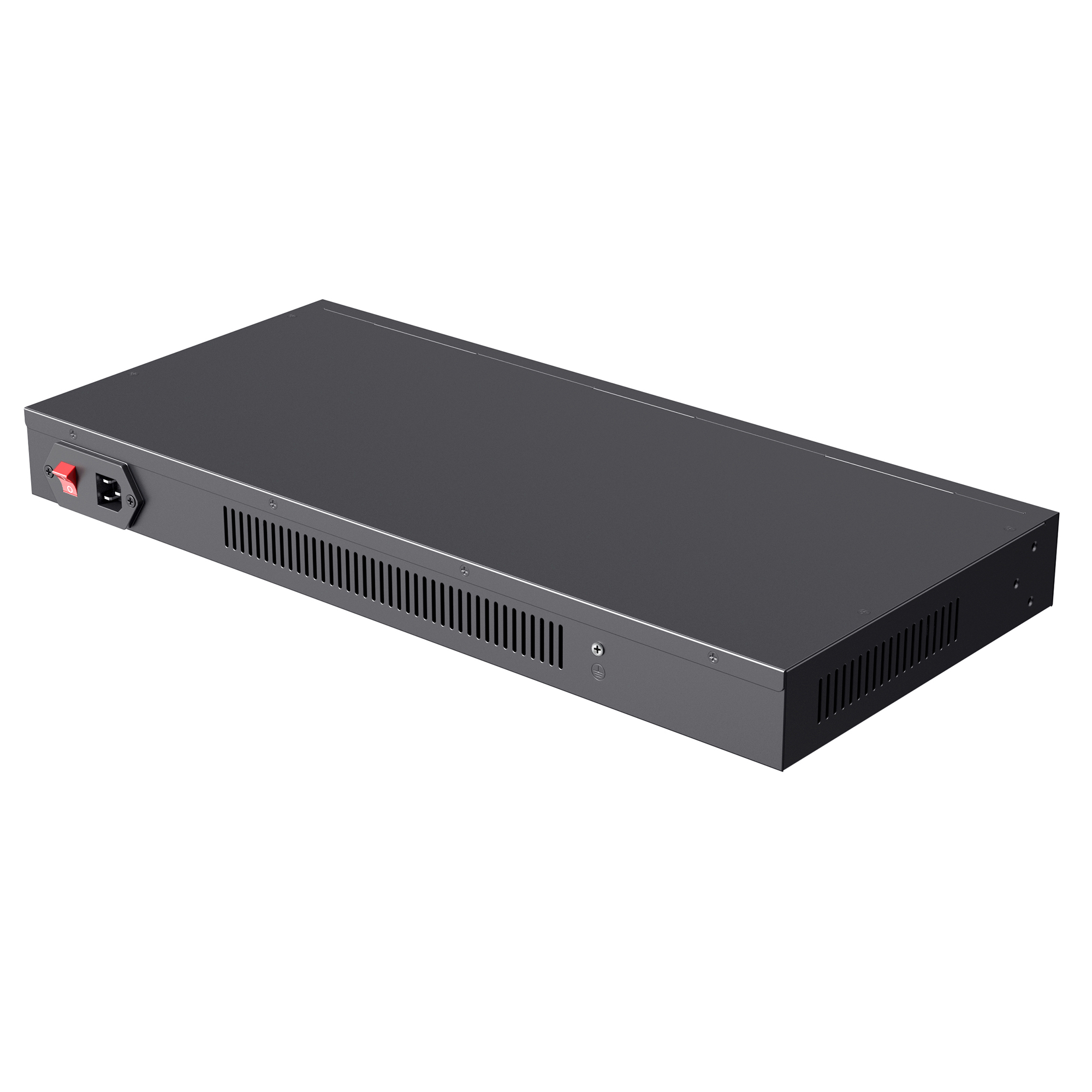

DC 5V/40A power details and Cold-rolled steel housing; Mounting flanges. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-168 |
| Product Type | Industrial USB Hub |
| Product Name | A-168 16-Port USB 3.0 Charging Hub |
| USB Specification | USB 3.0 |
| Downstream Port Count | 16 |
| Transfer Rate | Up to 5.0Gbps |

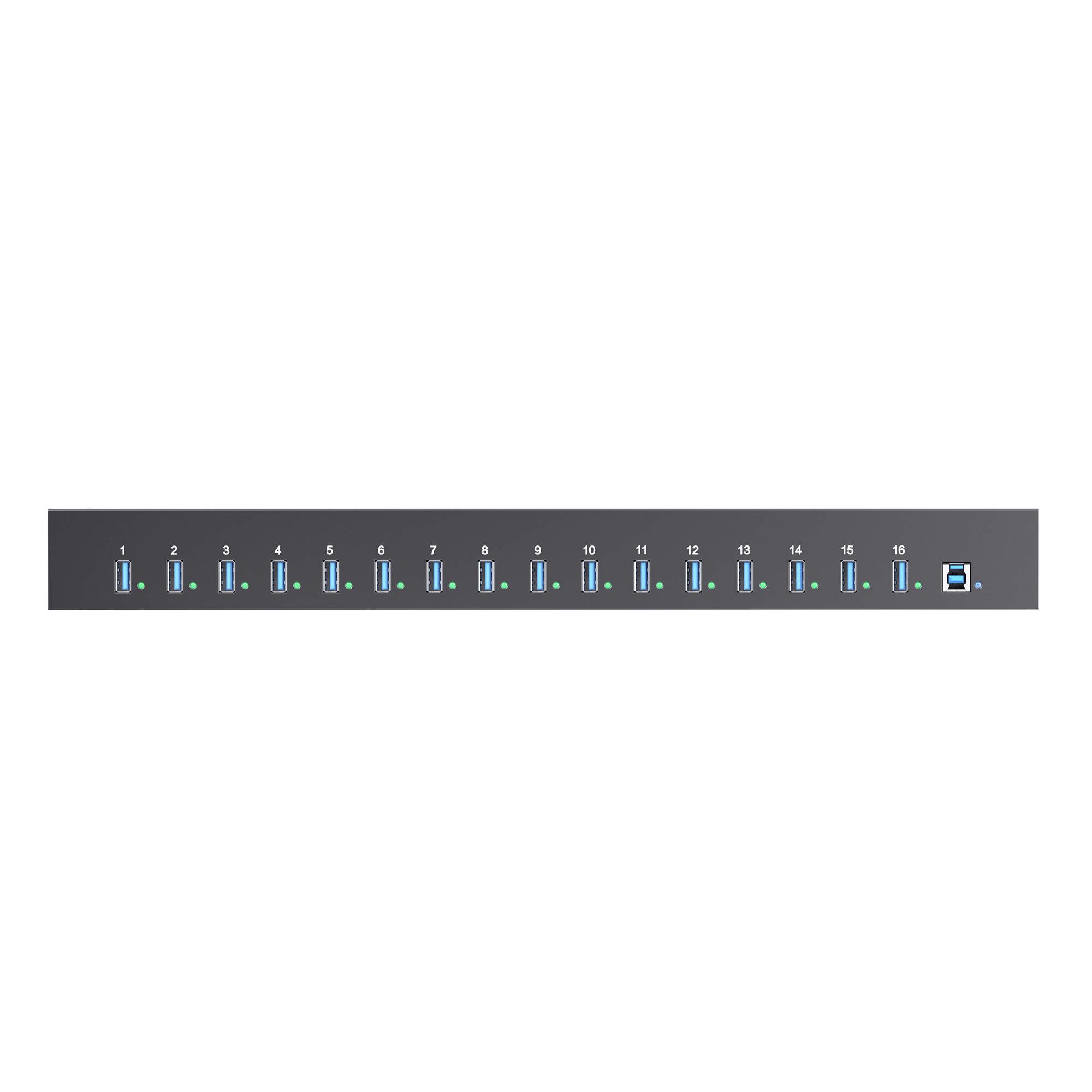

| LED Indicators | USB port indicator: green when powered, red while charging, green when fully charged |
Power & Electrical
| AC Input | Input voltage:110VAC/220VACselectable by switch Frequency:50/60Hz Input current:100-120VAC/4.0A,200-240VAC/2.0A |
| Input Electrical Characteristics | DC 5V/40A |
| Output Interface | upstream USB-B 3.0 downstream USB-A 3.0 x 16 |
| Output Electrical Characteristics | Per-port rated voltage: 5.0V+/-5% Per-port rated current: 2.1A Total output power<200W |
| Protection | over-current protection; short-circuit protection; backfeed prevention |
| Power Switch Function | Power Switch |
Physical
| Dimensions (L x W x H) | :440 x 204 x 45 mm |
| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount |
| Net Weight | 2315 g +/- 5 g |
Environmental
| Operating Humidity | RH 10% to RH 85% |
| Operating Altitude | Below 2,000 m |
| Storage Temperature | -30°C to 80°C |
| Storage Humidity | R10% - RH95% |
Compatibility
| Supported OS | USB-enabled operating systems, as stated in the user manual. |
Package Contents
- A-168 product unit - 1
- Power cord - 1 (power supply built into the hub)
- Mounting brackets - 1 pair
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the A-168 designed for?
The A-168 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
