Industrial USB Hub

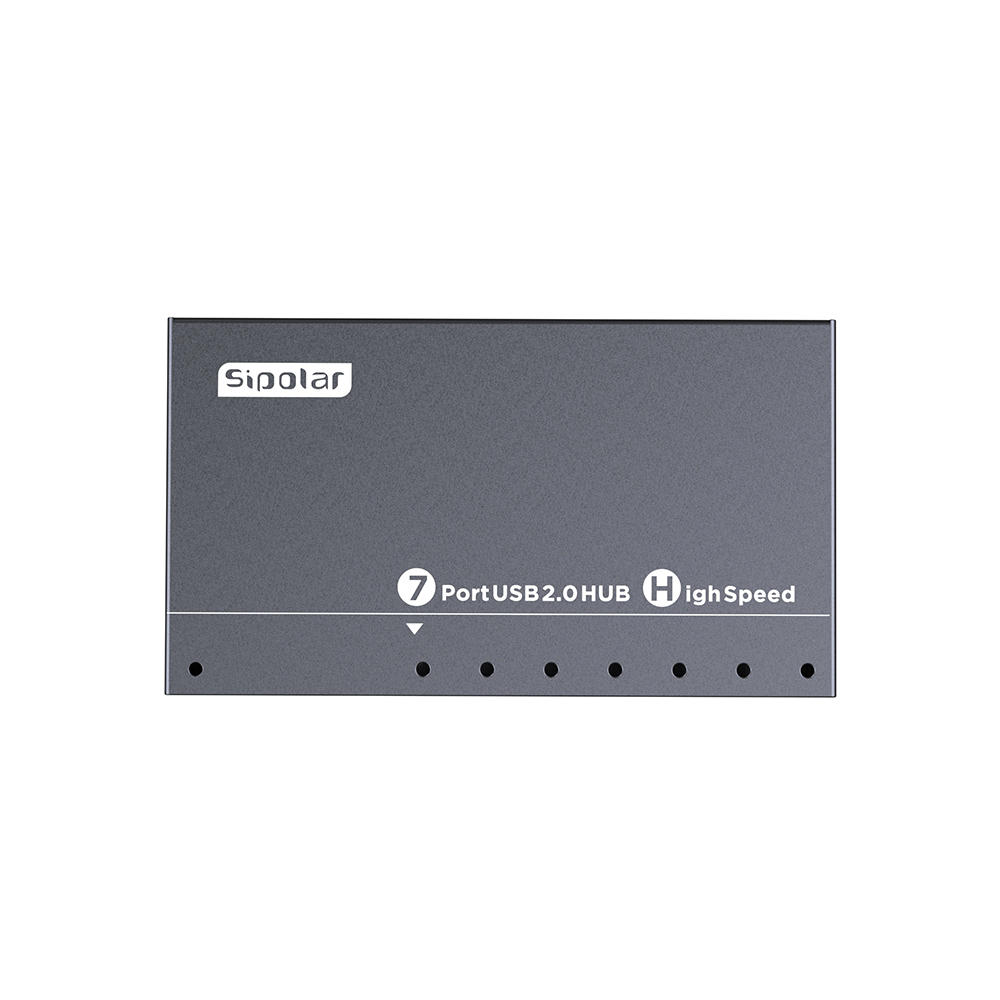

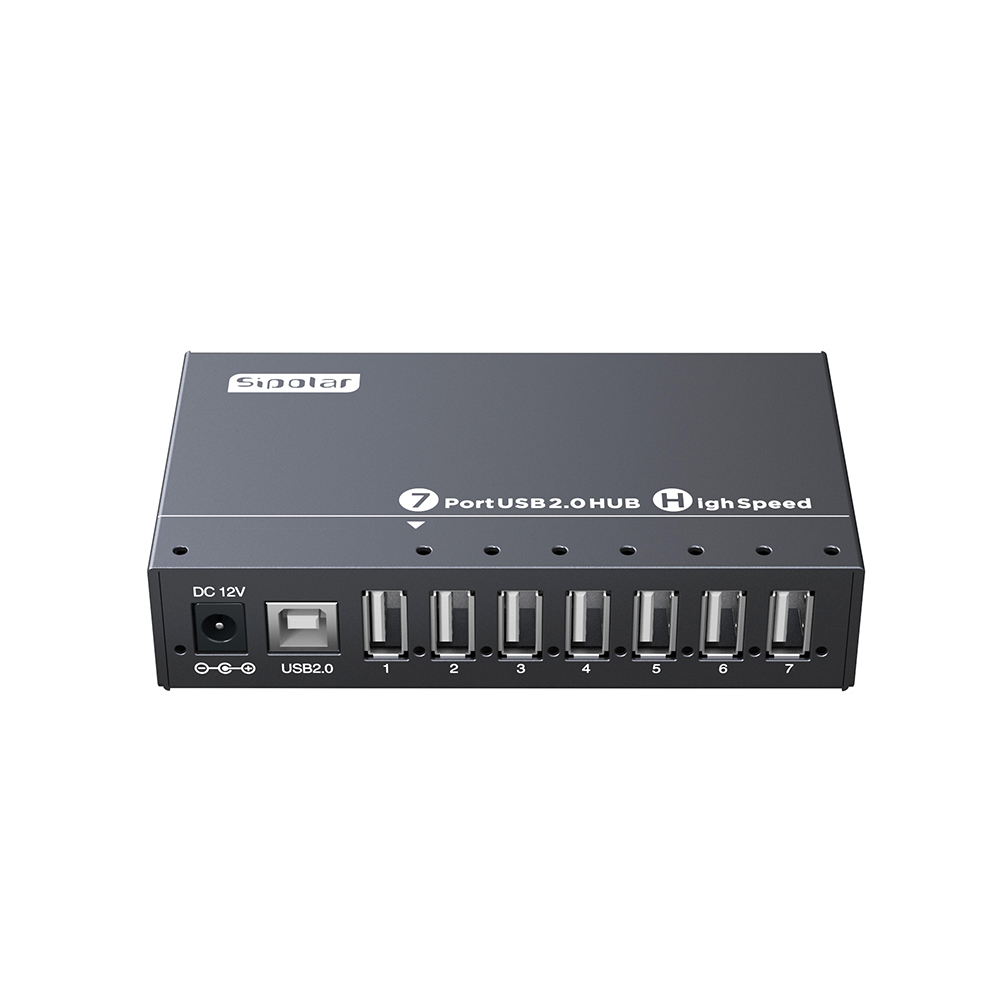

A-172 7-Port USB 2.0 Hub
Model: Sipolar A-172
Confirm the per-port output before ordering. Contact Sipolar.
A-172 7-Port USB 2.0 Hub | 7x USB-A 2.0 | Up to 480Mbps | DC 9-24V(default power adapter12V x 3A)
- 7 x USB-A 2.0 for connected devices
- 1 x USB-B 2.0 host connection
- Up to 480Mbps data transfer performance
- DC 9-24V(default power adapter12V x 3A) input power details
- over-current protection; short-circuit protection
Product Description
The Sipolar A-172 is a 7-port USB 2.0 hub for equipment integration and test benches. It provides 7 x USB-A 2.0 device connections and a 1 x USB-B 2.0 host connection. The specified USB data rate is up to 480 Mbps.
DC 9-24V(default power adapter12V x 3A) power details and Cold-rolled steel housing; Mounting flanges. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-172 |
| Product Type | Industrial USB Hub |
| Product Name | A-172 7-Port USB 2.0 Hub |
| USB Specification | USB 2.0 |
| Downstream Port Count | 7 |
| Downstream Port Type | 7 x USB-A 2.0 |
| Upstream Port | 1 x USB-B 2.0 |
| Transfer Rate | Up to 480Mbps |
| LED Indicators | data connection indicator(blue)/power indicator(red) |
Power & Electrical
| Power Interface | DC 5.5 x 2.1mm |
| Input Electrical Characteristics | DC 9-24V(default power adapter12V x 3A) |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :126.5 x 71 x 28 mm |
| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
Package Contents
- A-172 product unit - 1
- 12 V / 3 A power adapter and power cord - 1 each
- USB data cable - 1
- Mounting brackets - 1 pair
- User manual - 1
Frequently Asked Questions
What type of project is the A-172 designed for?
The A-172 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Are all accessories confirmed?
Confirmed accessories and quantities are listed under Package Contents. Optional items are marked separately.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
