Industrial USB Hub

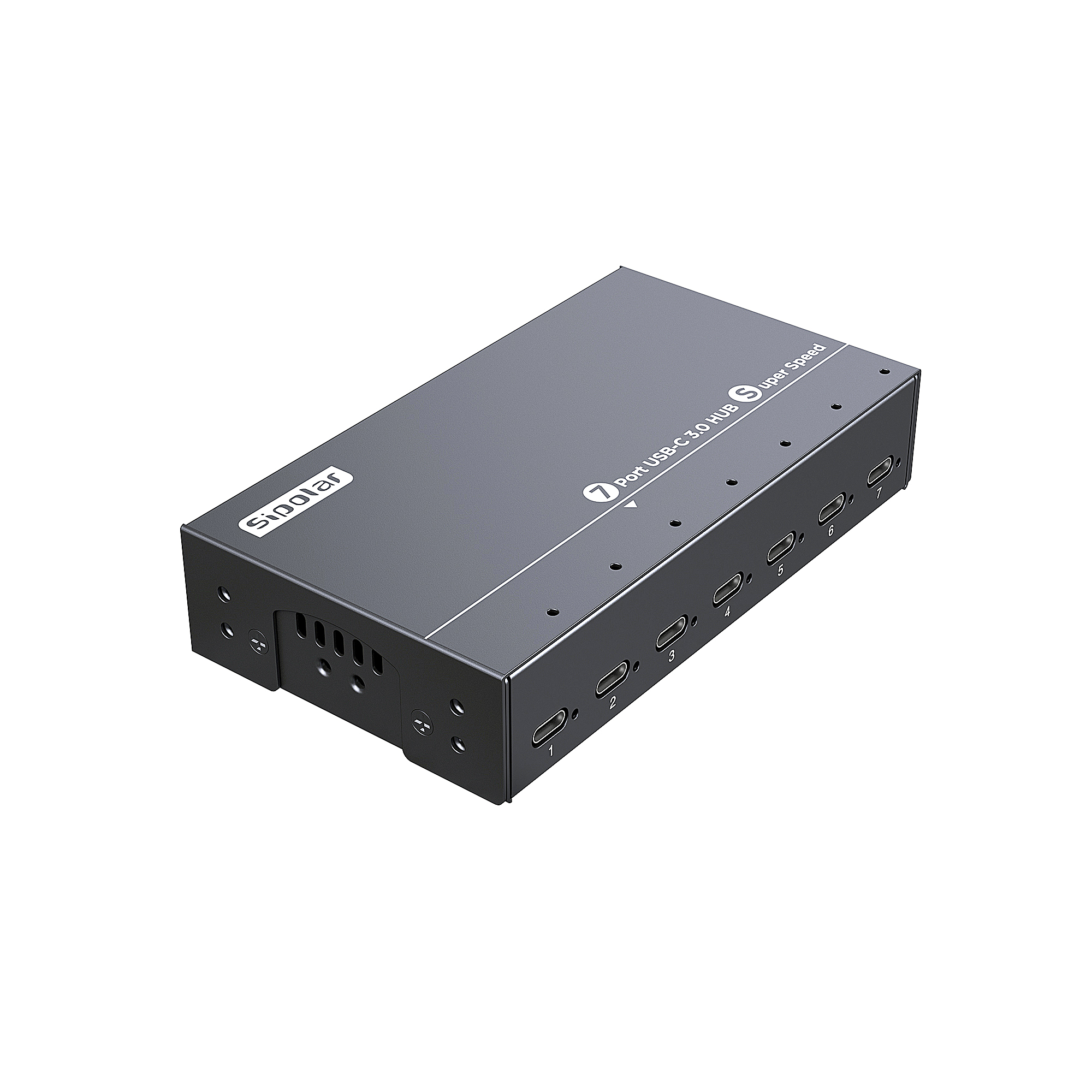

A-173C 7-Port USB-C 3.0 Hub
Model: Sipolar A-173C
Confirm the per-port output and supplied power adapter before ordering. Contact Sipolar.
A-173C 7-Port USB-C 3.0 Hub | 7x USB-C 3.0 | Up to 5.0Gbps

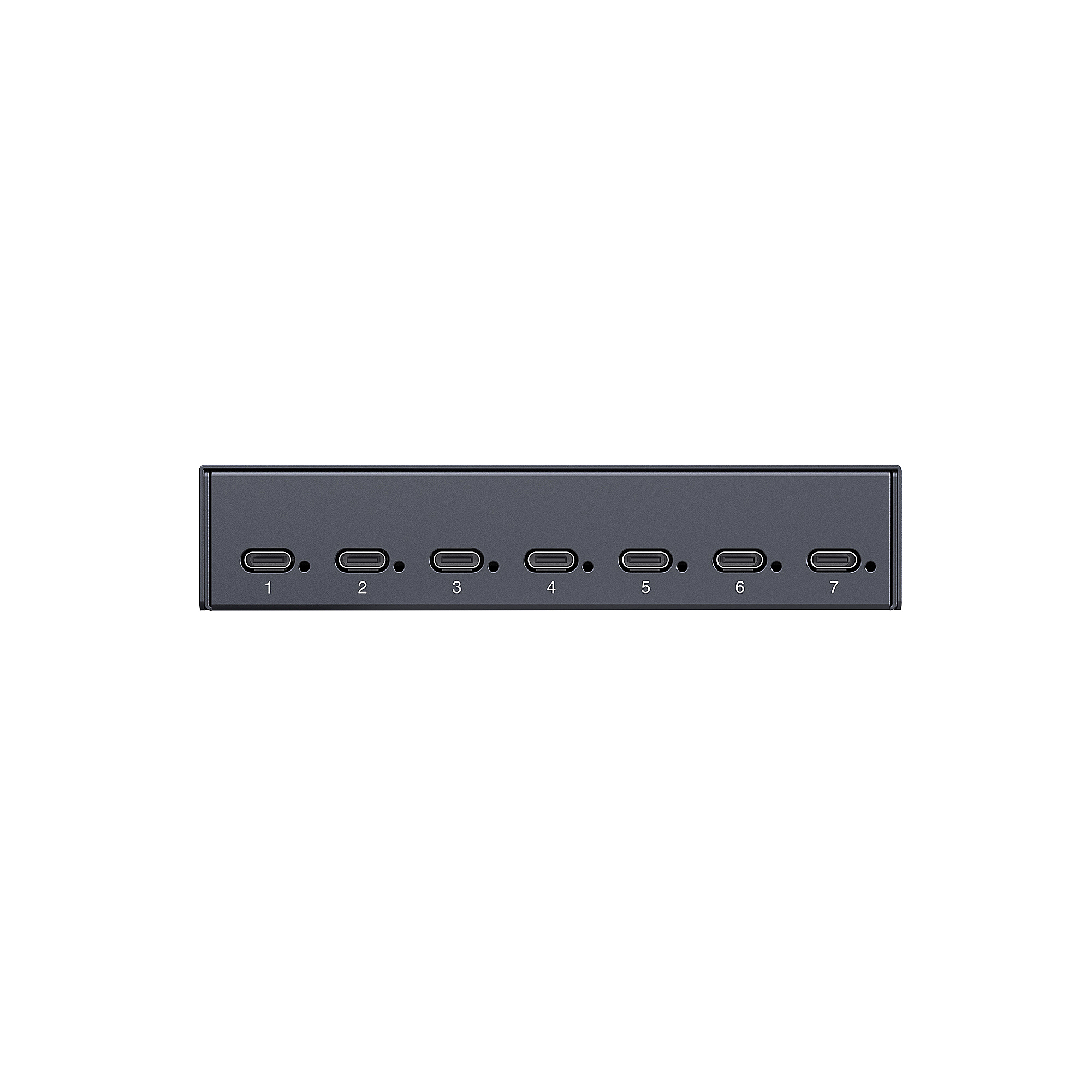

- 7 x USB-C 3.0 for connected devices

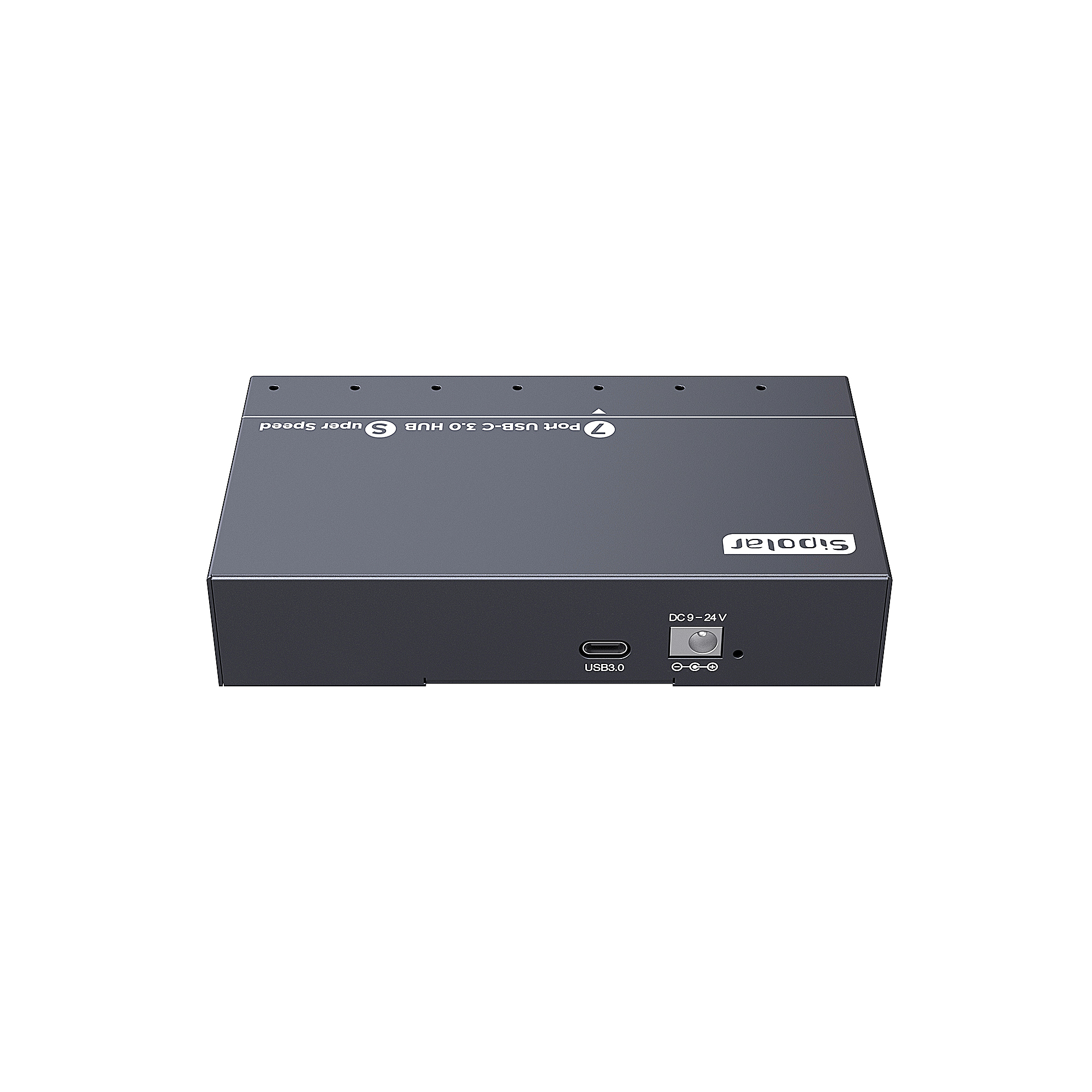

- 1 x USB-C 3.0 host connection
- Up to 5.0Gbps data transfer performance
- over-current protection; short-circuit protection
Product Description
The Sipolar A-173C is a 7-port USB-C 3.0 hub for equipment integration and test benches. It provides 7 x USB-C 3.0 device connections and a 1 x USB-C 3.0 host connection. The specified USB data rate is up to 5.0 Gbps.
Technical Specifications
Product Information
| Model | Sipolar A-173C |
| Product Type | Industrial USB Hub |
| Product Name | A-173C 7-Port USB-C 3.0 Hub |
| USB Specification | USB 3.0 |
| Downstream Port Count | 7 |
| Downstream Port Type | 7 x USB-C 3.0 |
| Upstream Port | 1 x USB-C 3.0 |
| Transfer Rate | Up to 5.0Gbps |
| LED Indicators | data connection indicator(blue)/power indicator(red) |
Power & Electrical
| Power Interface | DC 5.5 x 2.1 |
| Charging Protocol | BC1.2,Apple,Samsung |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :134 x 75 x 28 mm |
| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount |
| Net Weight | 275 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
| Driver Required | Windows installs the required USB hub driver automatically, as described in the user manual. |
Package Contents
- A-173C product unit - 1
- USB 3.0 cable - 1
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the A-173C designed for?
The A-173C is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
