Industrial USB Hub

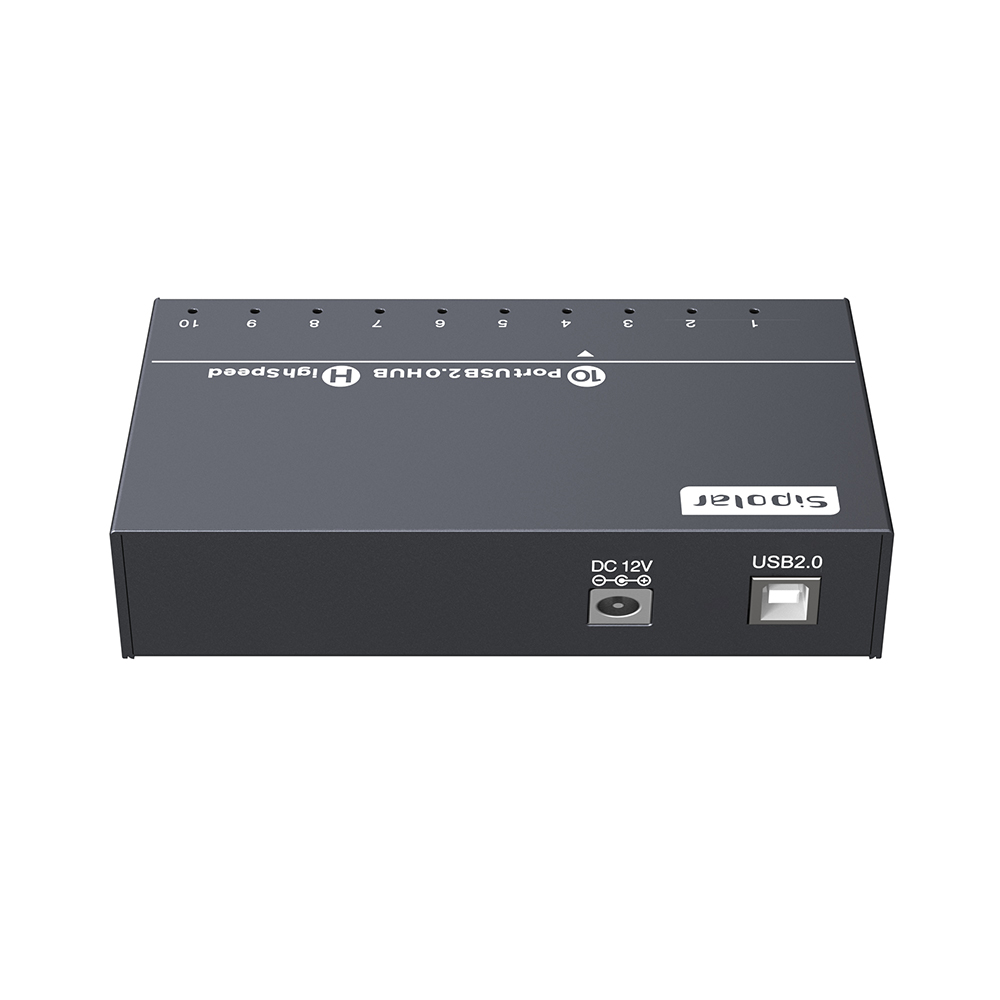

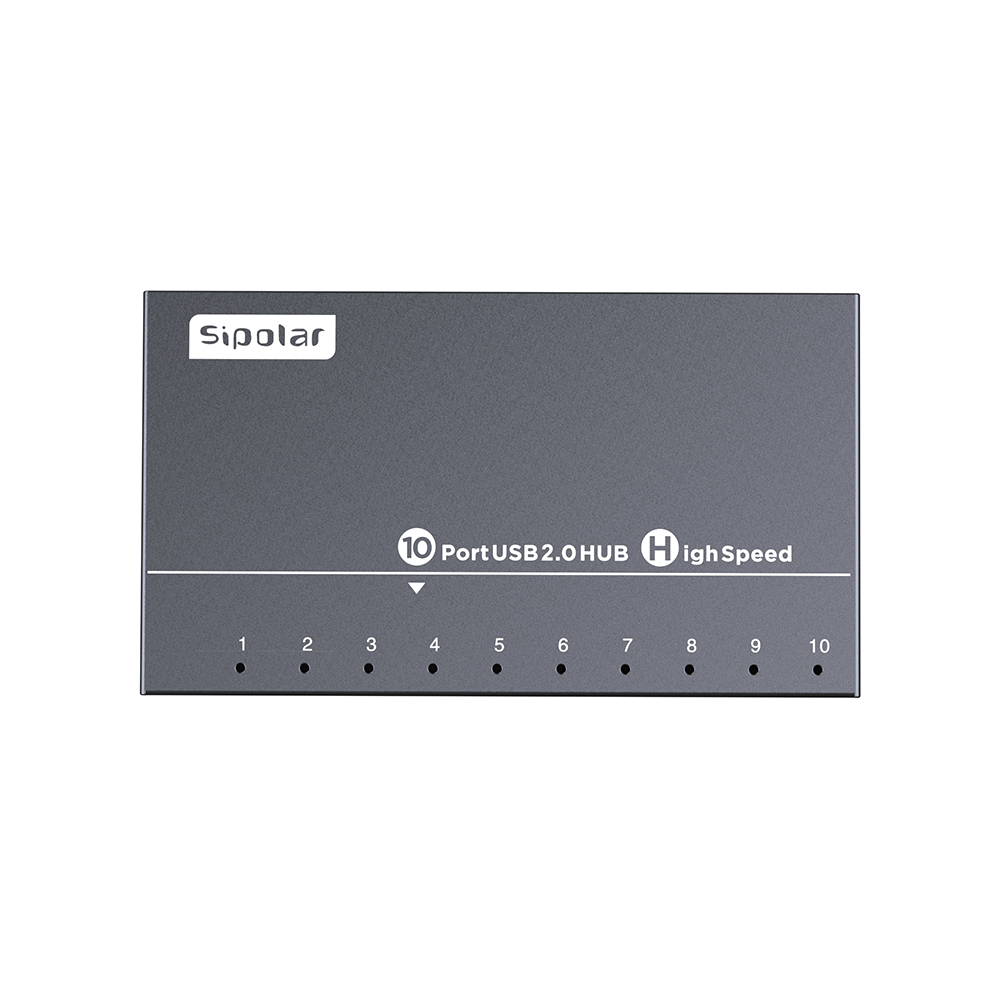

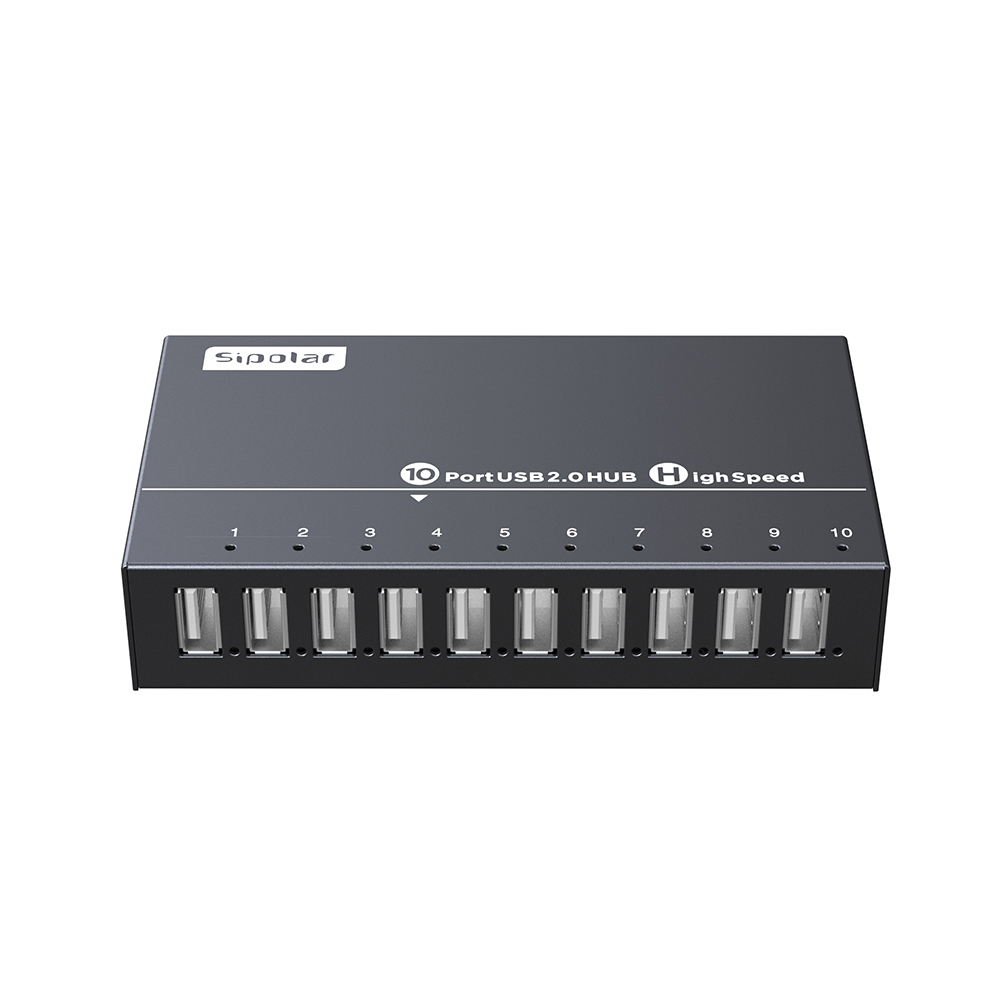

A-182 10-Port USB 2.0 Hub
Model: Sipolar A-182
A-182 10-Port USB 2.0 Hub | 10x USB-A 2.0 | Up to 480Mbps | DC 9-24V(default power adapter12V x 5A)
- 10 x USB-A 2.0 for connected devices
- 1 x USB-B 2.0 host connection
- Up to 480Mbps data transfer performance
- DC 9-24V(default power adapter12V x 5A) input power details
- Output details: 5 V / 1.3 A maximum per port
- over-current protection; short-circuit protection
Product Description
The Sipolar A-182 is a 10-port USB 2.0 hub for equipment integration and test benches. It provides 10 x USB-A 2.0 device connections and a 1 x USB-B 2.0 host connection. The specified USB data rate is up to 480 Mbps.
DC 9-24V(default power adapter12V x 5A) power details and Cold-rolled steel housing; Mounting flanges. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-182 |
| Product Type | Industrial USB Hub |
| Product Name | A-182 10-Port USB 2.0 Hub |
| USB Specification | USB 2.0 |
| Downstream Port Count | 10 |
| Downstream Port Type | 10 x USB-A 2.0 |
| Upstream Port | 1 x USB-B 2.0 |
| Transfer Rate | Up to 480Mbps |
| LED Indicators | data connection indicator(blue) |
Power & Electrical
| Power Interface | DC 5.5 x 2.1 |
| Input Electrical Characteristics | DC 9-24V(default power adapter12V x 5A) |
| Output Electrical Characteristics | 5V/1.3A(single-port maximum) |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :134 x 76.8 x 28mm |
| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount |
| Net Weight | 291 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
| Driver Required | Windows installs the required USB hub driver automatically, as described in the user manual. |
Package Contents
- A-182 product unit - 1
- 12 V / 5 A power adapter and power cord - 1 each
- USB 2.0 cable - 1
- Mounting brackets - 1 pair
- User manual - 1
Frequently Asked Questions
What type of project is the A-182 designed for?
The A-182 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Are all accessories confirmed?
Confirmed accessories and quantities are listed under Package Contents. Optional items are marked separately.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
