Industrial USB Hub
A-213P 20-Port USB 3.0 Charging Hub

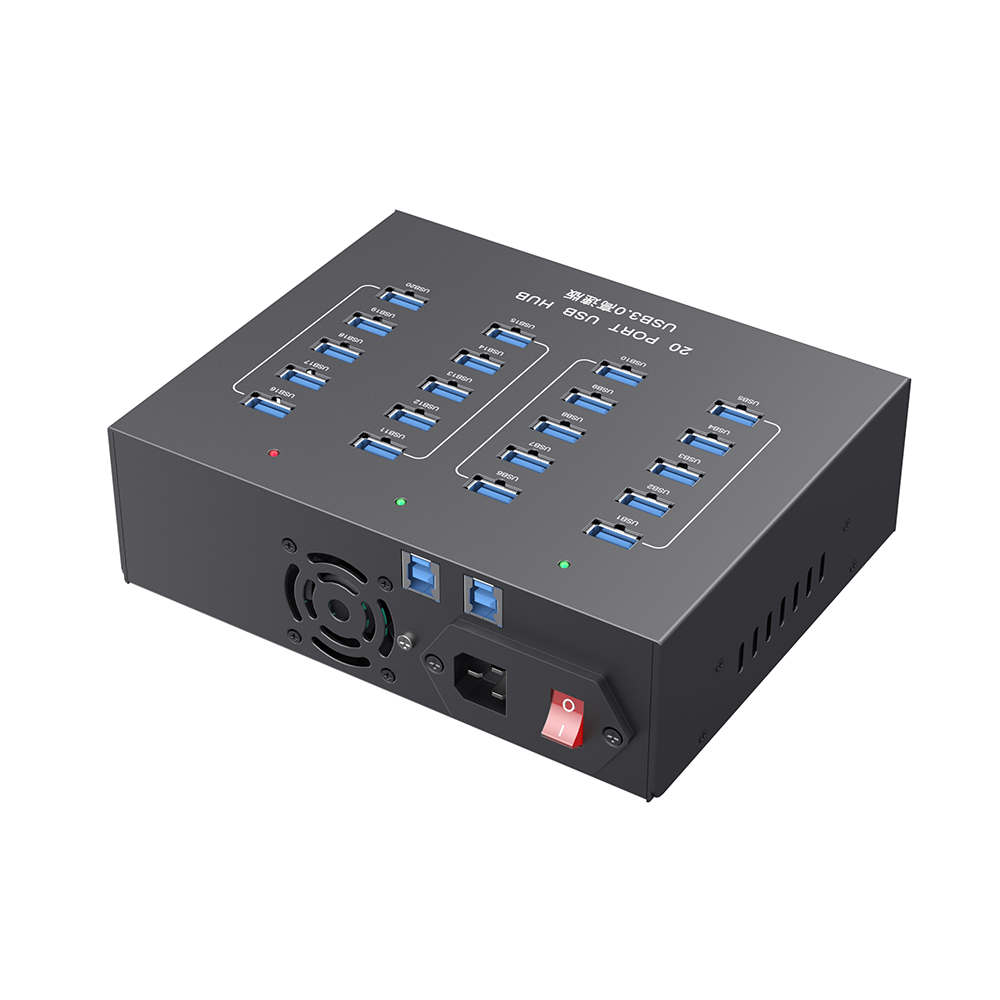

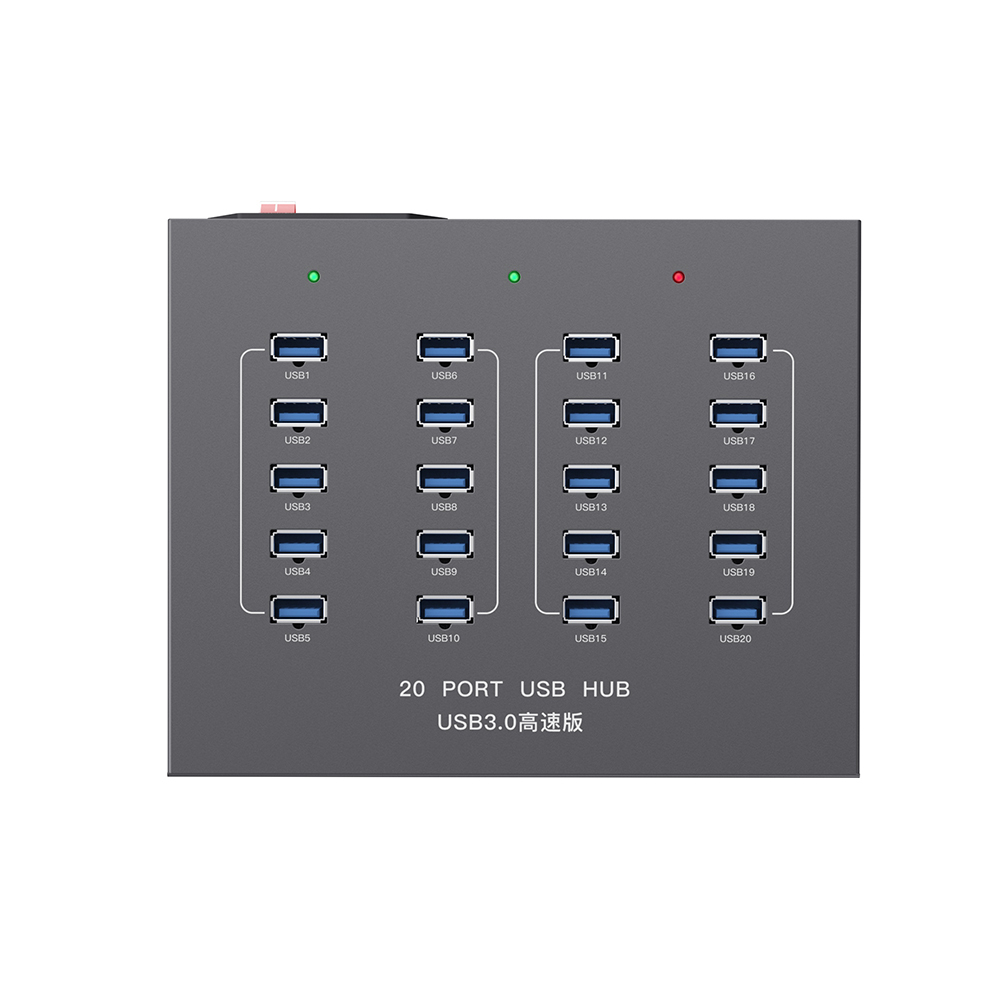

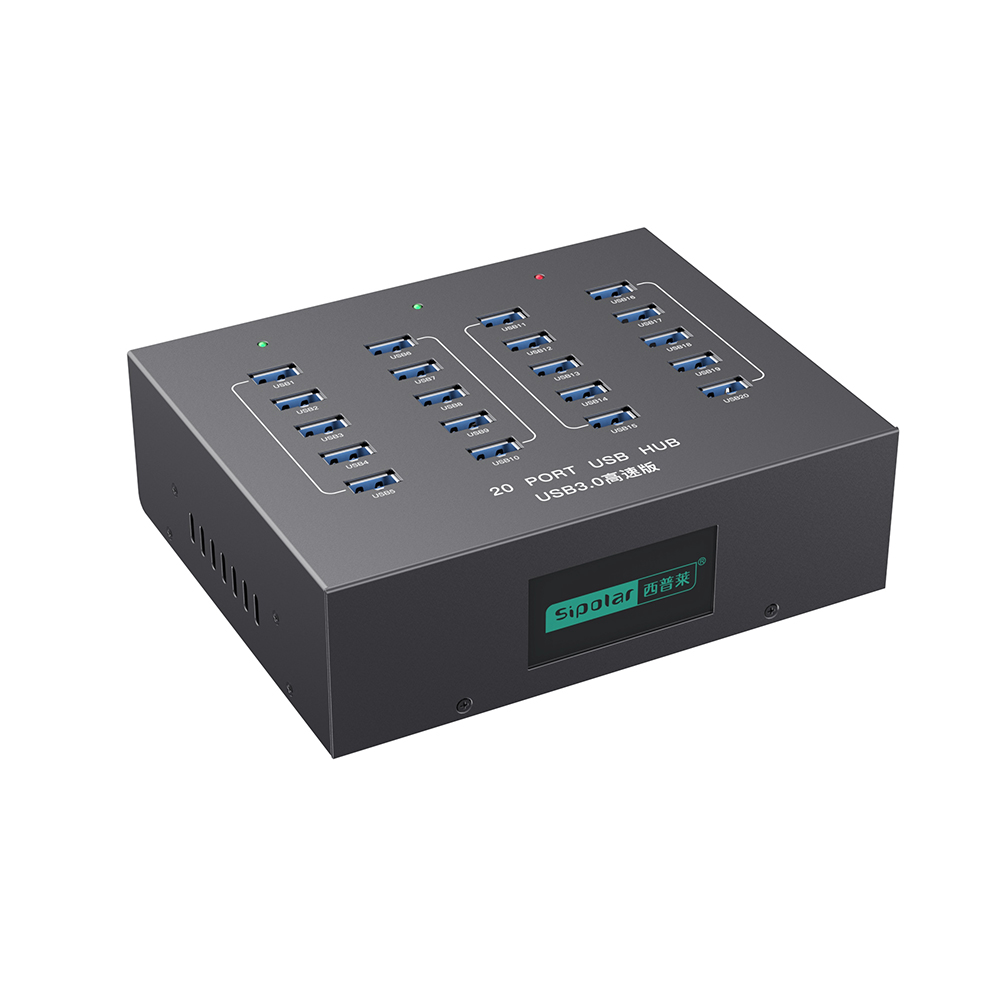

Model: Sipolar A-213P
A-213P 20-Port USB 3.0 Charging Hub | 20x USB-A 3.0 | Up to 5Gbps | DC 5V/22A
- 20 x USB-A 3.0 for connected devices
- 1 x USB-B 3.0 host connection
- Up to 5Gbps data transfer performance
- DC 5V/22A input power details
- Output details: per-port rated voltage:5.0V+/-5% per-port rated output current:1.5A
- over-current protection; short-circuit protection; backfeed prevention; USB port overload and short-circuit protection
Product Description
The Sipolar A-213P is a 20-port USB 3.0 charging hub for equipment integration and test benches. It provides 20 x USB-A 3.0 device connections and a 1 x USB-B 3.0 host connection. The specified USB data rate is up to 5 Gbps.
DC 5V/22A power details and cold-rolled steel. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-213P |
| Product Type | Industrial USB Hub |
| Product Name | A-213P 20-Port USB 3.0 Charging Hub |
| USB Specification | USB 3.0 |
| Downstream Port Count | 20 |
| Downstream Port Type | 20 x USB-A 3.0 |
| Upstream Port | 1 x USB-B 3.0 |
| Transfer Rate | Up to 5Gbps |
| LED Indicators | data connection indicator(green)/power indicator(red) |
Power & Electrical
| Power Interface | AC 100~240V 50/60Hz |
| Input Electrical Characteristics | DC 5V/22A |
| Output Electrical Characteristics | per-port rated voltage:5.0V+/-5% per-port rated output current:1.5A |
| Charging Protocol | BC1.2,Apple,Samsung |
| Protection | over-current protection; short-circuit protection; backfeed prevention; USB port overload and short-circuit protection |
Physical
| Product Dimensions | 180 x 146.3 x 55.8mm |
| Housing Material | cold-rolled steel |
| Mounting Style | wall-mount ears |
| Cooling Method | Temperature-controlled cooling fan and ventilation openings |
| Package Dimensions | 260 x 230 x 80 mm |
| Net Weight | 1380 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
Additional Specifications
| Connection Notes | USB 10 USB 2 20 USB |
Package Contents
- A-213P product unit - 1
- Power cord - 1 (power supply built into the hub)
- USB 3.0 cables - 2
- Mounting brackets - 1 pair (optional)
- User manual - 1
Frequently Asked Questions
What type of project is the A-213P designed for?
The A-213P is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Are all accessories confirmed?
Confirmed accessories and quantities are listed under Package Contents. Optional items are marked separately.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
