Industrial USB Hub

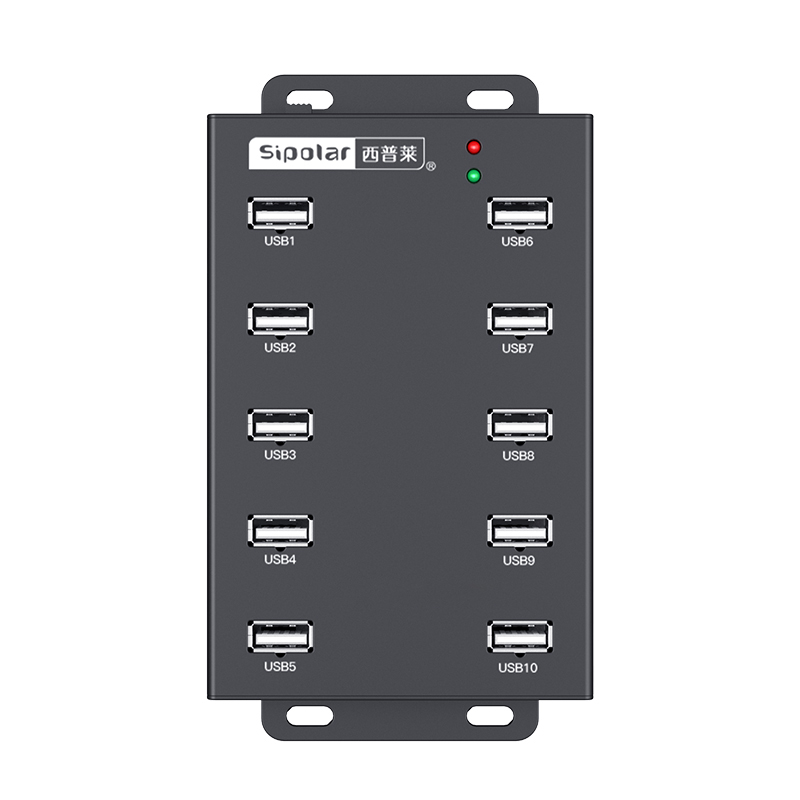

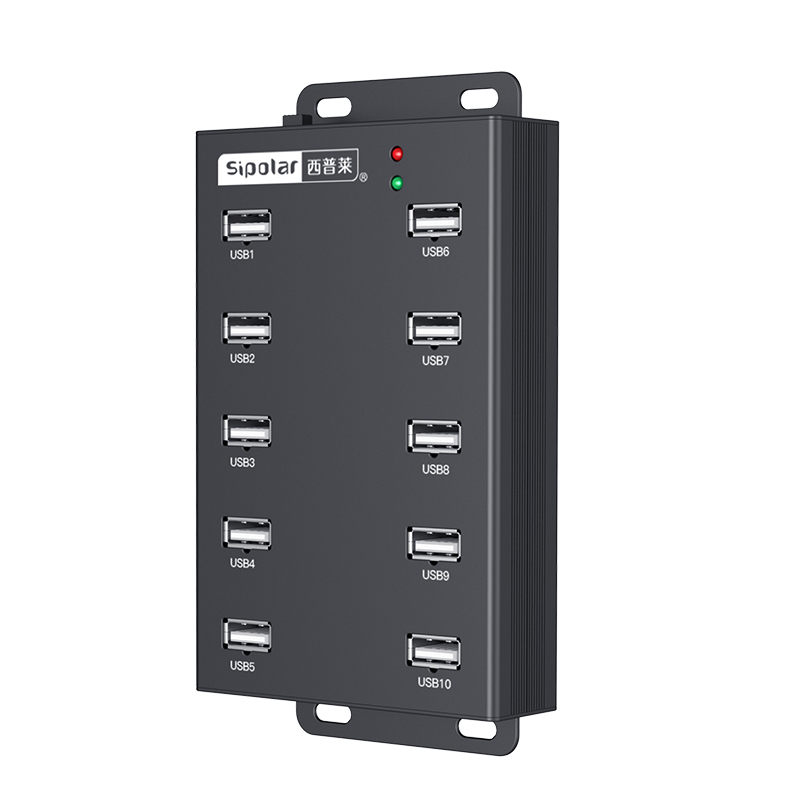

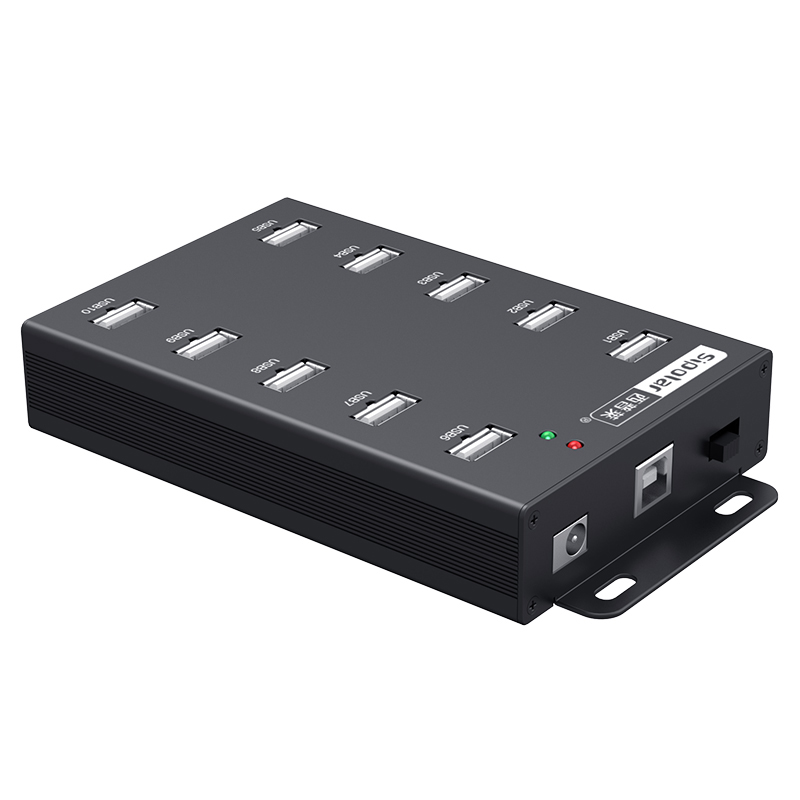

A-300 10-Port USB 2.0 Hub
Model: Sipolar A-300
Confirm the per-port output before ordering. Contact Sipolar.
A-300 10-Port USB 2.0 Hub | 10x USB-A 2.0 | Up to 480Mbps | DC 9-24V(default power adapter12V x 5A)
- 10 x USB-A 2.0 for connected devices
- 1 x USB-B 2.0 host connection
- Up to 480Mbps data transfer performance
- DC 9-24V(default power adapter12V x 5A) input power details
- over-current protection; short-circuit protection
Product Description
The Sipolar A-300 is a 10-port USB 2.0 hub for equipment integration and test benches. It provides 10 x USB-A 2.0 device connections and a 1 x USB-B 2.0 host connection. The specified USB data rate is up to 480 Mbps.
DC 9-24V(default power adapter12V x 5A) power details and Extruded aluminum housing; Mounting flanges with anti-slip pads. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-300 |
| Product Type | Industrial USB Hub |
| Product Name | A-300 10-Port USB 2.0 Hub |
| USB Specification | USB 2.0 |
| Downstream Port Count | 10 |
| Downstream Port Type | 10 x USB-A 2.0 |
| Upstream Port | 1 x USB-B 2.0 |
| Transfer Rate | Up to 480Mbps |
| LED Indicators | data connection indicator(green)/power indicator(red) |
Power & Electrical
| Power Interface | DC 5.5 x 2.1 |
| Input Electrical Characteristics | DC 9-24V(default power adapter12V x 5A) |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :143 x 80.6 x 23.94mm |
| Mechanical Structure | Housing: aluminum extrusion; Mounting: ear-mount; anti-slip pads |
| Net Weight | 209 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
| Driver Required | Windows installs the required USB hub driver automatically, as described in the user manual. |
Package Contents
- A-300 product unit - 1
- 12 V / 5 A power adapter and power cord - 1 each
- USB 2.0 cable - 1
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the A-300 designed for?
The A-300 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
