Industrial USB Hub

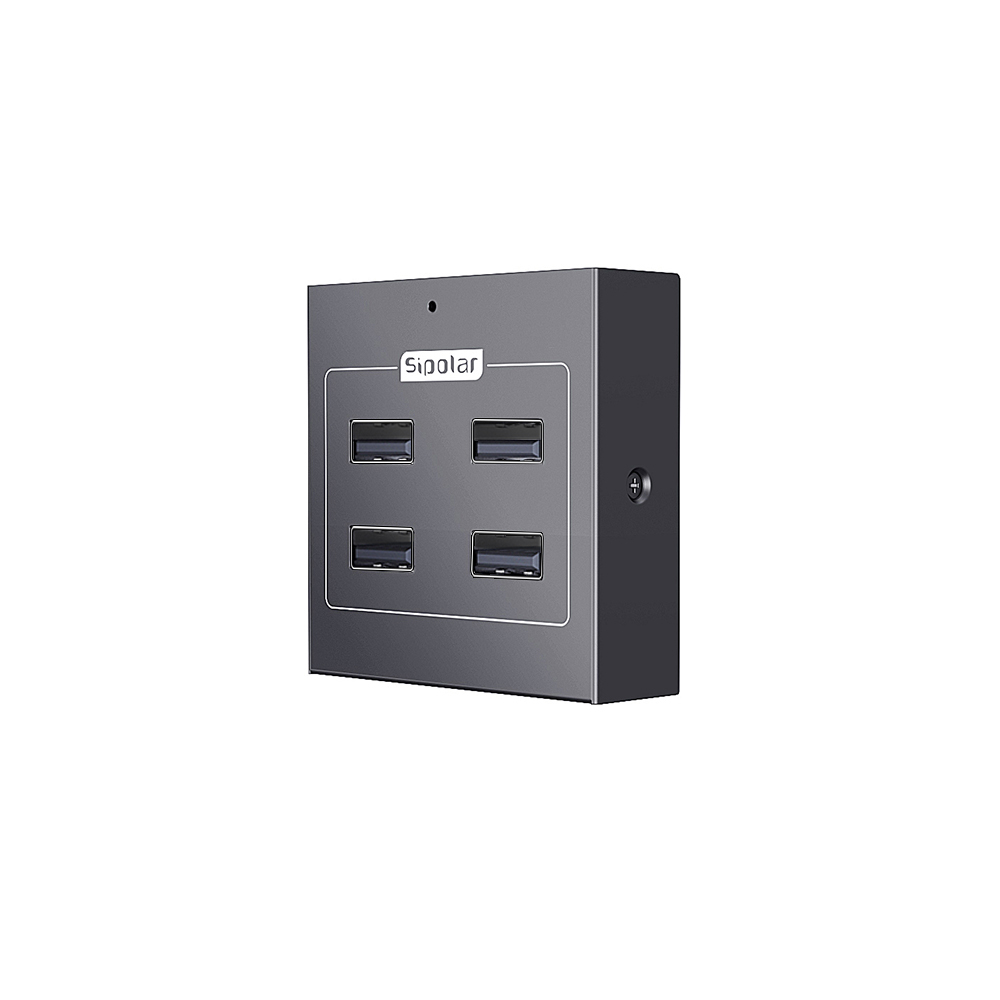

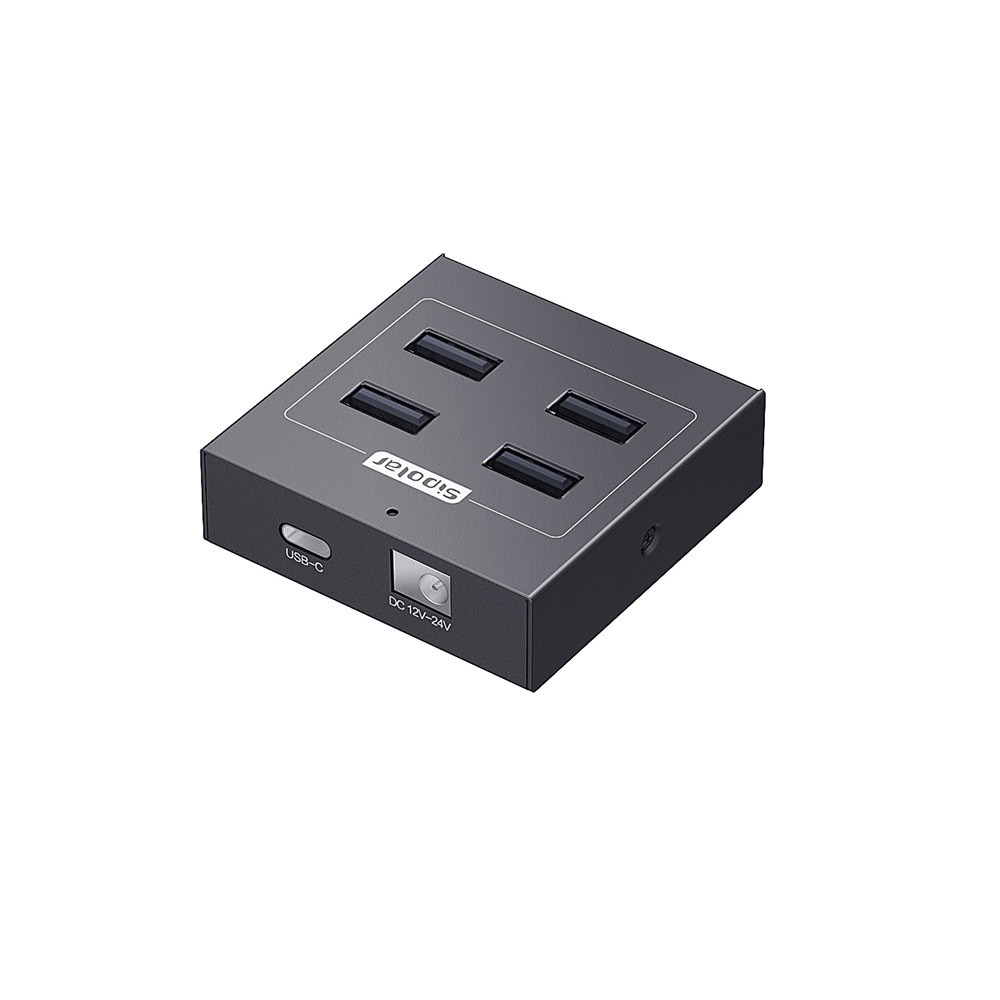

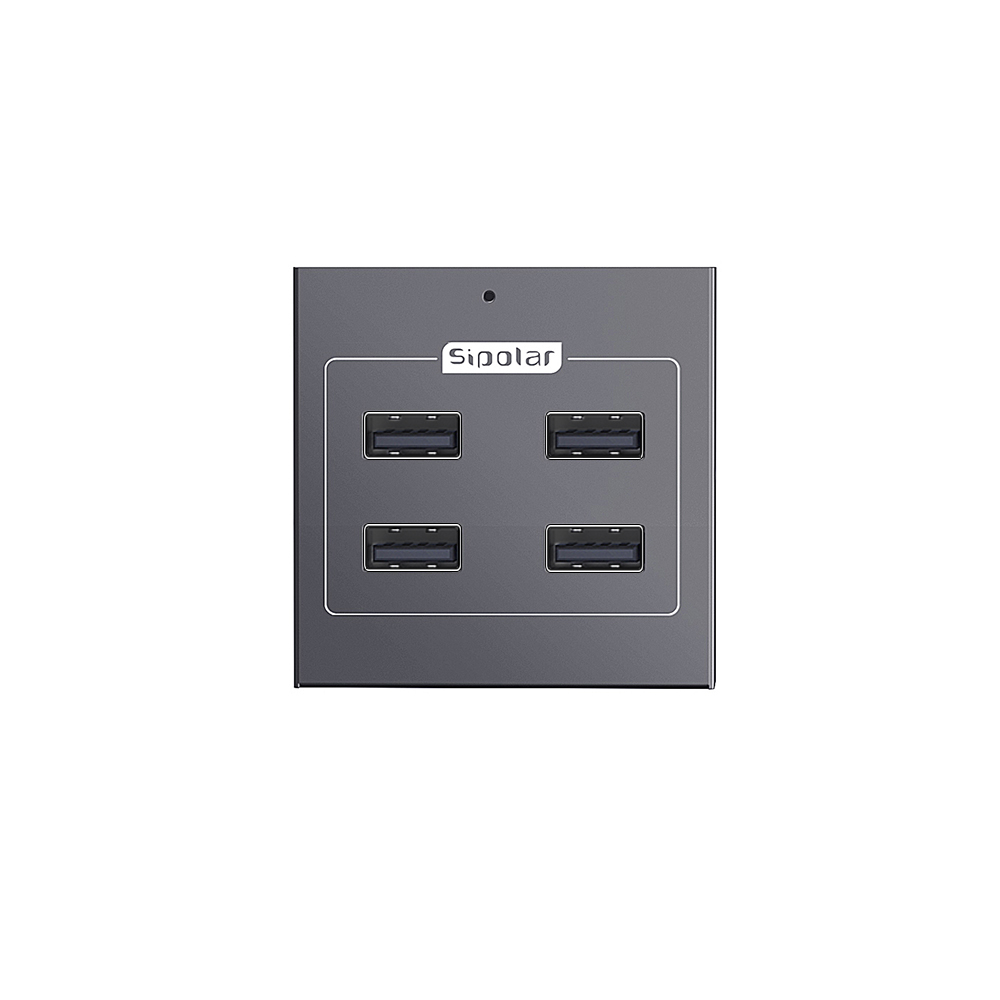

A-4U20M1 4-Port USB-C 2.0 Hub
Model: Sipolar A-4U20M1
A-4U20M1 4-Port USB-C 2.0 Hub | 4x USB-A 2.0 | Up to 480Mbps | DC 12V-24V
- 4 x USB-A 2.0 for connected devices
- 1 x USB-C 2.0 host connection
- Up to 480Mbps data transfer performance
- DC 12V-24V input power details
- Output details: 5.0 V +/- 5%; total output current 3 A with external power
- over-current protection; short-circuit protection
Product Description
The Sipolar A-4U20M1 is a 4-port USB-C 2.0 hub for equipment integration and test benches. It provides 4 x USB-A 2.0 device connections and a 1 x USB-C 2.0 host connection. The specified USB data rate is up to 480 Mbps.
DC 12V-24V power details and Cold-rolled steel housing; Flange or desktop mounting. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-4U20M1 |
| Product Type | Industrial USB Hub |
| Product Name | A-4U20M1 4-Port USB-C 2.0 Hub |
| USB Specification | USB 2.0 |
| Downstream Port Count | 4 |
| Downstream Port Type | 4 x USB-A 2.0 |
| Upstream Port | 1 x USB-C 2.0 |
| Transfer Rate | Up to 480Mbps |
| LED Indicators | power indicator(red) |
Power & Electrical
| Power Interface | DC 5.5 x 2.1mm |
| Input Electrical Characteristics | DC 12V-24V |
| Output Electrical Characteristics | 5.0V+/-5% 3A |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :60 x 60 x 18 mm |
| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount/desktop |
| Net Weight | 96 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
| Driver Required | Windows installs the required USB hub driver automatically, as described in the user manual. |
Package Contents
- A-4U20M1 product unit - 1
- USB 2.0 cable - 1
- Flat mounting brackets - 1 pair
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the A-4U20M1 designed for?
The A-4U20M1 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
