Industrial USB Hub

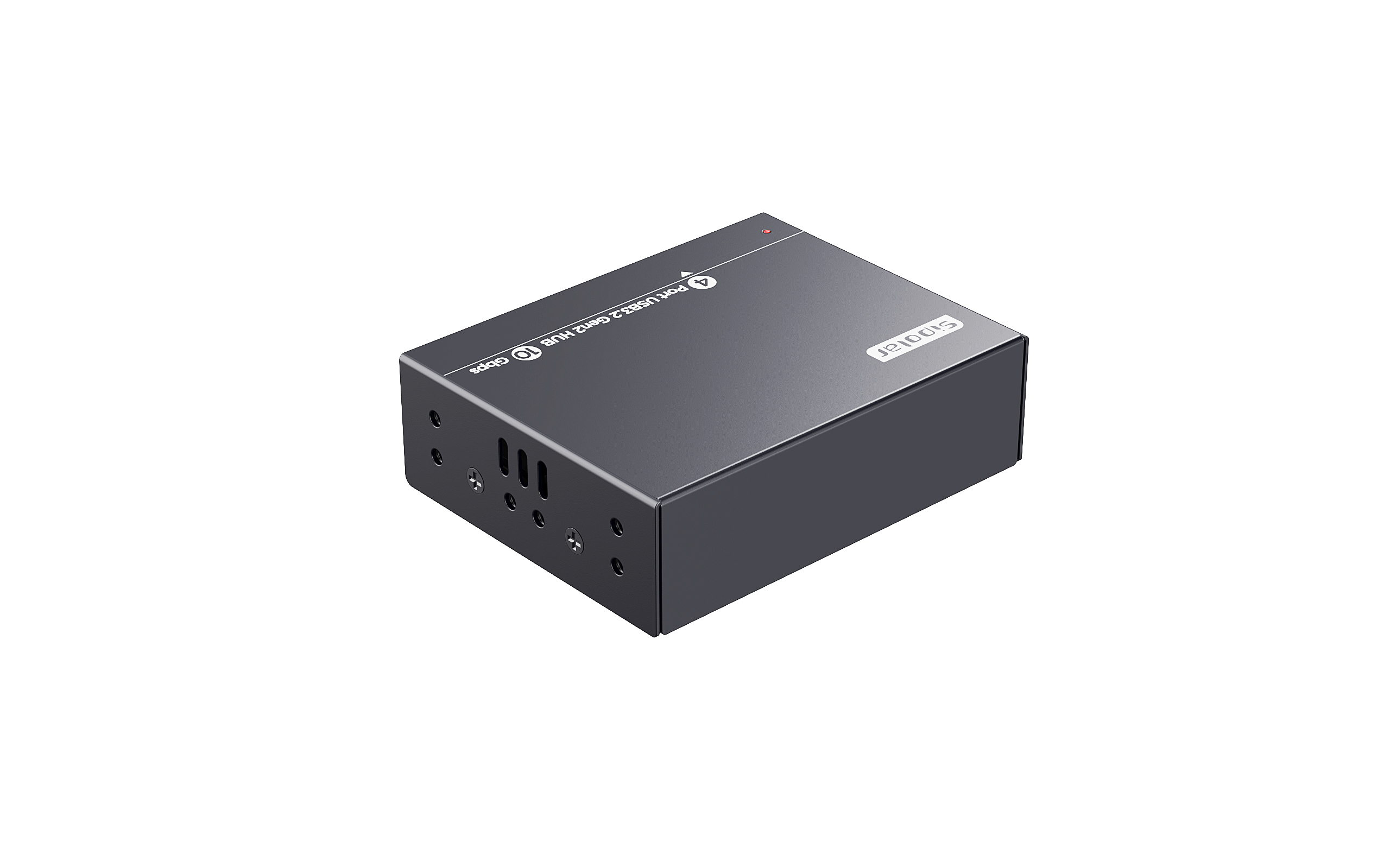

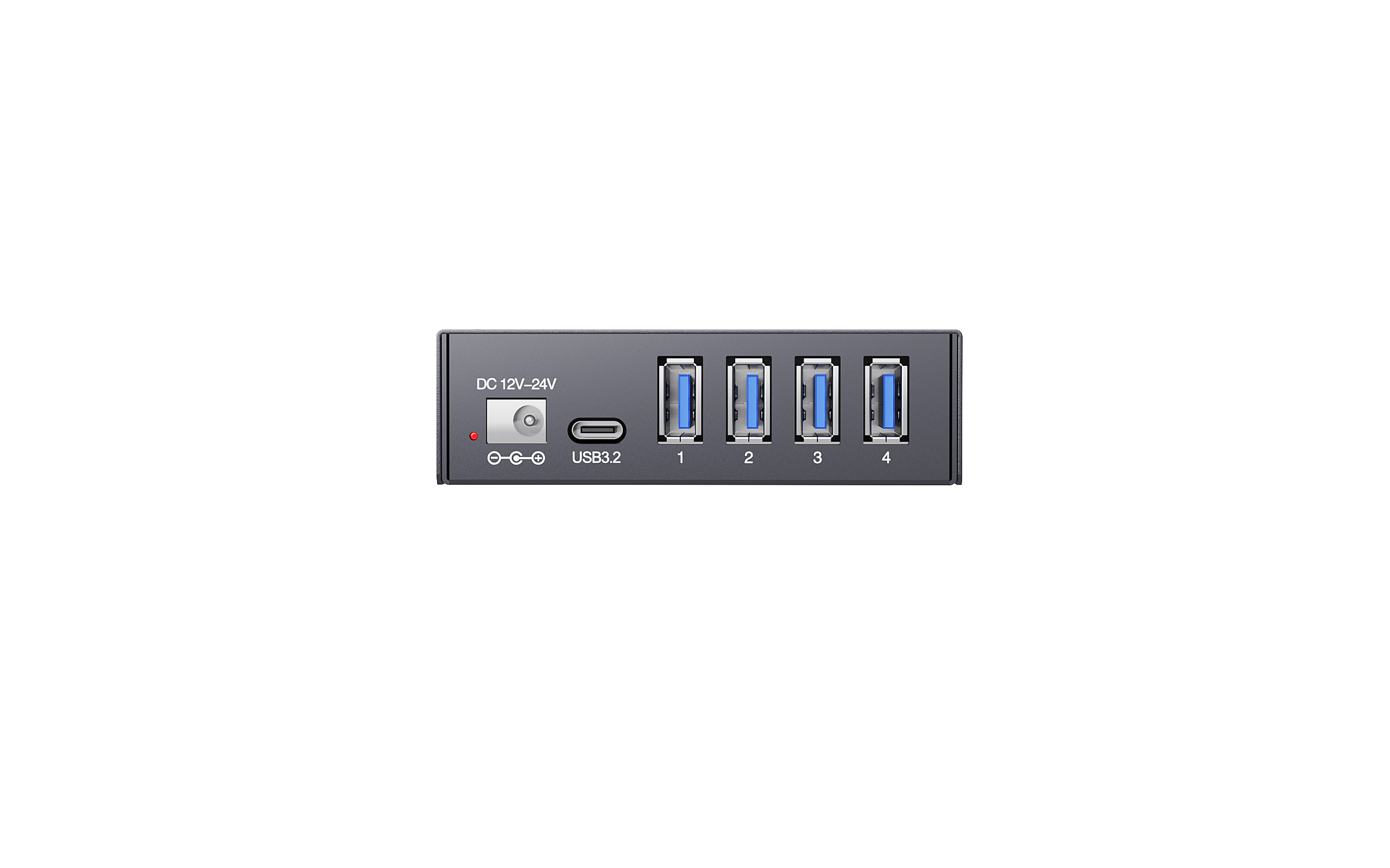

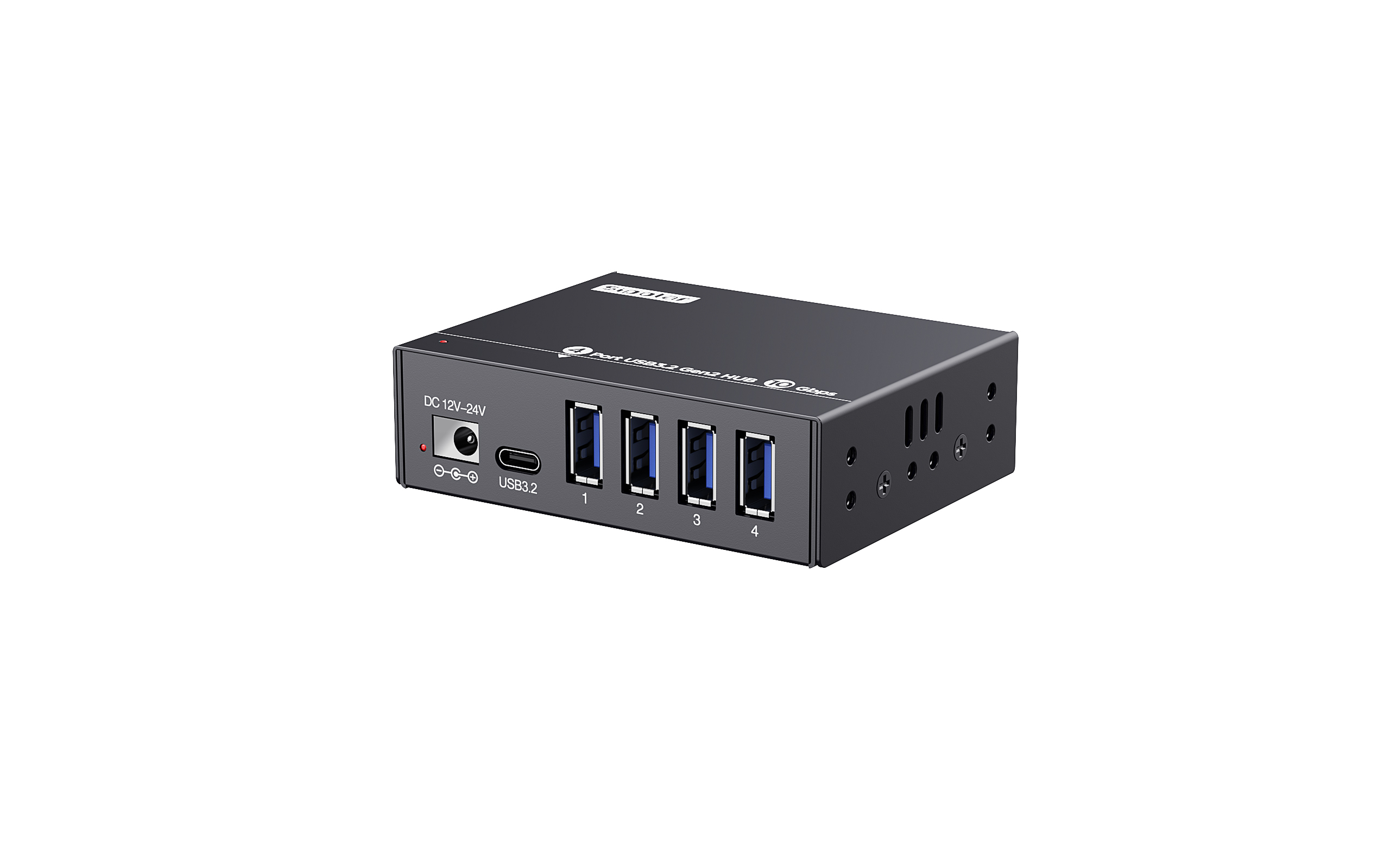

A-4U32M1 4-Port USB-C 3.2 Hub
Model: Sipolar A-4U32M1
A-4U32M1 4-Port USB-C 3.2 Hub | x USB-A 3.2 | Up to 10Gbps | DC 12V/2A
- x USB-A 3.2 for connected devices
- 1 x USB-C 3.2 host connection
- Up to 10Gbps data transfer performance
- Default power adapter: DC 12V/2A
- Output details: 5 V / 2.4 A maximum per port; total power up to 24 W
- over-current protection; short-circuit protection
Product Description
The Sipolar A-4U32M1 is a 4-port USB-C 3.2 hub for equipment integration and test benches. It provides x USB-A 3.2 device connections and a 1 x USB-C 3.2 host connection. The specified USB data rate is up to 10 Gbps.
DC 12V/2A power details and Cold-rolled steel housing; Flange or desktop mounting. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-4U32M1 |
| Product Type | Industrial USB Hub |
| Product Name | A-4U32M1 4-Port USB-C 3.2 Hub |
| USB Specification | USB 3.2 |
| Downstream Port Count | 4 |
| Downstream Port Type | x USB-A 3.2 |
| Upstream Port | 1 x USB-C 3.2 |
| Transfer Rate | Up to 10Gbps |
| LED Indicators | power indicator(red) |
Power & Electrical
| Power Interface | DC 5.5 x 2.1mm |
| Default Power Adapter | DC 12V/2A |
| Output Electrical Characteristics | 5V/2.4A 24W |
| Charging Protocol | BC1.2, Samsung,Apple |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :92 x 71.5 x 27.3mm |
| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount/desktop |
| Net Weight | 194 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
| Driver Required | Windows installs the required USB hub driver automatically, as described in the user manual. |
Package Contents
- A-4U32M1 product unit - 1
- 12 V / 2 A power adapter - 1
- USB 3.2 cable - 1
- Mounting brackets - 1 pair
- User manual - 1
Frequently Asked Questions
What type of project is the A-4U32M1 designed for?
The A-4U32M1 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Are all accessories confirmed?
Confirmed accessories and quantities are listed under Package Contents. Optional items are marked separately.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
