Industrial USB Hub

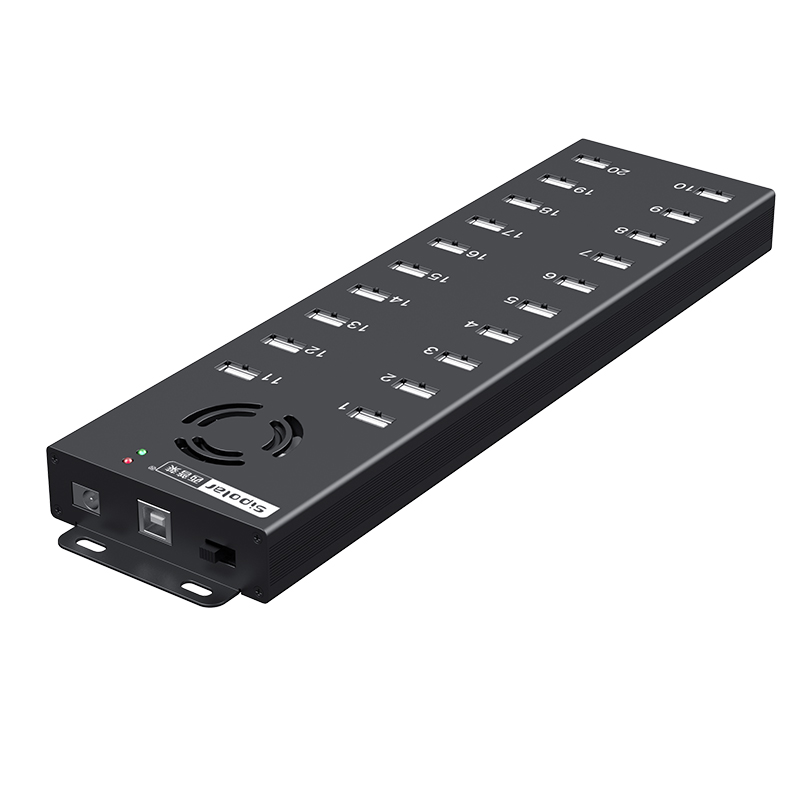

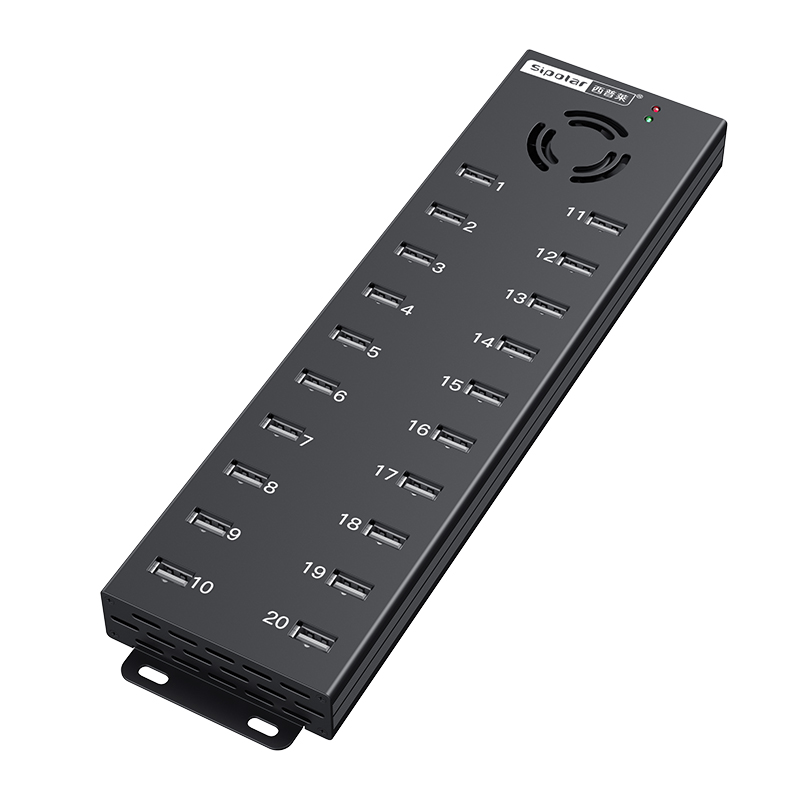

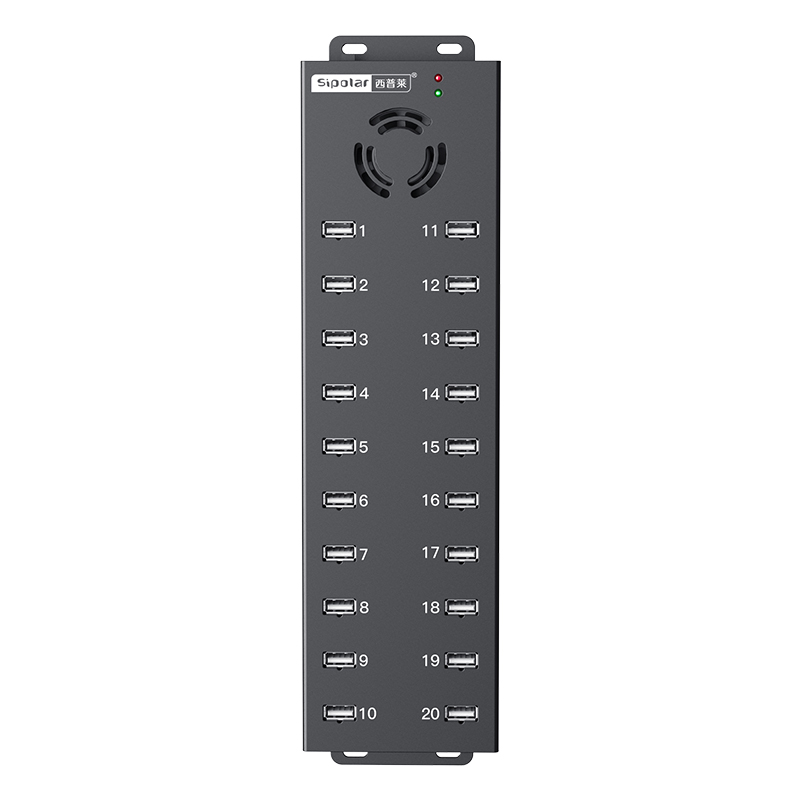

A-805P 20-Port USB 2.0 Hub
Model: Sipolar A-805P
A-805P 20-Port USB 2.0 Hub | 20x USB-A 2.0 | Up to 480Mbps | DC 9-24V(default power adapter12V x 10A)
- 20 x USB-A 2.0 for connected devices
- 1 x USB-B 2.0 host connection
- Up to 480Mbps data transfer performance
- DC 9-24V(default power adapter12V x 10A) input power details
- Output details: 5 V / 1.2 A maximum per port
- over-current protection; short-circuit protection
Product Description
The Sipolar A-805P is a 20-port USB 2.0 hub for equipment integration and test benches. It provides 20 x USB-A 2.0 device connections and a 1 x USB-B 2.0 host connection. The specified USB data rate is up to 480 Mbps.
DC 9-24V(default power adapter12V x 10A) power details and Extruded aluminum housing; Mounting flanges. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar A-805P |
| Product Type | Industrial USB Hub |
| Product Name | A-805P 20-Port USB 2.0 Hub |
| USB Specification | USB 2.0 |
| Downstream Port Count | 20 |
| Downstream Port Type | 20 x USB-A 2.0 |
| Upstream Port | 1 x USB-B 2.0 |
| Transfer Rate | Up to 480Mbps |
| LED Indicators | data connection indicator(green)/power indicator(red) |
Power & Electrical
| Power Interface | DC 5.5 x 2.1 |
| Input Electrical Characteristics | DC 9-24V(default power adapter12V x 10A) |
| Output Electrical Characteristics | 5V/1.2A(single-port maximum) |
| Charging Protocol | BC1.2,Apple,Samsung |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :301 x 80.6 x 23.94mm |
| Mechanical Structure | Housing: aluminum extrusion; Mounting: ear-mount |
| Cooling Method | Temperature-controlled cooling fan and ventilation openings |
| Net Weight | 443 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
Package Contents
- A-805P product unit - 1
- 12 V / 10 A power adapter with power cord - 1 set
- USB 2.0 cable - 1
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the A-805P designed for?
The A-805P is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
