Industrial USB Hub

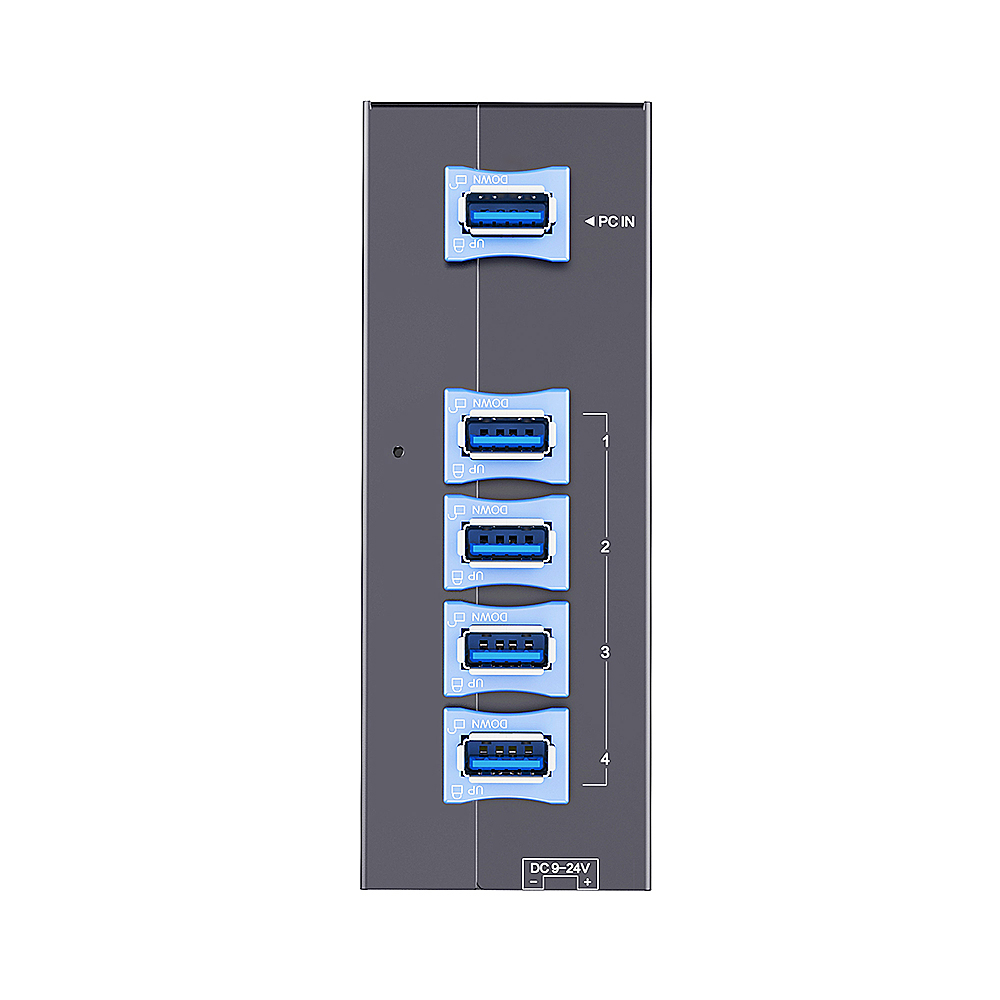

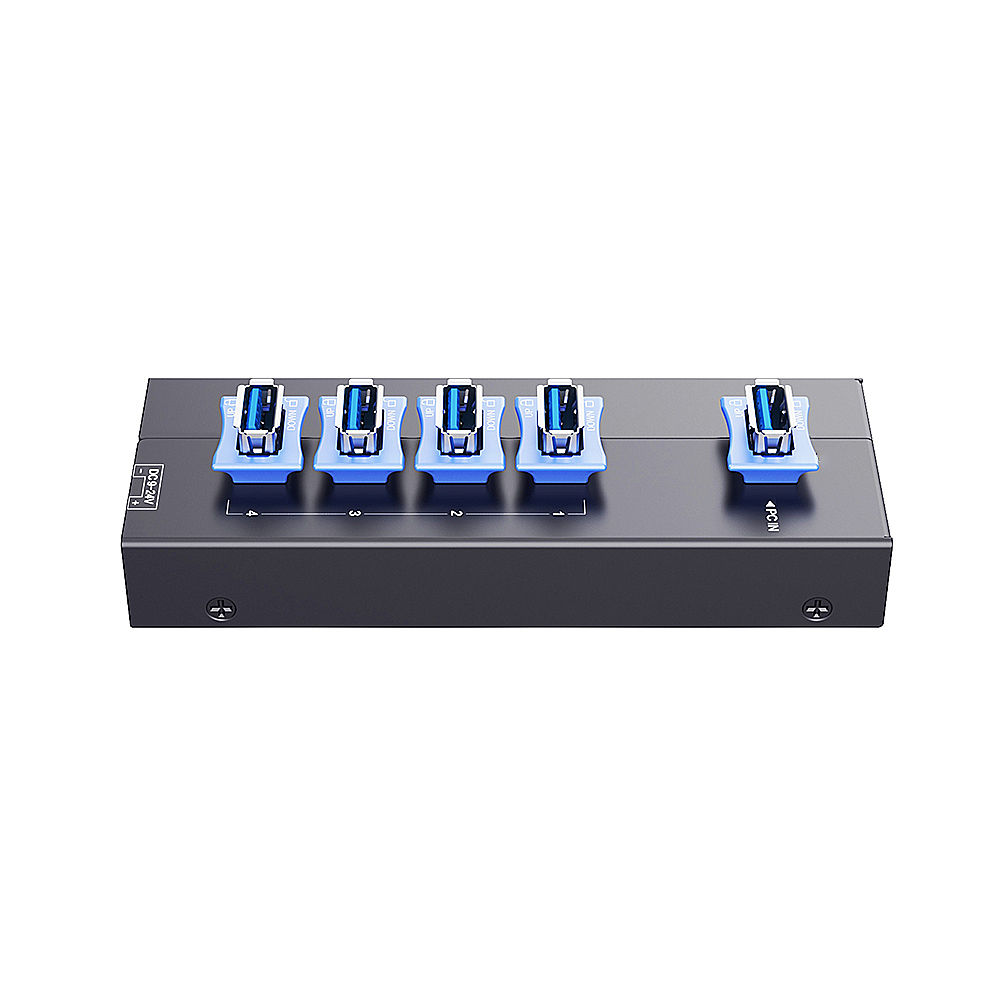

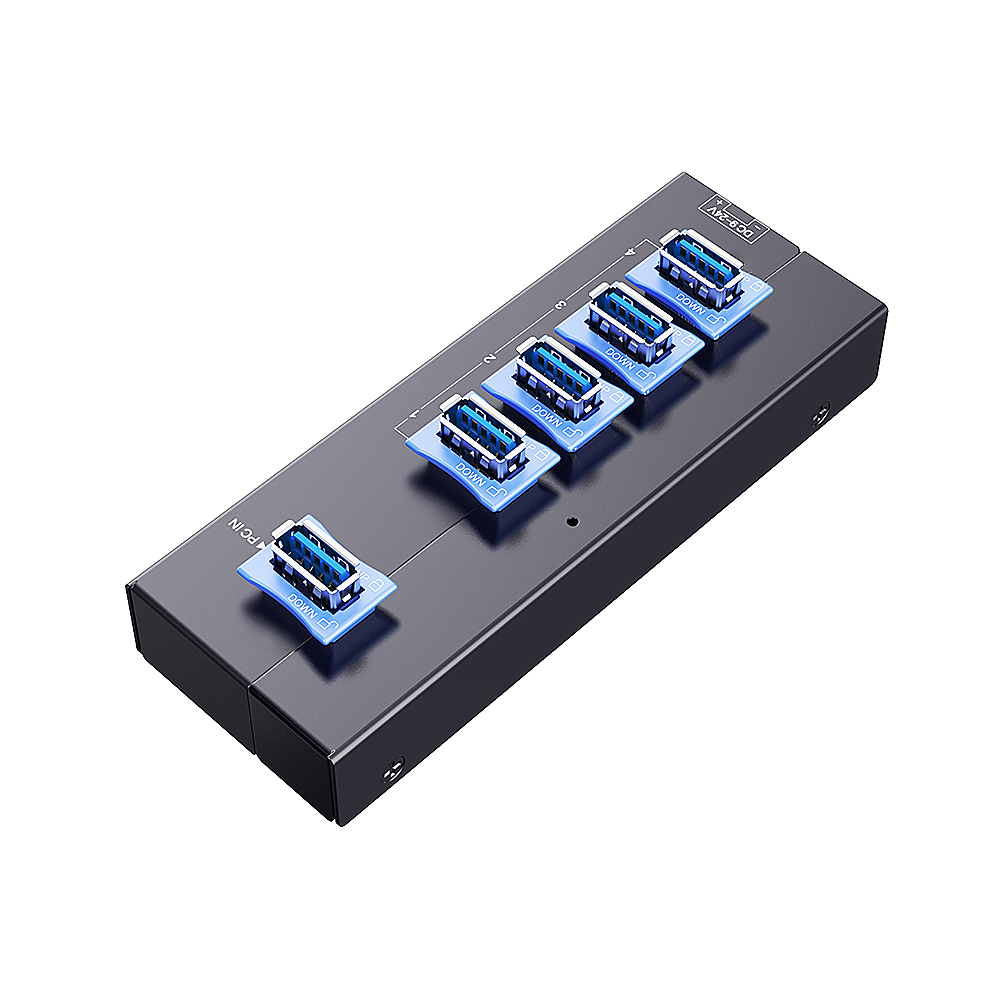

AT-4U30M2 4-Port USB 3.0 Hub
Model: Sipolar AT-4U30M2
AT-4U30M2 4-Port USB 3.0 Hub | x USB-A 3.0 | Up to 5Gbps | DC 9V-24V
- x USB-A 3.0 for connected devices
- 1 x USB-A 3.0 host connection
- Up to 5Gbps data transfer performance
- DC 9V-24V input power details
- Output details: 5.0 V +/- 5%; maximum 1.5 A per port; total power up to 30 W
- over-current protection; short-circuit protection
Product Description
The Sipolar AT-4U30M2 is a 4-port USB 3.0 hub for equipment integration and test benches. It provides x USB-A 3.0 device connections and a 1 x USB-A 3.0 host connection. The specified USB data rate is up to 5 Gbps.
DC 9V-24V power details and an installation-ready enclosure. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar AT-4U30M2 |
| Product Type | Industrial USB Hub |
| Product Name | AT-4U30M2 4-Port USB 3.0 Hub |
| USB Specification | USB 3.0 |
| Downstream Port Count | 4 |
| Downstream Port Type | x USB-A 3.0 |
| Upstream Port | 1 x USB-A 3.0 |
| Transfer Rate | Up to 5Gbps |
Power & Electrical
| Power Interface | 2.54-2P |
| Input Electrical Characteristics | DC 9V-24V |
| Output Electrical Characteristics | 5.0V+/-5% 1.5A. 30W |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :122 x 45 x 28 mm |
| Mounting Style | wall-mount ears |
| Net Weight | 153 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
Package Contents
- AT-4U30M2 product unit - 1
- USB 3.0 cable - 1
- Flat mounting brackets - 1 pair
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the AT-4U30M2 designed for?
The AT-4U30M2 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
