Charging Station
C-165PD 16-Port 30W USB-C Charging Station
Model: Sipolar C-165PD
C-165PD 16-Port 30W USB-C Charging Station | DC 24V/25A | Contact us for configuration details
- DC 24V/25A input power details
- over-current protection; short-circuit protection
- Configuration details should be confirmed before final procurement
Product Description
The Sipolar C-165PD is a 16-port 30W USB-C charging station for shared device charging, service counters and deployment rooms.
Its DC 24V/25A power design and Cold-rolled steel housing; Mounting flanges. Check enclosure dimensions, cable access and mounting clearances for your charging installation.
Technical Specifications
Product Information
| Model | Sipolar C-165PD |
| Product Type | Charging Station |
| Product Name | C-165PD 16-Port 30W USB-C Charging Station |
| Downstream Port Count | 16 |
| LED Indicators | USB port indicator: green when powered, red while charging, green when fully charged |
Power & Electrical
| AC Input | Input voltage:110VAC/220VACselectable by switch Frequency:50/60Hz Input current:100-120VAC/12A,200-240VAC/7.5A |
| Input Electrical Characteristics | DC 24V/25A |

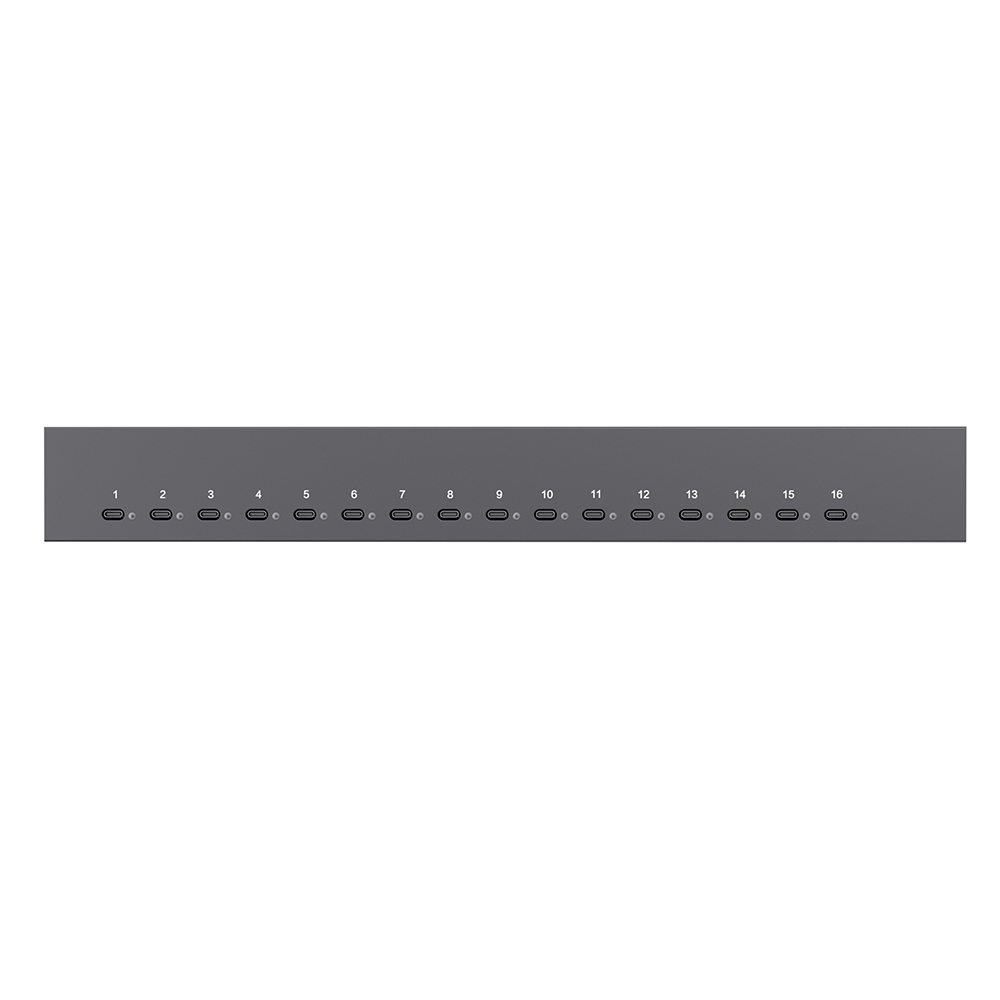

| Output Interface | 16 x Type-C |
| USB-C Output Electrical Characteristics | 5V/3A,9V/3A,12V/2.5A,15V/2A,20V/1.5A PPS:3.3V~11V/3A,PPS:3.3V~16V/2A |
| Charging Protocol | BC1.2 & Apple QC2.0, QC3.0, QC4.0, QC4.0+ FCP,SCP,SFCP AFC(MAX12V) PD2.0,PD3.0(PPS) |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | 440 x 204 x 55mm 565 x 248 x 80mm |

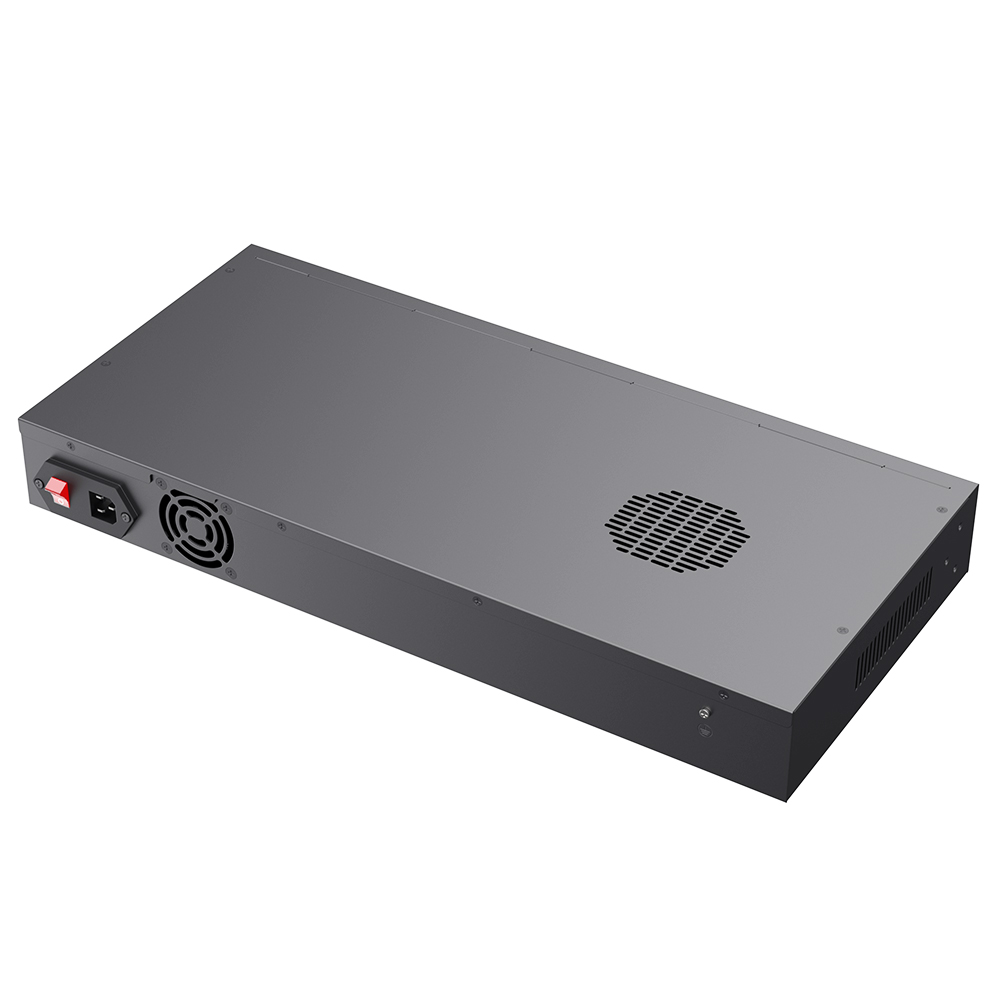

| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount |

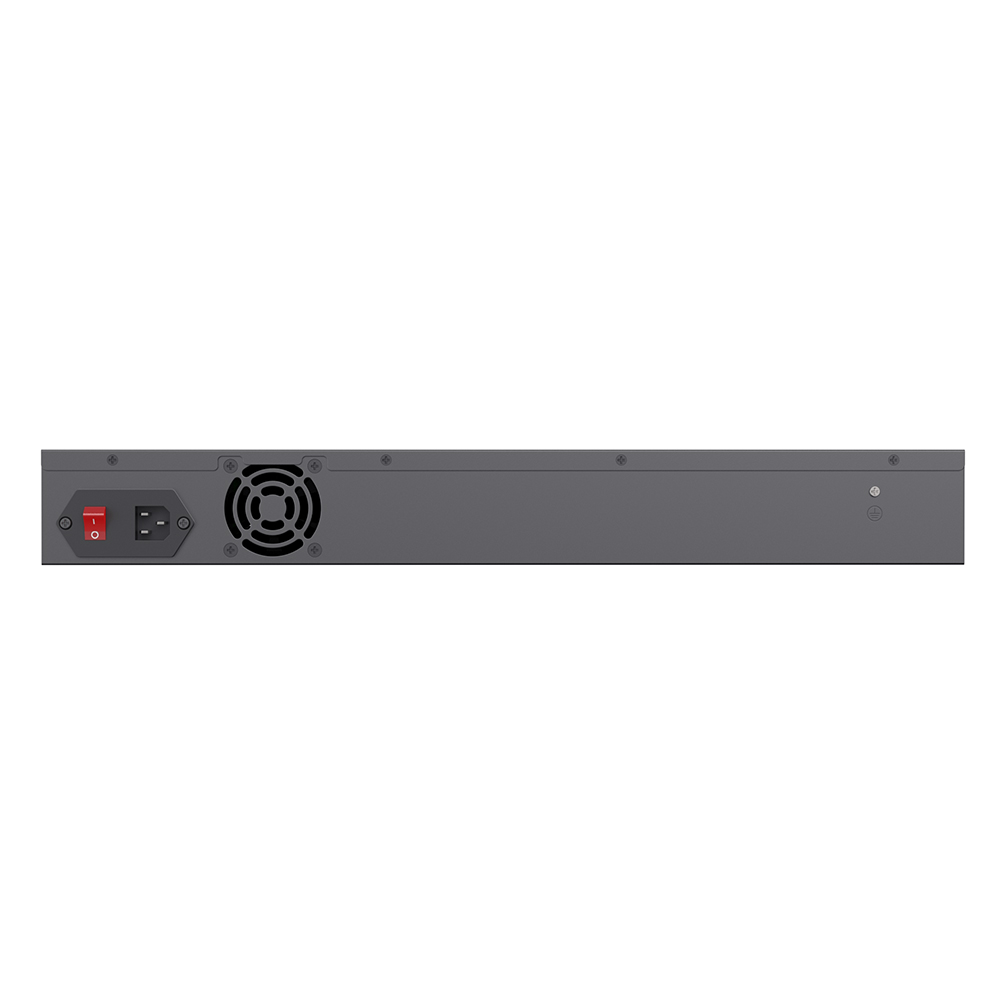

| Cooling Method | cooling fan+ventilation openings |
| Net Weight | 2796 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 20% to RH 90% |
| Storage Humidity | R10% - RH95% |
Additional Specifications
| Type-C | 5V/3A,9V/3A,12V/2.5A,15V/2A,20V/1.5A PPS:3.3V~11V/3A,PPS:3.3V~16V/2A |
Package Contents
- C-165PD product unit - 1
- Power cord - 1 (power supply built into the charger)
- Mounting brackets - 1 pair
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the C-165PD designed for?
The C-165PD is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
