Charging Station

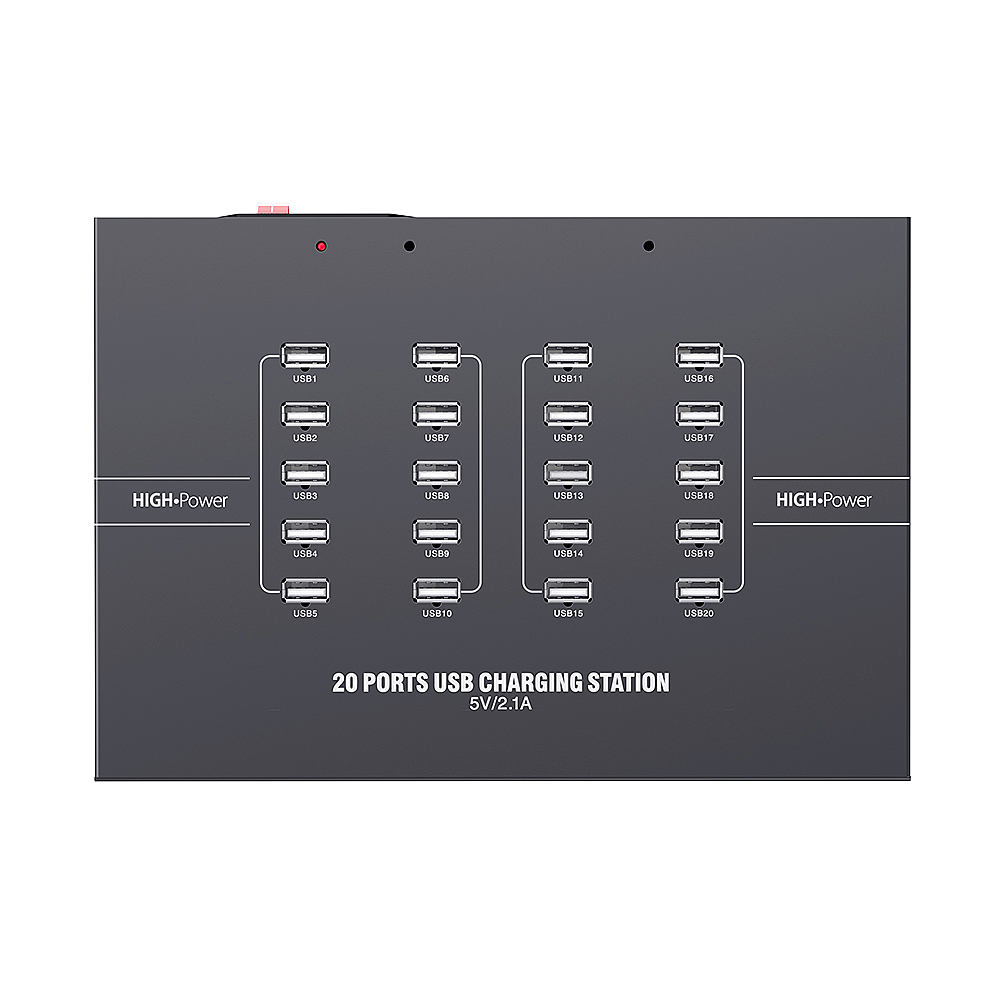

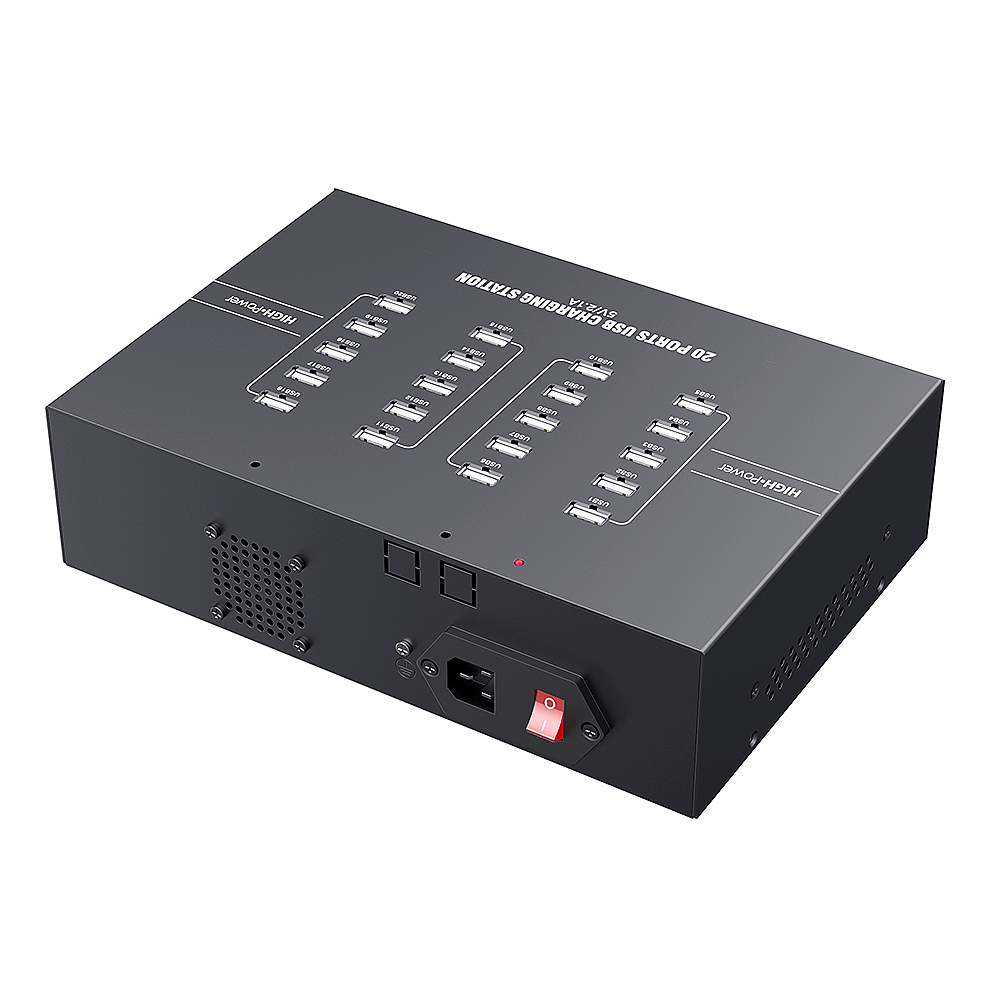

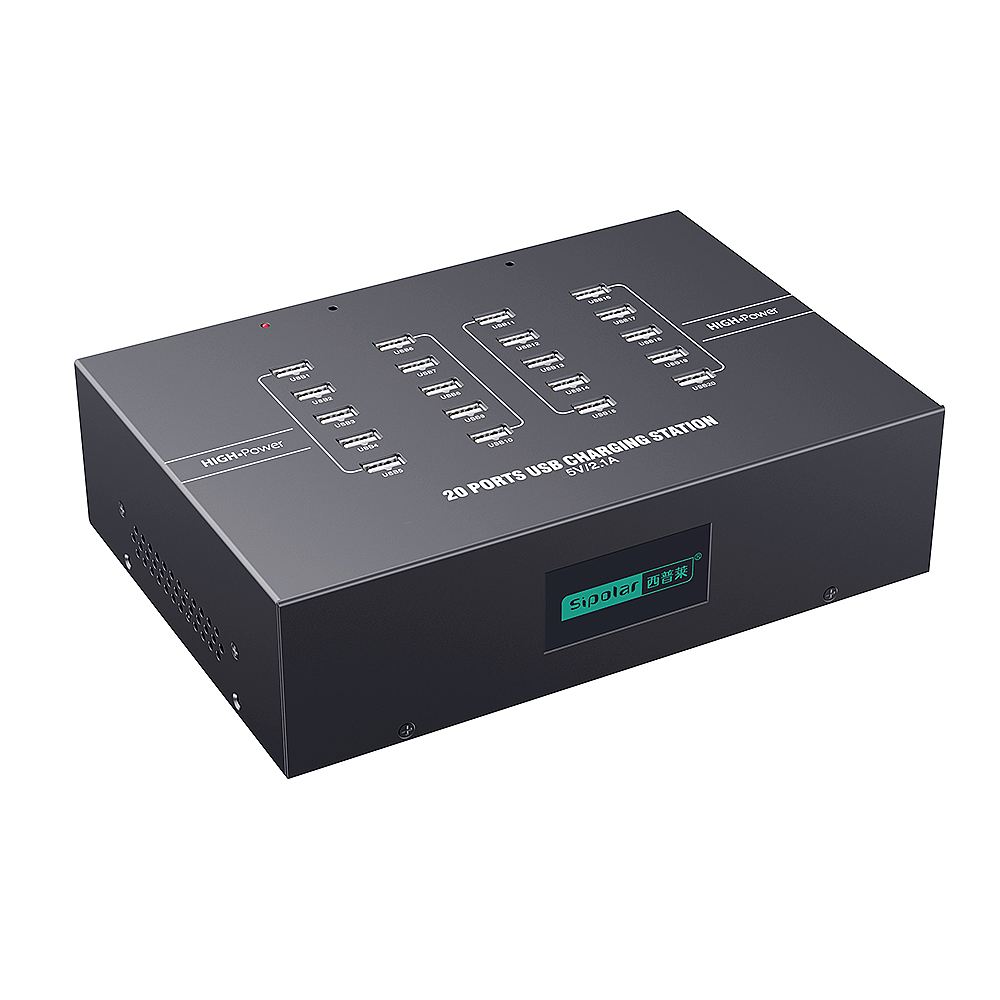

C-220 USB Charging Station
Model: Sipolar C-220
Confirm the port configuration before ordering. Contact Sipolar.
C-220 USB Charging Station | DC 5V/40A | Input voltage:110VAC/220VACselectable by switch Frequency:50/60Hz Input current:100-120VAC/4.0A,200-240VAC/2.0A | Contact us for configuration details
- DC 5V/40A input power details
- Output details: per-port rated voltage:5.0V+/-5% per-port rated output current:2.1A
- over-current protection; short-circuit protection
- data connection indicator(green)/power indicator(red)
Product Description
The Sipolar C-220 is a USB charging station for shared device charging, service counters and deployment rooms.
Its DC 5V/40A power design and Cold-rolled steel housing; Mounting flanges. Check enclosure dimensions, cable access and mounting clearances for your charging installation.
Technical Specifications
Product Information
| Model | Sipolar C-220 |
| Product Type | Charging Station |
| Product Name | C-220 USB Charging Station |
| LED Indicators | data connection indicator(green)/power indicator(red) |
Power & Electrical
| Power Interface | Input voltage:110VAC/220VACselectable by switch Frequency:50/60Hz Input current:100-120VAC/4.0A,200-240VAC/2.0A |
| Input Electrical Characteristics | DC 5V/40A |
| Output Electrical Characteristics | per-port rated voltage:5.0V+/-5% per-port rated output current:2.1A |
| Charging Protocol | BC1.2,Apple,Samsung |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :236.4 x 163.3 x 64mm |
| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount |
| Cooling Method | Temperature-controlled cooling fan and ventilation openings |
| Net Weight | 1912 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Package Contents
- C-220 product unit - 1
- Power cord - 1 (power supply built into the charger)
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the C-220 designed for?
The C-220 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
