Charging Station
C-402 10-Port USB Charging Station
Model: Sipolar C-402
Confirm the supplied power adapter and power cord quantities before ordering. Contact Sipolar.
C-402 10-Port USB Charging Station | DC 9-24V(default power adapter12V x 10A) | DC 5.5 x 2.1mm | wall-mount ears
- DC 9-24V(default power adapter12V x 10A) input power details
- Output details: 5 V / 2.1 A maximum per port
- over-voltage protection; overload protection; short-circuit protection; backfeed prevention; USB port overload and short-circuit protection
- power indicator(red)
Product Description

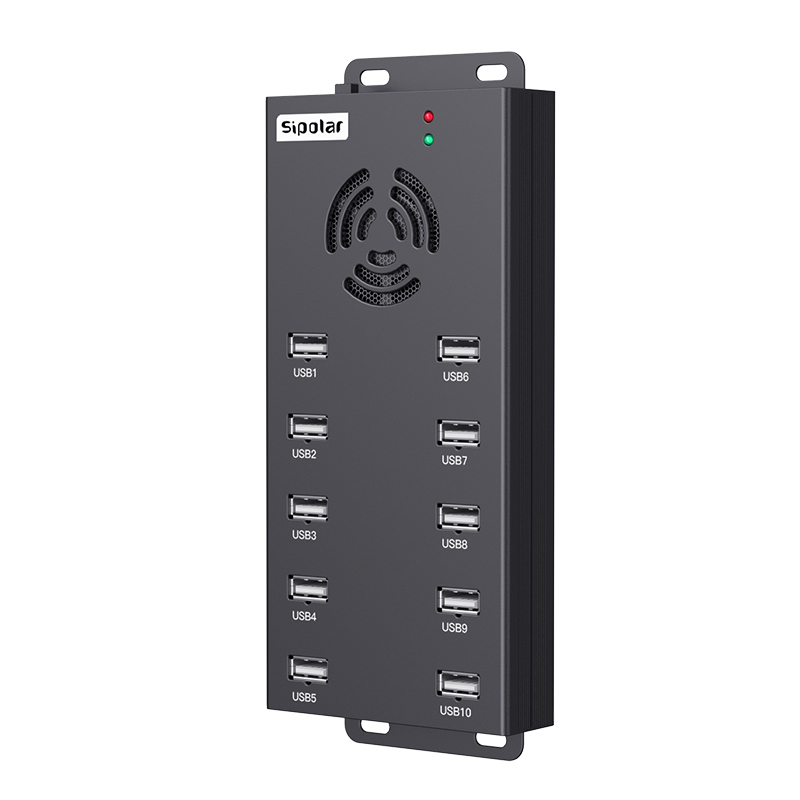

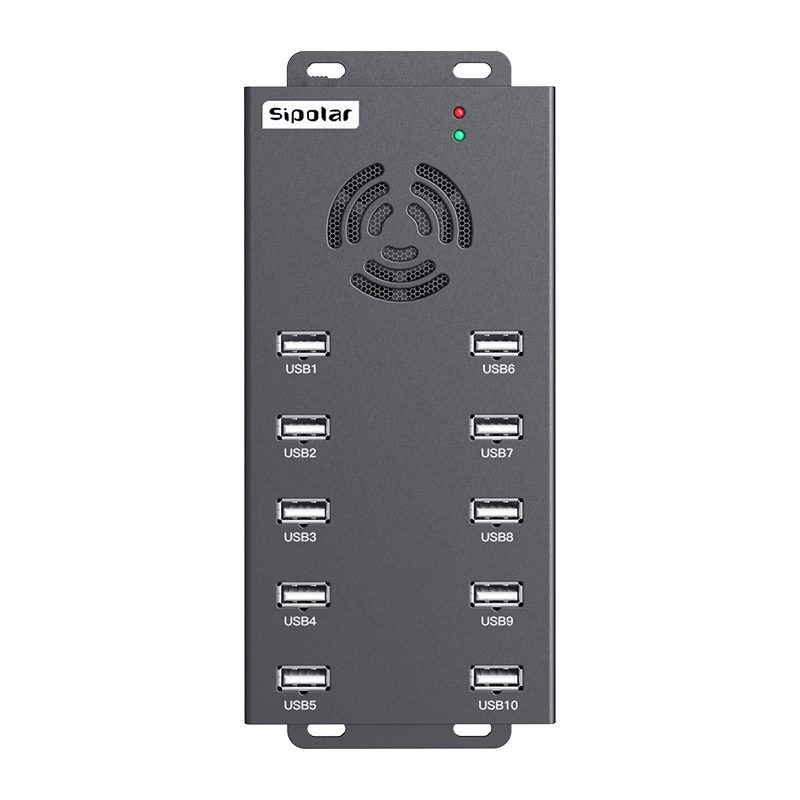

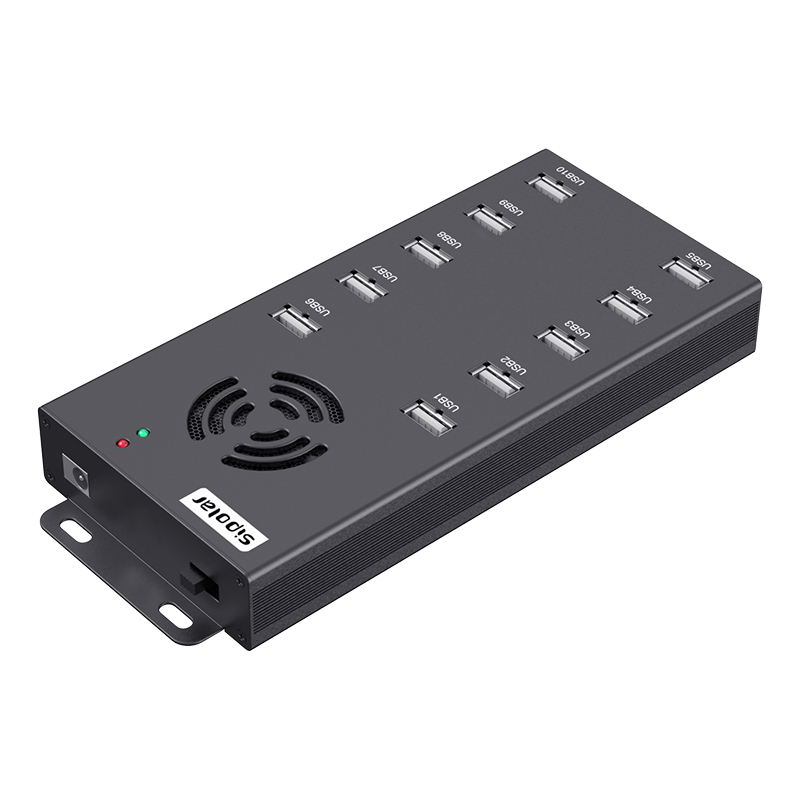

The Sipolar C-402 is a 10-port USB charging station for shared device charging, service counters and deployment rooms.
Its DC 9-24V(default power adapter12V x 10A) power design and Black extruded aluminum housing; Mounting flanges. Check enclosure dimensions, cable access and mounting clearances for your charging installation.
Technical Specifications
Product Information
| Model | Sipolar C-402 |
| Product Type | Charging Station |
| Product Name | C-402 10-Port USB Charging Station |
| Downstream Port Count | 10 |
| LED Indicators | power indicator(red) |
Power & Electrical
| Power Interface | DC 5.5 x 2.1mm |
| Input Electrical Characteristics | DC 9-24V(default power adapter12V x 10A) |
| Output Electrical Characteristics | 5V/2.1A(single-port maximum) |
| Charging Protocol | BC1.2,Apple,Samsung |
| Protection | over-voltage protection; overload protection; short-circuit protection; backfeed prevention; USB port overload and short-circuit protection |
Physical
| Dimensions (L x W x H) | :190 x 80.6 x 23.94mm |
| Housing Material | Black extruded aluminum |
| Mounting Style | wall-mount ears |
| Cooling Method | Temperature-controlled cooling fan and ventilation openings |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Additional Specifications
| Charging Interface | USB-A x 10 |
Package Contents
- C-402 product unit - 1
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the C-402 designed for?
The C-402 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
