Industrial USB Hub

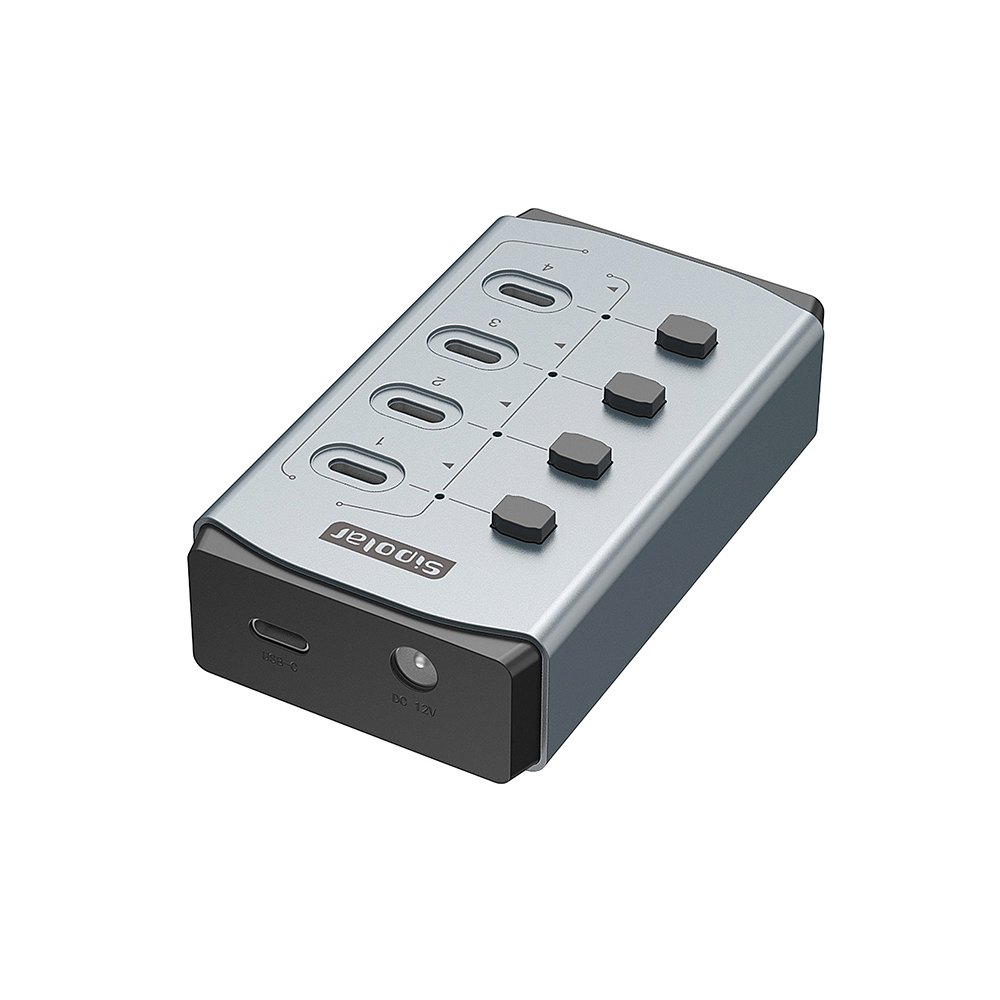

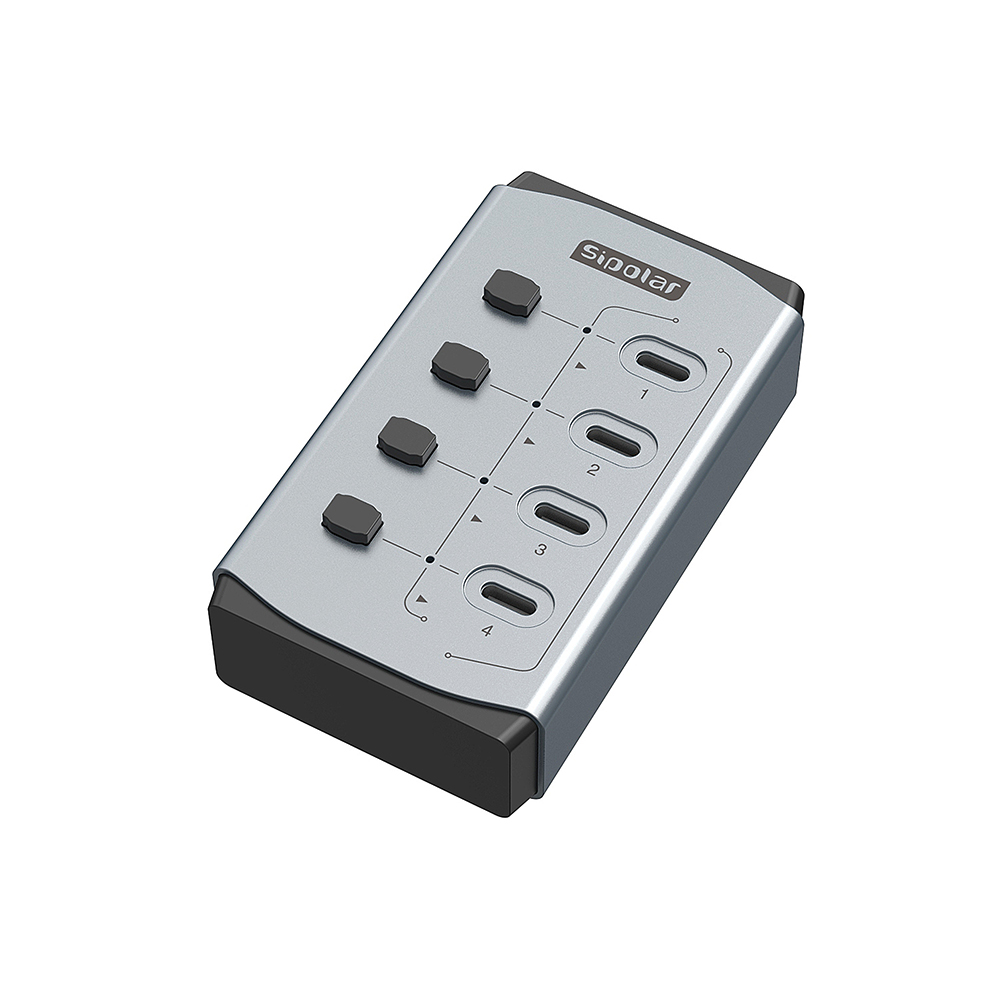

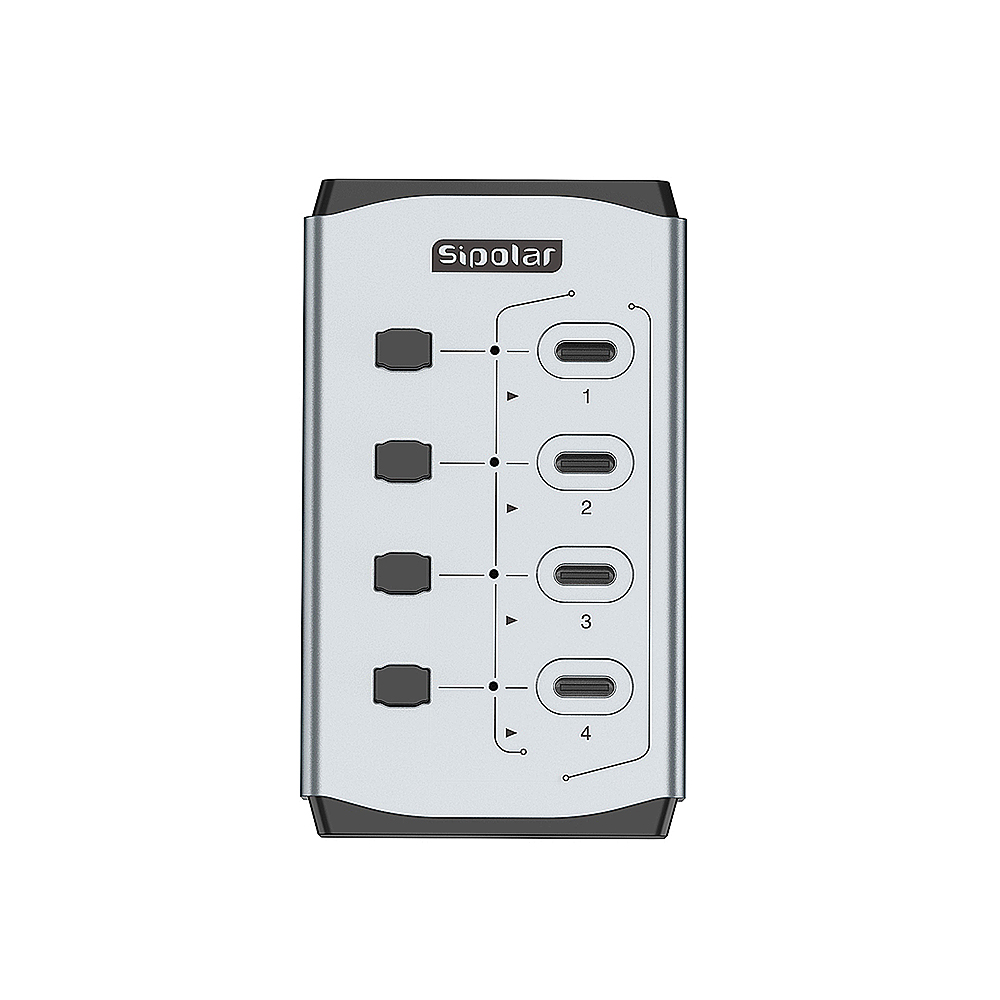

FS-806 4-Port USB-C 3.0 Hub
Model: Sipolar FS-806
FS-806 4-Port USB-C 3.0 Hub | Up to 5Gbps | DC 9-24V | DC 5.5 x 2.1mm
- Up to 5Gbps data transfer performance
- DC 9-24V input power details
- Output details: 5.0 V +/- 5%; maximum 5 V / 2 A per port
- over-current protection; short-circuit protection
Product Description
The Sipolar FS-806 is a 4-port USB-C 3.0 hub for equipment integration and test benches. The specified USB data rate is up to 5 Gbps. Check host compatibility and peripheral power needs for your complete setup.
DC 9-24V power details and Extruded aluminum housing; Desktop installation. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar FS-806 |
| Product Type | Industrial USB Hub |
| Product Name | FS-806 4-Port USB-C 3.0 Hub |
| USB Specification | USB 3.0 |
| Downstream Port Count | 4 |
| Data Interface | upstream :USB-C 3.0 downstream :USB-C 3.0 x 4 |
| Transfer Rate | Up to 5Gbps |
| LED Indicators | Blue power indicator |
Power & Electrical
| Power Interface | DC 5.5 x 2.1mm |
| Input Electrical Characteristics | DC 9-24V |
| Output Electrical Characteristics | Per-port rated voltage: 5.0V+/-5% single-port maximum output: 5V/2A |
| Charging Protocol | BC1.2,Apple,Samsung |
| Protection | over-current protection; short-circuit protection |
Physical
| Dimensions (L x W x H) | :94 x 55 x 24 mm |
| Housing Material | Extruded aluminum |
| Mounting Style | desktop |
| Net Weight | 95 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 5% to RH 90% |
| Operating Altitude | 2 km or below |
Compatibility
| Supported OS | Windows XP, Windows 7, Windows 8, Windows 10, Windows 11; macOS 10.12 and above; Linux, Ubuntu 16.04 and above |
| Driver Required | Windows installs the required USB hub driver automatically, as described in the user manual. |
Package Contents
- FS-806 product unit - 1
- USB 3.0 cable - 1
- User manual - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the FS-806 designed for?
The FS-806 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year limited warranty
