USB Management Workstation

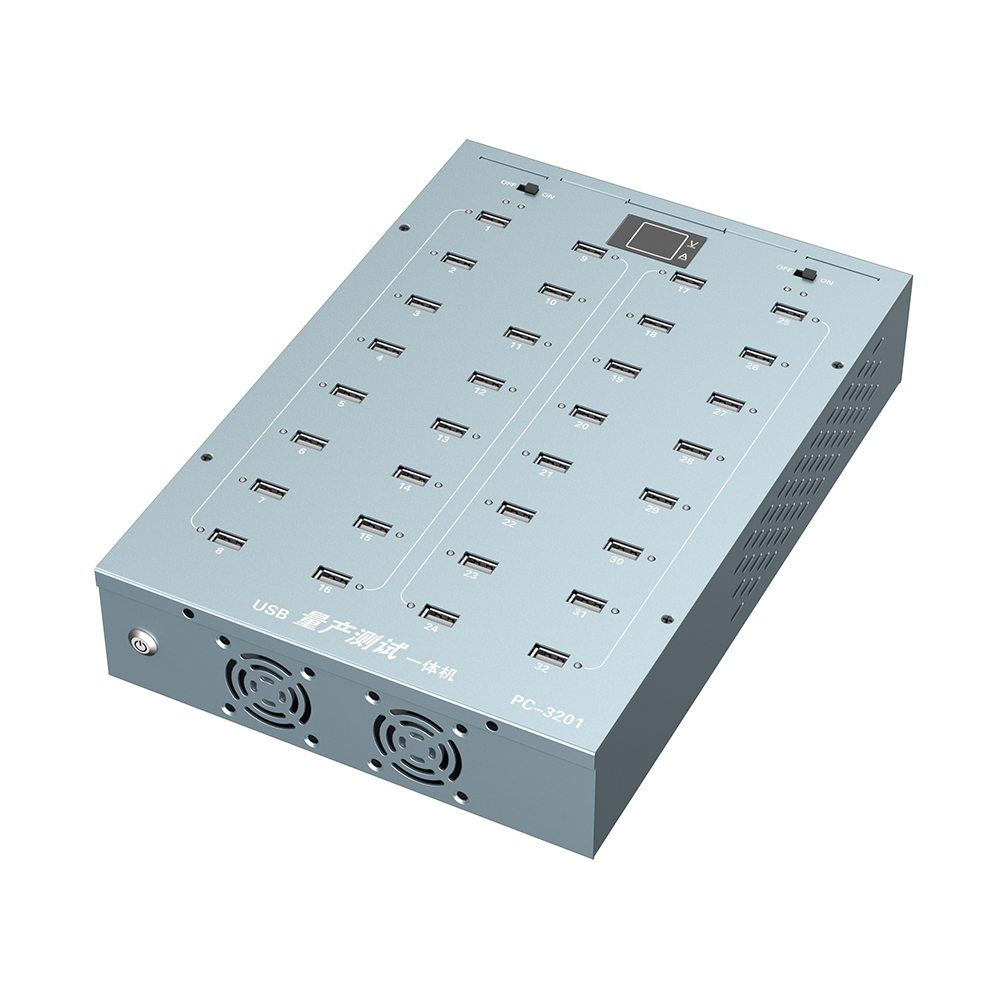

PC-3201 USB Management Workstation
Model: Sipolar PC-3201
Confirm the processor, memory and storage configuration before ordering. Contact Sipolar.
PC-3201 USB Management Workstation | Contact us for configuration details
- Configuration details should be confirmed before final procurement
Product Description
The Sipolar PC-3201 is a USB management workstation with USB 2.0 test interfaces for multi-device service benches and test setups.
Computer, storage, network and interface details are summarized below to help integrators confirm system fit and procurement requirements.
Technical Specifications
Product Information
| Model | Sipolar PC-3201 |
| Product Type | USB Management Workstation |
| Product Name | PC-3201 USB Management Workstation |
| USB Specification | USB 2.0 (front test ports) |

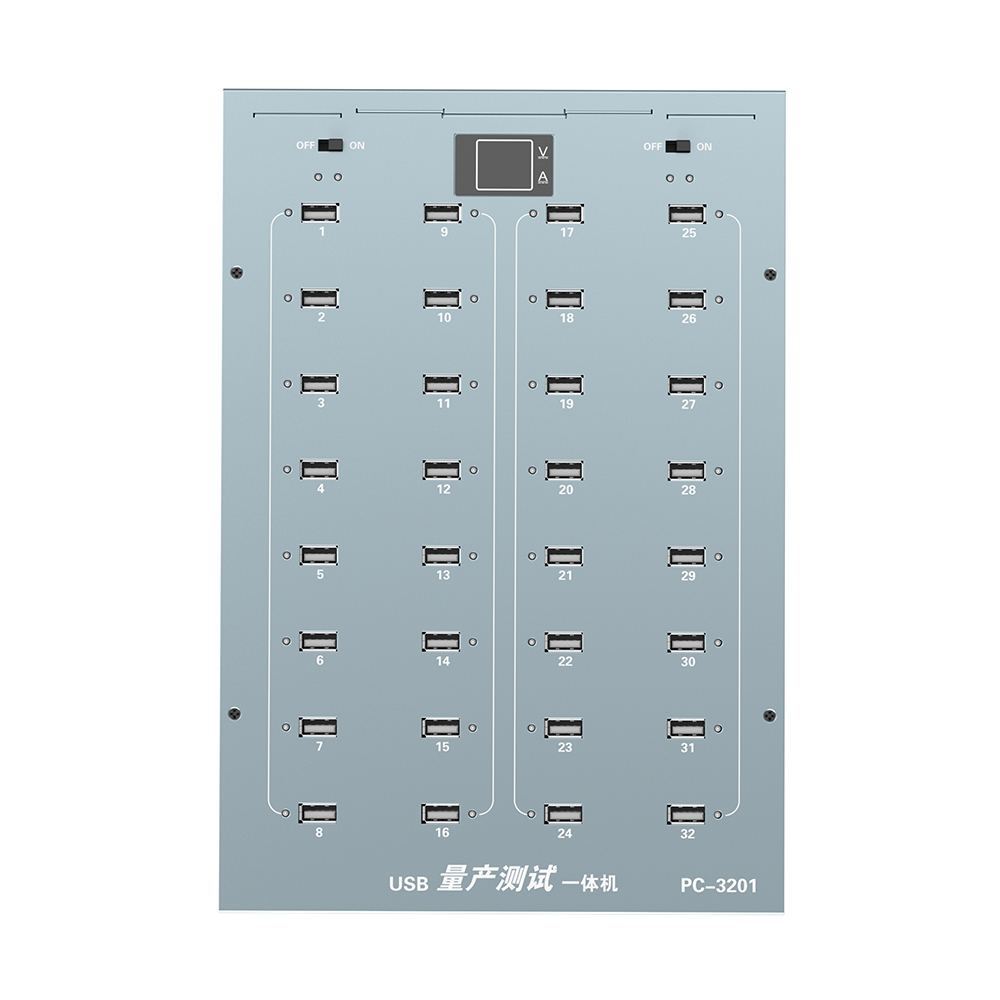

| Downstream Port Count | 32 |
| Transfer Rate | Up to 480 Mbps (front test ports) |
| LED Indicators | Port status: green for normal operation, red for over-current or short circuit; red hub power indicator; blue hub data-connection indicator. |
Power & Electrical
| AC Input | 100-240V~50/60Hz, 2Amax |
| Output Interface | DC12V 6A 5.5-2.5mm |
Physical
| Power Adapter Dimensions | L140.7 x W60.5 x H34.9mm; +/-1mm |
| Product Dimensions | L336.5 x W230 x H65mm; +/-2mm |
Environmental
| Operating Temperature | 0 to 40 deg C |
| Operating Altitude | 2 kmbelow |
| Storage Temperature | -40 to 75 deg C |
| Operating Humidity | 20% to 90% RH, non-condensing |
| Storage Humidity | 10% to 95% RH, non-condensing |
Additional Specifications
| Mainboard | Intel HM76 |
| GPU | Intel HD |
| Ethernet | 1000Mbps |
| Display Outputs | HDMI x 1.VGA x 1 |
| Test Interface | USB2.0(480Mbps) x 32 USB1.1 USB1.0 |

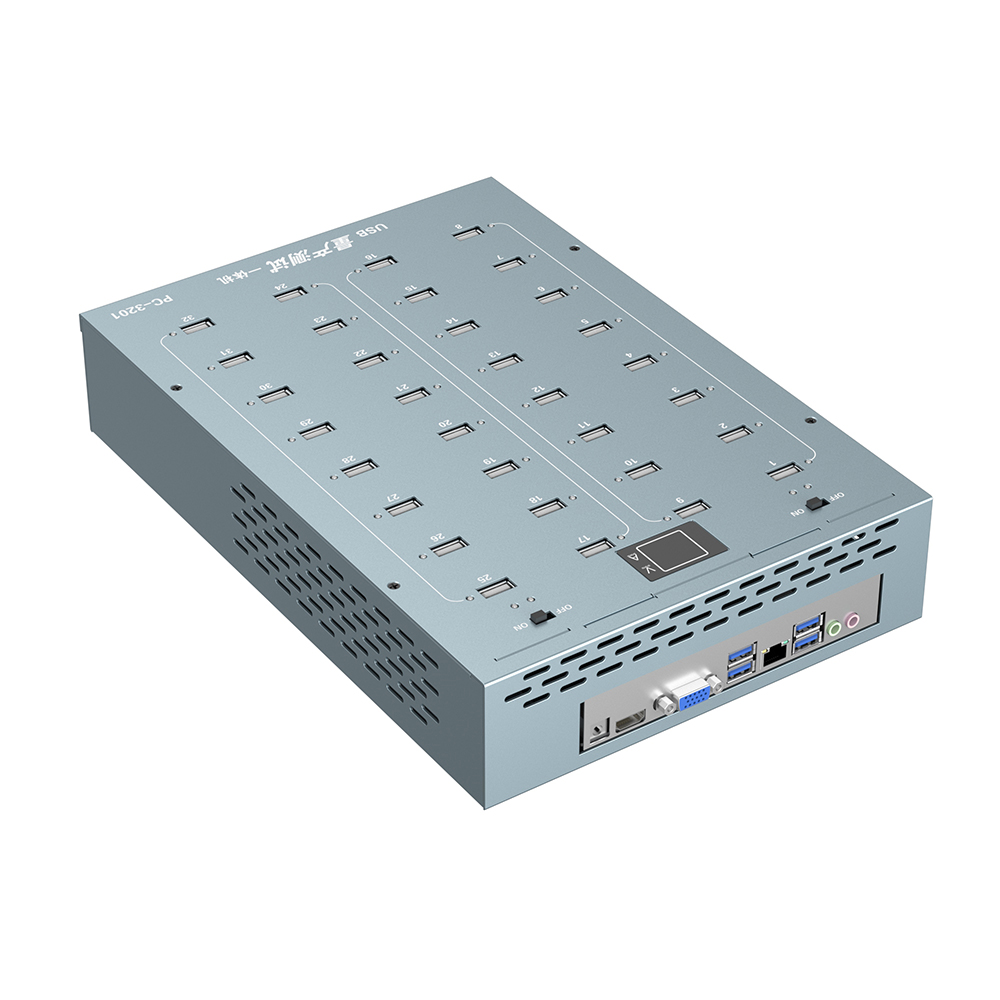

| Rear I/O | 1×DC_IN、1×HDMI、1×VGA、1×LAN、4×USB3.0、1×LINE-OUT、1×MIC-IN |
| Panel | over-current protection; short-circuit protection; USB port overload and short-circuit protection |
| Idle Power Consumption | ＜2W |
Package Contents
- PC-3201 product unit - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the PC-3201 designed for?
The PC-3201 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
