USB Management Workstation

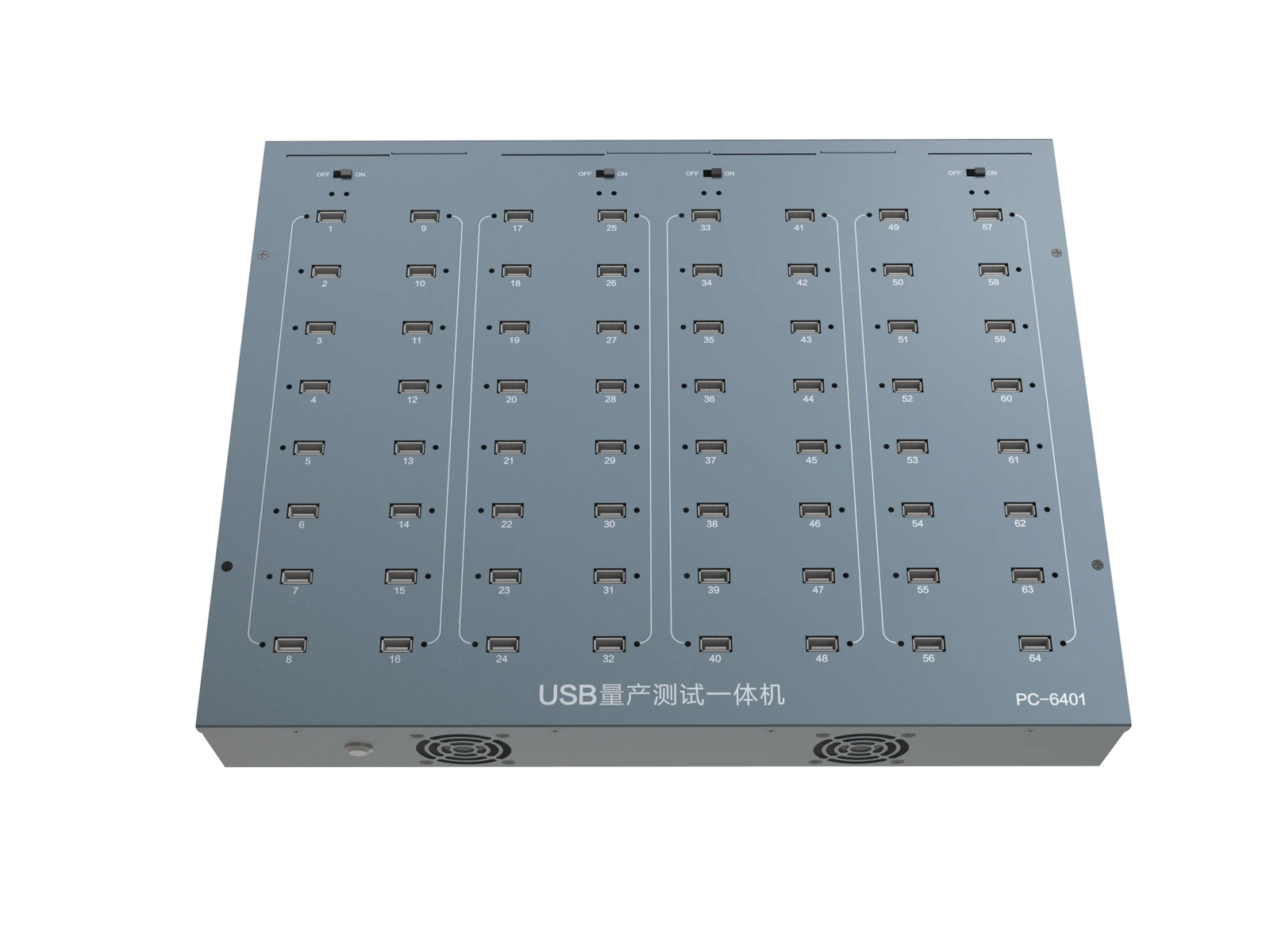

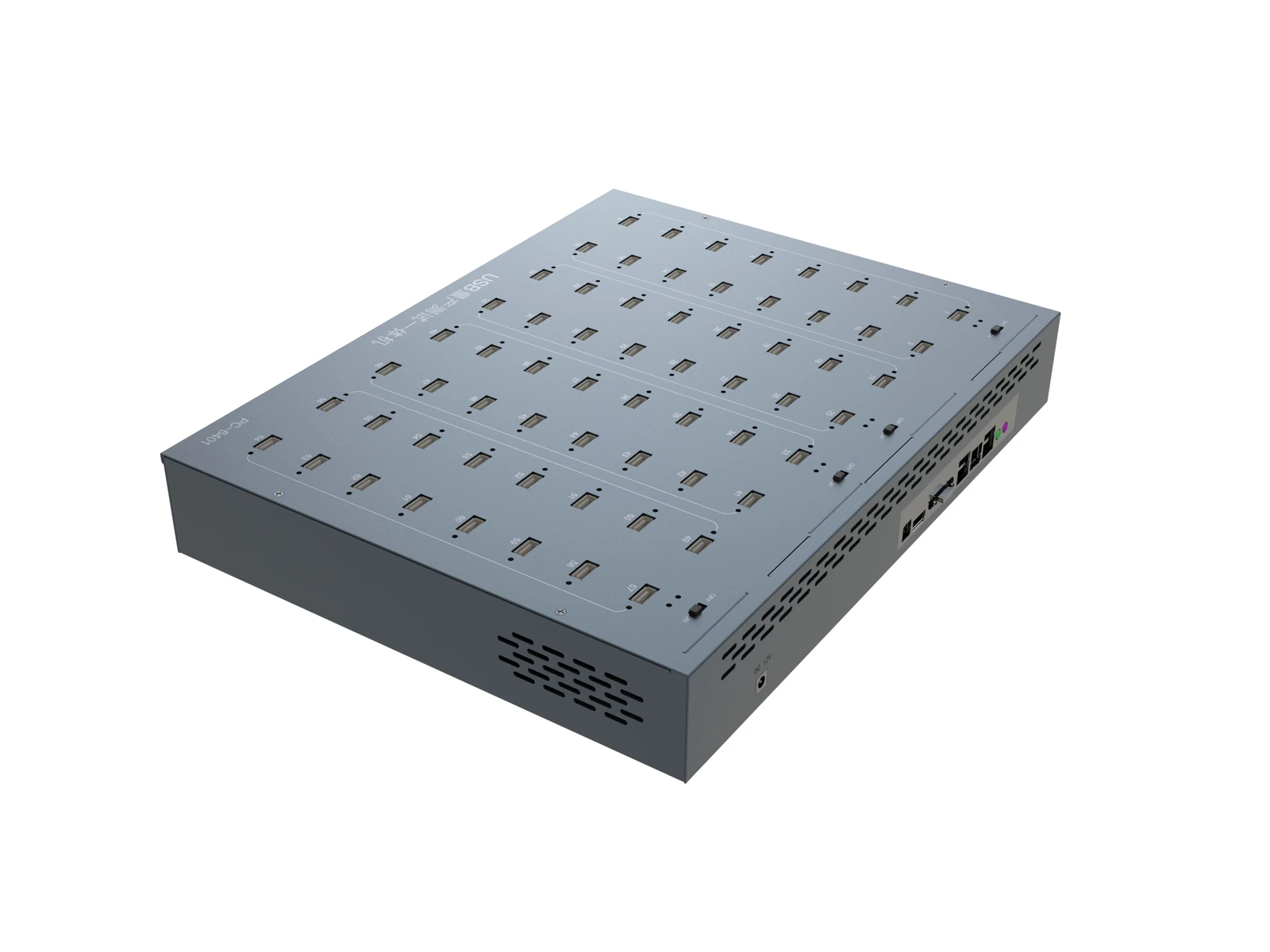

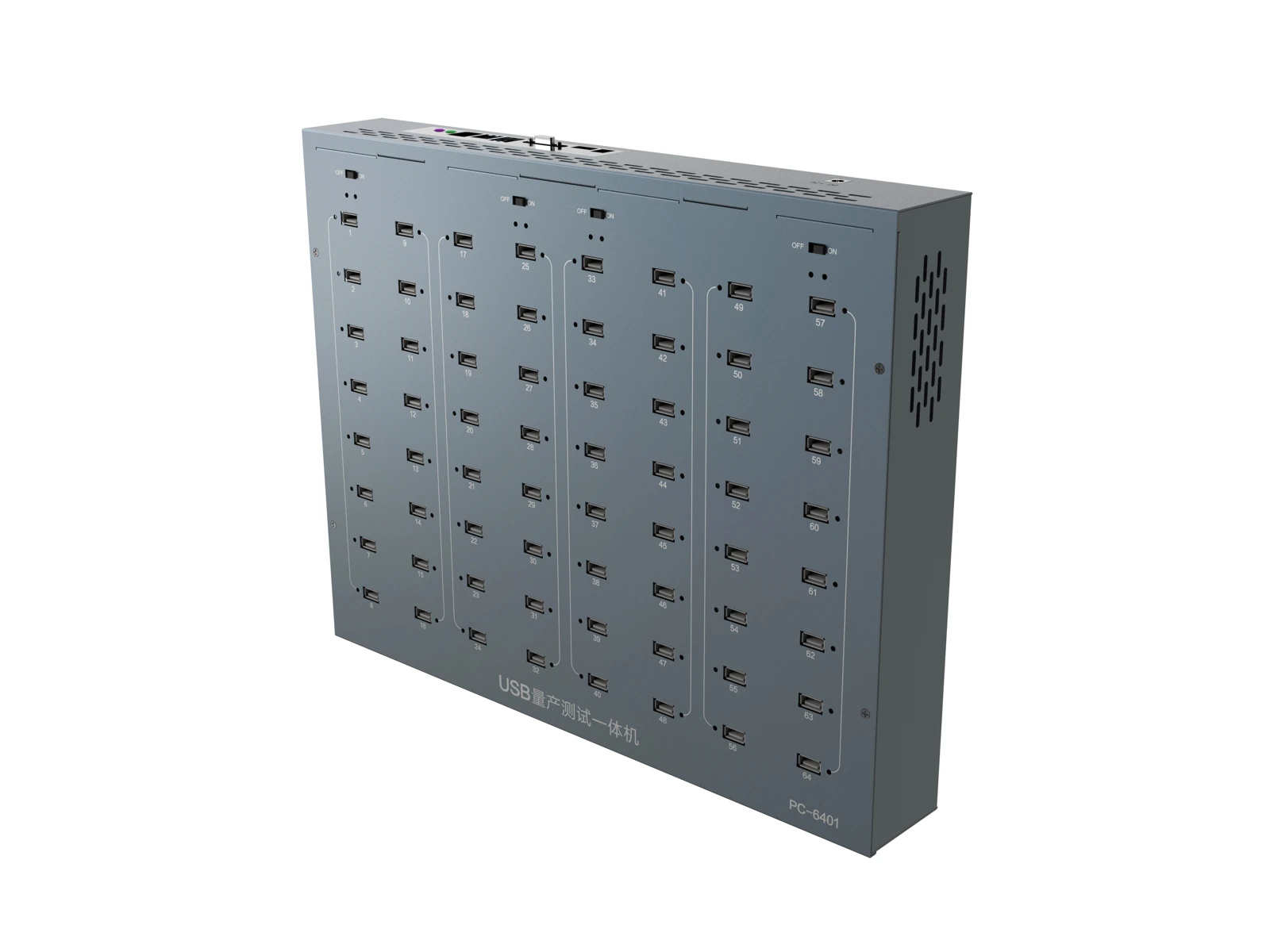

PC-6401 USB Management Workstation
Model: Sipolar PC-6401
PC-6401 USB Management Workstation | Contact us for configuration details
- Configuration details should be confirmed before final procurement
Product Description
The Sipolar PC-6401 is a USB management workstation with USB 2.0 test interfaces for multi-device service benches and test setups.
Computer, storage, network and interface details are summarized below to help integrators confirm system fit and procurement requirements.
Technical Specifications
Product Information
| Model | Sipolar PC-6401 |
| Product Type | USB Management Workstation |
| Product Name | PC-6401 USB Management Workstation |
| USB Specification | USB 2.0 (front test ports) |
| Downstream Port Count | 64 |
| Transfer Rate | Up to 480 Mbps (front test ports) |
| LED Indicators | Port status: green for normal operation, red for over-current or short circuit; red hub power indicator; blue hub data-connection indicator. |
Power & Electrical
| AC Input | 100-240V~50/60Hz, 2.5Amax |
| Output Interface | DC12V/10A |
Physical
| Product Dimensions | L430 x W336.5 x H65mm |
Environmental
| Operating Temperature | 0 to 40 deg C |
| Operating Altitude | 2 kmbelow |
| Storage Temperature | -40 to 75 deg C |
| Operating Humidity | 20% to 90% RH, non-condensing |
| Storage Humidity | 10% to 95% RH, non-condensing |
Compatibility
| Supported OS | Windows (see the supplied system installation guide). |
Additional Specifications
| Mainboard | Intel HM76 |
| CPU | Intel(R) Core(TM) i5-3210m 2.5G CPU |
| GPU | Intel® HD Graphics |
| Memory | 8GB |
| Ethernet | 1000Mbps |
| Display Outputs | HDMI x 1.VGA x 1 |
| Test Interface | USB2.0(480Mbps) x 64 USB1.1 USB1.0 |
| Rear I/O | 1×DC_IN、1×HDMI、1×VGA、1×LAN、2×USB3.0、1×LINE-OUT、1×MIC-IN |
| Panel | over-current protection; short-circuit protection; USB port overload and short-circuit protection |
| Idle Power Consumption | ＜13W |
Package Contents
- PC-6401 product unit - 1
Contact us to confirm the supplied accessories for your order.
Frequently Asked Questions
What type of project is the PC-6401 designed for?
The PC-6401 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
Warranty
3-year warranty; USB connector wear and user-caused damage are excluded.
