Industrial USB Hub

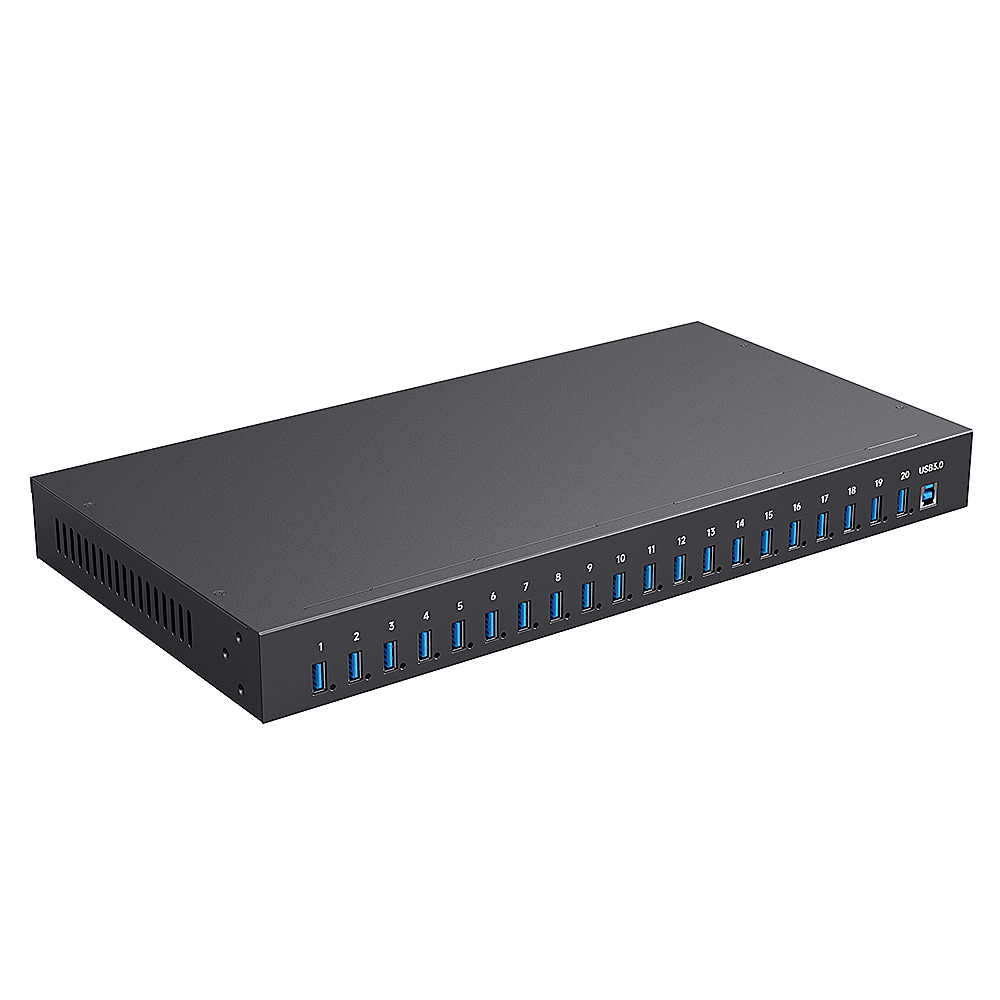

SH3-20 20-Port USB 3.0 Charging Hub
Model: Sipolar SH3-20
Contact Sipolar for the indicator light meanings for your unit. Contact Sipolar.
SH3-20 20-Port USB 3.0 Charging Hub | 5Gbps | DC 5V/40A | Contact us for configuration details
- 5Gbps data transfer performance
- DC 5V/40A input power details
- Output details: 5 V / 2.1 A maximum per port
- over-current protection; short-circuit protection
Product Description
The Sipolar SH3-20 is a 20-port USB 3.0 charging hub for equipment integration and test benches. The specified USB data rate is 5 Gbps. Check host compatibility and peripheral power needs for your complete setup.
DC 5V/40A power details and Cold-rolled steel housing; Mounting flanges. Check enclosure dimensions, connector access and mounting clearances against your installation.
Technical Specifications
Product Information
| Model | Sipolar SH3-20 |
| Product Type | Industrial USB Hub |
| Product Name | SH3-20 20-Port USB 3.0 Charging Hub |
| USB Specification | USB 3.0 |
| Downstream Port Count | 20 |
| Transfer Rate | 5Gbps |
Power & Electrical

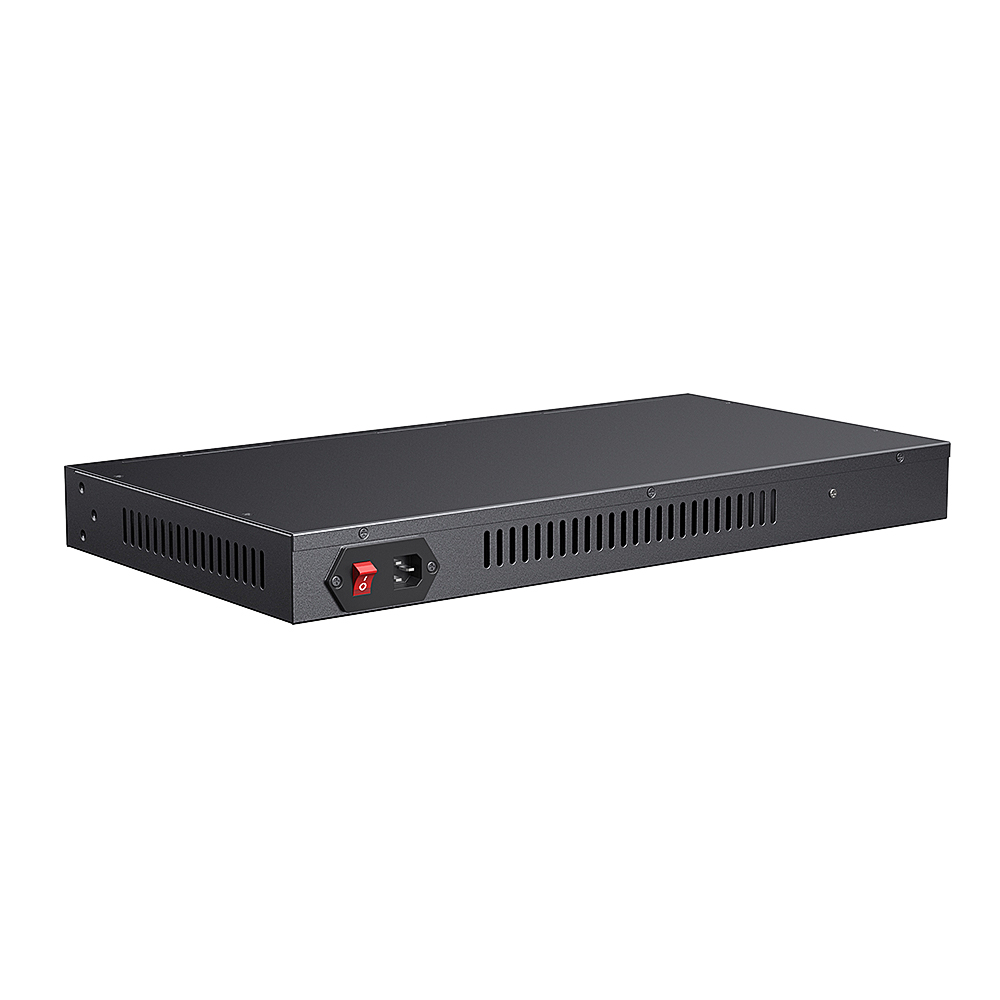

| AC Input | 100-120VAC /4.0A 50/6Hz 200-240VAC /2.0A 50/6Hz |
| Input Electrical Characteristics | DC 5V/40A |

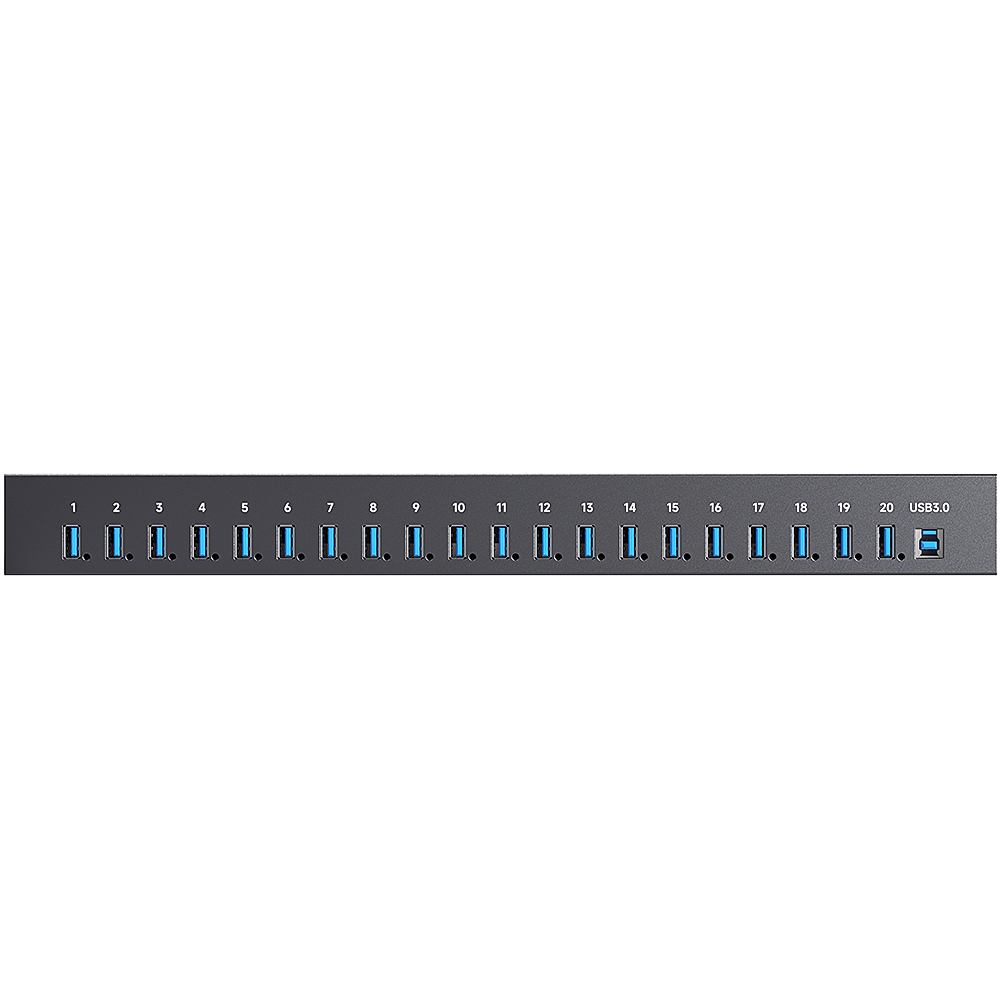

| Output Interface | 1 x USB3.0 B 20 x USB3.0 A |
| Output Electrical Characteristics | 5V/2.1A(single-port maximum) |
| Charging Protocol | BC1.2,Apple,Samsung |
| Protection | over-current protection; short-circuit protection |
| USB Port Control | ON/OFF |
Physical
| Dimensions (L x W x H) | :440 x 232 x 45 mm |
| Mechanical Structure | Housing: cold-rolled steel; Mounting: ear-mount |
| Net Weight | 2548 g +/- 5 g |
Environmental
| Operating Temperature | -25°C to 80°C |
| Operating Humidity | RH 10% to RH 90% |
| Storage Humidity | R10% - RH90% |
Compatibility
| Supported OS | Windows 7 and Windows 10 (driver requirements differ). |
| Driver Required | Windows 10: no manual driver installation; Windows 7: CH340G driver required. |
Package Contents
- SH3-20 product unit - 1
- Power cord - 1 (power supply built into the hub)
- USB 3.0 data cable - 1
- Mounting brackets - 1 pair
- User manual - 1
Frequently Asked Questions
What type of project is the SH3-20 designed for?
The SH3-20 is intended for professional USB, charging or power distribution projects where port count, power configuration and installation style need to be checked before ordering.
Are all accessories confirmed?
Confirmed accessories and quantities are listed under Package Contents. Optional items are marked separately.
Can Sipolar support OEM or project requirements?
Contact Sipolar with port count, voltage, mounting and document requirements for project-specific confirmation.
